Add to Cart
$539.99

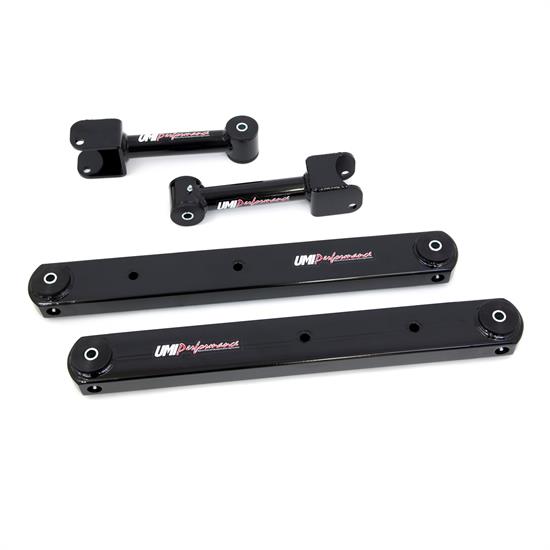

UMI 402116-B 68-72 A-Body Rear Control Arms, Boxed Lowers, Black
UMI 402116-B 68-72 A-Body Rear Control Arms, Boxed Lowers, Black

UMI 402116-B 68-72 A-Body Rear Control Arms, Boxed Lowers, Black

Rear Upper and Lower Position, Tubular and Boxed Control Arm Style, Steel

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 402116-B 68-72 A-Body Rear Control Arms, Boxed Lowers, Black
UMI 402116-B 68-72 A-Body Rear Control Arms, Boxed Lowers, Black
UMI 402116-B 68-72 A-Body Rear Control Arms, Boxed Lowers, Black
X
UMI 402116-B 68-72 A-Body Rear Control Arms, Boxed Lowers, Black
Zoomed In Image
We estimate this item will ship on or before October 13th.
Part # 185402116B
$539.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Rear Upper and Lower
Control Arm Style:
Tubular and Boxed
Material Type:
Steel
Adjustable:
No
Bushing Material:
Polyurethane
Ball Joint Included:
No
Bushing Included:
Yes
Hardware Included:
No
Finish:
Powder Coated
Color:
Black
MFG. Part #:
402116-B
Sold in Quantity:
Set

Info

UMI’s premium boxed lower control arms are fully boxed to offer the factory look while still providing enhanced performance to the vehicle. Our premium factory arms are built from larger 3” x 1-1/2” rectangular tubing and feature CNC machined radius ends and bushing holders. Boxed control arms include fully capped radius ends to prevent debris from entering to arm while offering the factory look to your classic. Suitable for street, strip or corner carving, these arms minimize suspension deflection for a crisp handling setup and reduce wheel hop. Sway bar mounting holes are reinforced with TIG welded sleeves to allow factory style sway bar mounting, including UMI’s popular 1” version. Boxed control arms are assembled with greaseable polyurethane bushings for a quiet comfortable ride. Choose black powder coat to get the factory looking control arm you’ve been seeking. Features

3” x 1-1/2” x 1/8” wall large mild steel rectangular tubing

Fully boxed design uses nicely capped ends to maintain factory look

CNC machined for accuracy and consistency

MIG welded heavy duty bushing holders

Greaseable polyurethane bushings with zinc plated sleeves

Durable and long lasting powder coat finish

Made in Philipsburg, PA – USA

Installation: Item installs in approximately one hour using basic hand tools.

Charts

Installation Instructions (PDF)

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
