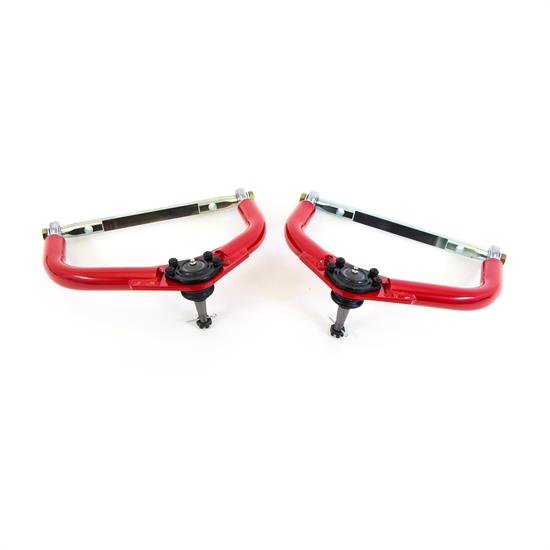

UMI 2656-1-R 70-81 F-Body Upper A-Arms, Front, Adjustable, Red
Front Upper Position, Tubular Control Arm Style, Steel, Chromoly Cross Pin Material
UMI’s 2nd Gen F-Body adjustable upper a-arms are race-worthy components equally at home on the street. Our P/N 2656-1 adjustable upper a-arms add caster to improve steering feel and reduce wandering while incorporating tall ball joints to aid cornering traction. UMI’s single adjustable rod end design allows for caster and camber adjustment with zero or minimal shimming. The strong tubular construction and 4140 Chromoly cross shaft gives peace of mind when road racing, drag racing or simply corner carving in the mountains. Available in UMI red or gloss black powder coat. 100% designed, manufactured and raced with pride in the USA.
Optional hardware kit: New hardware kit includes ½” Grade 8 bolts, washers and lock nuts for mounting both upper a-arms.
- Direct bolt-in for 1970-1981 GM F-Body.
- Adds 5 to 6 degrees of caster to improve steering feel and reduce wandering.
- Combine with UMI lower a-arms to gain 8 to 10 degrees of positive caster.
- Shorter than stock to reduce need for shims when using racing alignment settings.
- Camber range from negative 1/2 degree to negative 3 degrees.
- ½” Taller than stock ball joint to improve camber gain and enhance cornering traction.
- 1.250” USA Made DOM steel construction with 4140 threaded adapters.
- 4140 Chromoly cross shaft for strength
- Thick laser cut ball joint plate with high quality tall ball joint installed.
- Rod ends reduce stiction and allow easy movement for drag race reaction and consistent times
- Top choice for Pro-Tour style cars requiring excellent stability and great cornering performance.
- Great for race use while being street worthy.
- 100% manufactured in Philipsburg, PA – USA.
- This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
