#1852314R

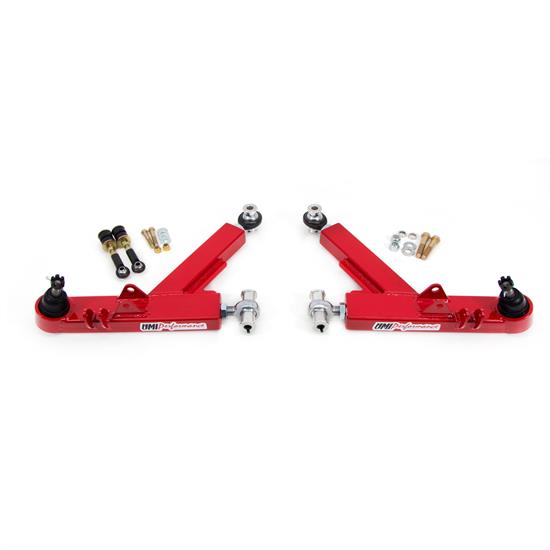

UMI 2314-R 93-02 F-Body Boxed Lower A-Arms, Rod Ends, Red
$749.99
/set
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
|
#1852314R
$749.99
/set
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
| Control Arm Style | Boxed |
| Position | Front Lower |
| Ball Joint Type | Bolt-in |
| Bushing Material | Spherical bearing |
| Control Arm Material | Steel |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyUMI’s heavy duty boxed lower a-arms P/N 2314 with dual rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4th Gen. The a-arms fully gusseted box tubing construction combines strength with a five pound weight savings per set over factory lower a-arms. Shock mounting is double shear with a ½” dia x 1-¼” width racing coilover mount – suitable for most racing coilover systems. Revised ball joint location adds a nominal 2 degrees caster increase. These arms have double shear sway bar mount tabs with endlink set included. P/N 2314 is designed to work with the factory K-member, UMI k-members, and virtually all aftermarket K-members. Crafted with pride in Philipsburg, PA - USA.
Hardware kit, Part # 2301-Lower a-arm hardware kit includes Grade 10.9 bolts, washers and lock nuts.
Features:
Charts
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 2314-R |
| Brand | UMI Performance |
| Control Arm Style | Boxed |
| Position | Front Lower |
| Ball Joint Type | Bolt-in |
| Bushing Material | Spherical bearing |
| Control Arm Material | Steel |
| Hardware Included | No |
| Adjustable | Yes |
| Finish | Powder Coated |
| GENERAL | |
| Material Type | Steel |
| Ball Joint Included | Yes |
| Color | Red |
| Sold in Quantity | Set |
| Bushing Included | No |
Be the first to ask a question.
1993-2002 Chevy Camaro
1993-2002 Pontiac Firebird
