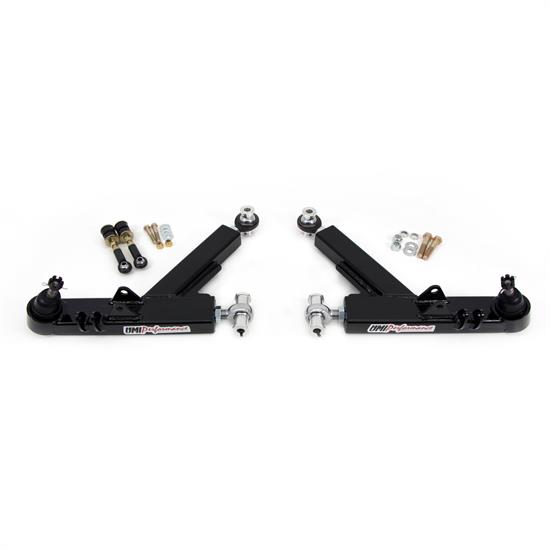

UMI 2314-B 93-02 F-Body Boxed Lower A-Arms, Rod Ends, Black
UMI 2314-B 93-02 F-Body Boxed Lower A-Arms, Rod Ends, Black

UMI 2314-B 93-02 F-Body Boxed Lower A-Arms, Rod Ends, Black

Front Lower Position, Boxed Control Arm Style, Steel

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 2314-B 93-02 F-Body Boxed Lower A-Arms, Rod Ends, Black
UMI 2314-B 93-02 F-Body Boxed Lower A-Arms, Rod Ends, Black
UMI 2314-B 93-02 F-Body Boxed Lower A-Arms, Rod Ends, Black
X
UMI 2314-B 93-02 F-Body Boxed Lower A-Arms, Rod Ends, Black
Zoomed In Image
We estimate this item will ship on or before October 2nd.
Part # 1852314B
$599.99
set
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front Lower
Control Arm Style:
Boxed
Material Type:
Steel
Adjustable:
Yes
Bushing Material:
Spherical bearing
Ball Joint Included:
Yes
Bushing Included:
No
Hardware Included:
No
Finish:
Powder Coated
Color:
Black
MFG. Part #:
2314-B
Sold in Quantity:
Set

Info

UMI’s heavy duty boxed lower a-arms P/N 2314 with dual rod ends provides a rock-solid foundation for your autocross, road race or corner carving 4th Gen. The a-arms fully gusseted box tubing construction combines strength with a five pound weight savings per set over factory lower a-arms. Shock mounting is double shear with a ½” dia x 1-¼” width racing coilover mount – suitable for most racing coilover systems. Revised ball joint location adds a nominal 2 degrees caster increase. These arms have double shear sway bar mount tabs with endlink set included. P/N 2314 is designed to work with the factory K-member, UMI k-members, and virtually all aftermarket K-members. Crafted with pride in Philipsburg, PA - USA.

Hardware kit, Part # 2301-Lower a-arm hardware kit includes Grade 10.9 bolts, washers and lock nuts.

Features:

  • 0.120” wall mild steel box tubing

  • ½” dia x 1-¼” width racing coilover mount

  • 5lbs lighter than factory a-arms

  • Double shear sway bar mount with endlink set included

  • Nominal 2 degree caster increase potential

  • Double gusset design for flex-free operation

  • TIG welded 4140 Chromoly threaded tube adapters

  • Premium ball joints installed

  • Race quality high misalignment rod end on vertical mount

  • CNC machined ball joint cups, tubing radiuses & mounting plates

  • Available in red or black powder coat

  • Uses OEM hardware or UMI P/N 2301

  • 100% Made In USA

  • Trusted by UMI Performance, Sam Strano, Nathan Popp, Wayne Furr, Mike Stewart

Charts

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
