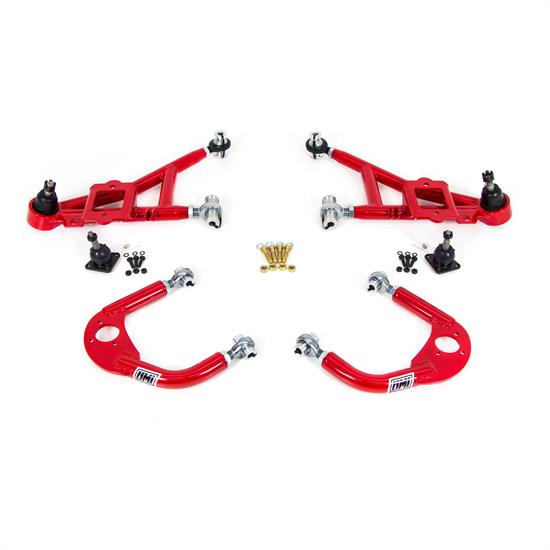

UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red

UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red

Front Upper and Lower Position, Tubular Control Arm Style, Steel

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
X
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
UMI 230010-R 93-02 F-Body Front A-Arm Kit, Adj., Drag, Red
Zoomed In Image
We estimate this item will ship on or before October 2nd.
Part # 185230010R
$909.99
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Position:
Front Upper and Lower
Control Arm Style:
Tubular
Material Type:
Steel
Adjustable:
Yes
Bushing Material:
Spherical bearing
Ball Joint Included:
Yes
Bushing Included:
No
Hardware Included:
No
Finish:
Powder Coated
Color:
Red
MFG. Part #:
230010-R
Sold in Quantity:
Kit

Info

UMI’s fabricated tubular a-arms provide a rock solid foundation for your 4th Gen’s front suspension. Our a-arm kit is built to offer increased rigidity, smooth non-binding travel, a precise steering feel, and an 8lb weight savings over stock. The DOM 1-1/4” diameter tubular sections are precision bent, CNC notched and TIG welded in a jig to form the solid base. In-house built 4130 Chromoly tube adapters provide a durable attachment point for the premium Teflon lined race quality rod ends. The spring and shock attach to the arm via a tough 1/4” thick steel shock mount. The CNC machined lower ball joint cup and CNC laser cut upper pad feature premium ball joints installed. UMI’s tubular lower a-arms can be installed on the factory k-member or any aftermarket k-member as well as the stock spindle- making this a true bolt-on product. Manufactured with pride in Philipsburg, PA – USA

Hardware kit P/N 2303-A-arm hardware kit includes Grade 10.9 bolts, washers and Ny-lock nuts. Kit includes everything needed to mount your new UMI a-arms to the vehicle.

Chromoly-Chromoly version uses 1-1/4” 4130 Chromoly tubing, maintaining strength and reducing product weight by an additional 2lbs giving a total weight reduction of 10lbs. P/N 230010CM.

Features:

  • 1-1/4” USA mild steel DOM tubing

  • TIG Welded 4130 Chromoly threaded tube adapters for thread durability

  • CNC machined lower ball joint cup

  • Heavy duty CNC laser cut ¼” thick shock mount

  • Premium upper and lower ball joints installed

  • ¾” Teflon lined, high load capacity race rod ends

  • High grade shock mounting hardware included

  • Uses balance of OEM hardware or use new UMI hardware kit

  • Durable red or black powder coat

  • Made in Philipsburg, PA – USA

Charts

Installation Instructions (PDF)

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
