#18520751B
UMI 2075-1-B 82-02 F-Body Rear Weight Jack, 175lb, Street, Black
$399.99
set
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before June 1st.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Conversion Suspension Kit Type, Weight Jack Spring Type
See more details
Key Specs
| Suspension Kit Type | Conversion |
| Suspension Height Adjustment | 0.0-2.5 Inch Lowered |
| Rear Coil Springs Included | Yes |
| Spring Type | Weight Jack |
| Spring Rate | 175 lbs. |
See more specs
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyUMI Performance 2075-1-B Details
UMI Performance 2075-1-B Details

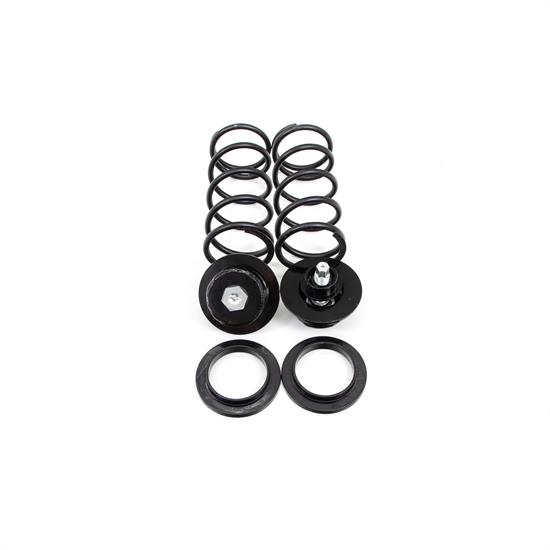

UMI's rear weight jacks provide ride height adjustment and excellent handling for your 3rd or 4th Gen GM F-Body. The kit includes custom wound premium race quality springs and our own unique spring perches featuring a smooth acting Torrington bearing. The heavy duty jack screw and spring pad is easily adjusted by using a 3/4" socket, extension and ratchet through the bottom of the existing hole in the axle. Installation requires simply removing the standard spring and inserting the weight jack assembly. Minor grinding required on left axle pad – instructions included. 100% Made In USA.
Fitment Note: Works with factory rear end housing and Strange Engineering brand rear housings only. Minor grinding required on left axle pad – instructions included.
Features:
- 175 lb/in recommended for daily driving and street corner carving.
- Springs are made from USA premium CrSi wire.
- UMI Torrington bearing load adjuster for smooth, easy ride height changes.
- Simple ride height adjustment with normal hand tools
- Tough UMI red or gloss black powder coat.
- Minor grinding required for installation – instructions included.
- Includes upper poly isolator to dampen road noise.
- Pairs nicely with UMI 2042UDF shock package.
- Designed, manufactured and raced out of Philipsburg, PA – USA.
Charts
Guides & Documents
UMI Performance 2075-1-B Specifications
UMI Performance 2075-1-B Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 2075-1-B |
| Brand | UMI Performance |
| Suspension Kit Type | Conversion |
| Suspension Height Adjustment | 0.0-2.5 Inch Lowered |
| Rear Coil Springs Included | Yes |
| Spring Type | Weight Jack |
| Spring Rate | 175 lbs. |
| Shocks Included | No |
| Bolt-On | Yes |
| Axle Housing Included | No |
| Rear Leaf Springs Included | No |
| Bushing Material | Polyurethane |
| Lower Trailing Arms Included | No |
| Upper Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | No |
| Hardware Included | No |
| Air Springs Included | No |
| Crossmember Included | No |
| Frame Brackets Included | No |
| Welding Required | No |
| Rear Sway Bar Included | No |
| End Link Bushings Included | No |
| Sway Bar Bushings Included | No |
| Panhard Bar Included | No |
| Torque Arm Included | No |
| Upper Control Arms Included | No |
| Lower Control Arms Included | No |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| GENERAL | |
| Speedway Motors Catalog Part # | 185-20751B |
| Finish | Powder Coated |
| Color | Black |
| Sold in Quantity | Set |
| Bushing Color | Black |
