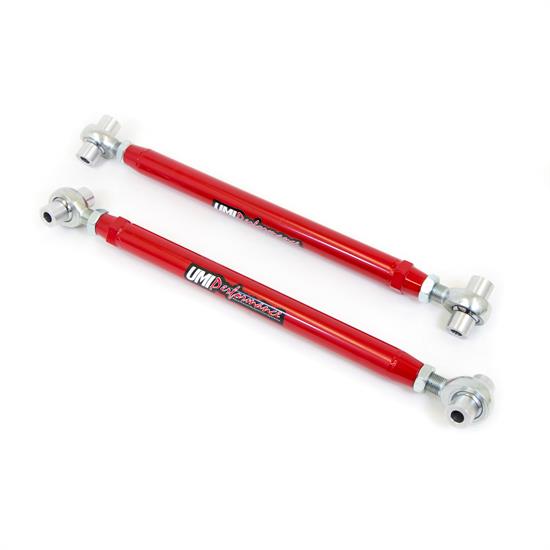

UMI 2017CM-R 82-02 F-Body Adj. Lower Control Arms, Rod Ends, Red

UMI P/N 2017, double adjustable control arms are designed for race applications and light duty street use. The spherical rod ends offer a solid foundation and work excellent as a solid bushing control arm while eliminating rear suspension bind. The double adjustment allows easy on car changes for wider tire clearance and to center aftermarket rear ends. These race application control arms are manufactured from DOM steel tubing or optional 4130 Chromoly and are TIG welded for the utmost in strength. The premium Teflon lined rod ends attach to the control arms using in-house machined 4130 Chromoly tube adaptors. UMI P/N 2017 allows adjustments of 1” longer or 1” shorter and are supplied pre-set to factory length. These race style control arms are designed for aftermarket sway bars that do not attach to the control arms; control arms are supplied with no sway bar holes.

Chromoly Option: Chromoly version uses 1.250" x 0.095" 4130 Chromoly steel. The Chromoly construction adds increased strength while reducing product weight. Make your selection below.

Features:

• TIG welded 1.250” x 0.120” DOM tubing or 1.250” x 0.095” 4130 Chromoly

• Stronger & lighter than factory control arms

• In-house machined 4130 Chromoly tube adaptors for increased thread durability

• ¾” Teflon lined, high load capacity race rod ends, Teflon lined & self-lubricating

• CNC machined light weight aluminum step bushings

• Brilliant durable red or black powder coat

• Reuses factory hardware or purchase new hardware kit P/N 4001

• Designed and manufactured with pride in Philipsburg, PA – USA

Installation Instructions (PDF)
