#185201723CMR
UMI 201723CM-R 82-02 F-Body Dbl. Adj. Panhard Bar&Lower Arms, Red
$469.99
kit
Factory Shipped
This part will be shipped by the manufacturer. We estimate this item will ship on or before October 11th.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Upgrade Suspension Kit Type, Bolt-On, Powder Coated
See more details
Key Specs
| Suspension Kit Type | Upgrade |
| Rear Coil Springs Included | No |
| Shocks Included | No |
| Bolt-On | Yes |
| Axle Housing Included | No |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyUMI Performance 201723CM-R Details
UMI Performance 201723CM-R Details

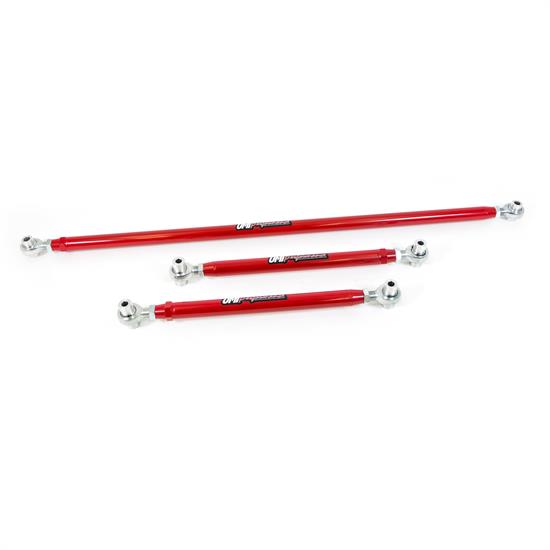

This fully adjustable set up includes the following:
- 1 Set Double Adjustable Lower Control Arms Item # 2017
- 1 pc. Double Adjustable Panhard Bar Item # 2023
Both items feature TIG welded fabrication from drawn over mandrel tubing and include our high quality QA1 Teflon lined spherical bearing rod ends. This kit is designed for the true and serious racer looking to achieve the maximum performance from there rear suspension.
Chrome Moly: Chrome Moly version uses 1.250" x 0.095" 4130 Chrome Moly steel. The Chrome Moly construction adds higher tensile and yield strength then mild steel applications for the ultimate in product strength.
Installation: Easy one hour bolt on installation that requires no drilling or welding and uses OEM hardware.
Features:
- 1.250" OD Drawn Over Mandrel Tubing
- 4140 Chrome Moly Threaded Tube Adaptors
- QA1 ¾" Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod end
- Complete Set Features TIG Welded Construction
- CNC Machined 6061 Aluminum Step Bushings
- On-Car Adjustability using Right and Left Hand Threads
- Brilliant Durable Powder Coat
Charts
Guides & Documents
UMI Performance 201723CM-R Specifications
UMI Performance 201723CM-R Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 201723CM-R |
| Brand | UMI Performance |
| Suspension Kit Type | Upgrade |
| Rear Coil Springs Included | No |
| Shocks Included | No |
| Bolt-On | Yes |
| Axle Housing Included | No |
| Rear Leaf Springs Included | No |
| Bushing Material | Spherical bearing |
| Lower Trailing Arms Included | No |
| Upper Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | No |
| Hardware Included | No |
| Air Springs Included | No |
| Crossmember Included | No |
| Frame Brackets Included | No |
| Welding Required | No |
| Rear Sway Bar Included | No |
| End Link Bushings Included | No |
| Sway Bar Bushings Included | No |
| Panhard Bar Included | Yes |
| Torque Arm Included | No |
| Upper Control Arms Included | No |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| GENERAL | |
| Finish | Powder Coated |
| Color | Red |
| Sold in Quantity | Kit |
| Control Arm Material | Chromoly |
| Control Arm Finish | Powder Coated |
| Bushing Color | Natural |
| Control Arm Color | Black |
