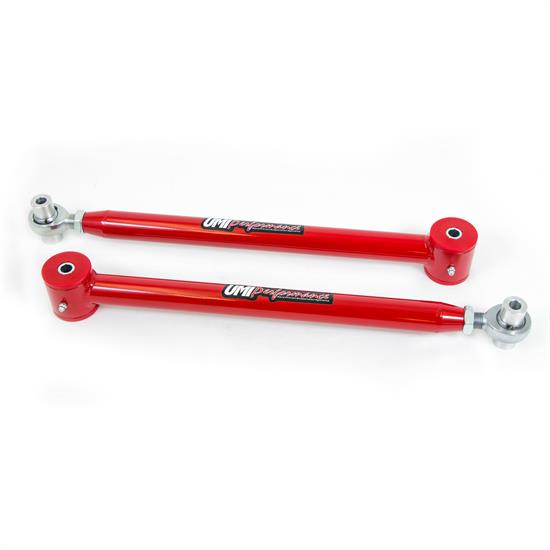

UMI 2016CM-R 82-02 F-Body Tubular Adj. Lower Control Arms, Red
Rear Lower Position, Tubular Control Arm Style, Chromoly
Replace your weak, factory stamped lower control arms with UMI's heavy duty tubular adjustable setup. These direct bolt-on replacements minimize wheel hop, improve cornering while lowering ET's and help track consistency. The spherical rod end allows for a "bind free" operation, making a great upgrade for both your track and auto cross driven car. The polyurethane bushings are designed to be bolted to the car chassis for a quiet comfortable operation. Control arms are constructed DOM mild steel tubing 1.375" OD x 0.095" wall, 4130 chromoly threaded tube adaptor, completely CNC machined and fully TIG welded for outstanding strength. Control arms feature Energy Suspension polyurethane bushings, zinc plated steel sleeves and "on-car" grease able zerk grease fittings. Adjustments can be made using the high quality QA1 Teflon lined spherical rod end that operates for a quiet bind free performance.
- 1.375" x 0.095" DOM Mild Steel Tubing
- 4130 Chrome-Moly Threaded Tube Adaptor
- QA1 3/4" Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race RodEnd
- Complete Arm Features TIG Welded Construction
- CNC Machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves
- Energy Suspension Fluted Polyurethane grease able Bushings
- Uses OEM Hardware
Installation: Installs in approximately 30 minutes in factory mounting points using OEM hardware, the poly end is designed to be bolted to the chassis for a quiet, comfortable operation.
*Chrome Moly version uses 1.250" x 0.095" 4130 Chrome Moly steel adding increased strength while reducing product weight.
- This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
