Add to Cart
$294.99
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black

UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black

Upgrade Suspension Kit Type, Bolt-On

0 Reviews | 0 Answered Questions
Factory Shipped
Ships FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
X
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
UMI 201621-B 82-02 F-Body Single Adj Lower Arms&Panhard Bar,Black
Zoomed In Image
We estimate this item will ship on or before October 2nd.
Part # 185201621B
$294.99
kit
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Suspension Kit Type:
Upgrade
Rear Coil Springs Included:
No
Shocks Included:
No
Bolt-On:
Yes
Axle Housing Included:
No
Finish:
Powder Coated
Color:
Black
Rear Leaf Springs Included:
No
Bushing Material:
Spherical Bearing/Polyurethane
Lower Trailing Arms Included:
No
Upper Trailing Arms Included:
No
Trailing Arm Mount Braces Included:
No
MFG. Part #:
201621-B
Hardware Included:
No
Sold in Quantity:
Kit
Air Springs Included:
No
Crossmember Included:
No
Frame Brackets Included:
No
Welding Required:
No
Rear Sway Bar Included:
No
End Link Bushings Included:
No
Sway Bar Bushings Included:
No
Panhard Bar Included:
Yes
Torque Arm Included:
No
Upper Control Arms Included:
No
Lower Control Arms Included:
Yes
Control Arm Style:
Tubular
Control Arm Material:
Steel
Control Arm Finish:
Black powdercoated
Rear Strut Tower Bar Included:
No
Subframe Connectors Included:
No
Chassis Stiffener Included:
No
Calipers Included:
No
Rotors Included:
No
Brake Pads Included:
No
Brake Lines Included:
No
Wheel Studs Included:
No
Bushing Color:
Black

Info

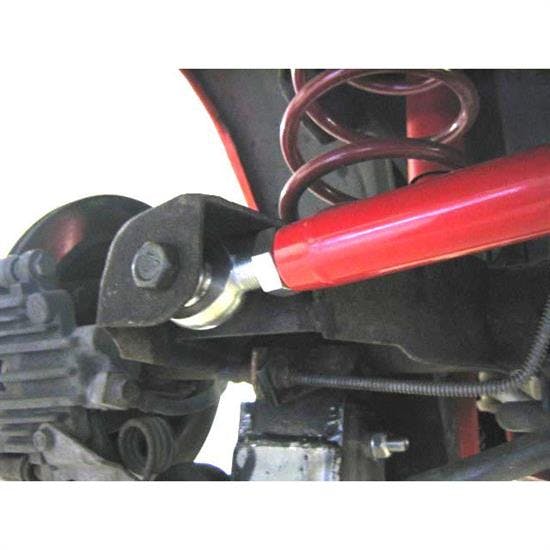

Replace your weak, factory stamped lower control arms with UMI's heavy duty tubular adjustable set up. These direct bolt-on replacements minimize wheel hop, improve cornering while lowering ET's and helping track consistency. The spherical rod end allows for a "Bind Free" operation making a great upgrade for both your track and auto cross driven car. The polyurethane bushings are designed to be bolted to the car chassis for a quiet comfortable operation. Control arms are constructed DOM mild steel tubing 1.375" OD x 0.095" wall, 4130 chromoly threaded tube adaptors, completely CNC machined and fully TIG welded for outstanding strength. Control arms feature Energy Suspension polyurethane bushings, zinc plated steel sleeves and on-car grease-able grease fittings. Adjustments can be made using the high quality QA1 Teflon lined spherical rod end that operates for a quiet bind free performance

Features:

  • 1.375" x 0.095" DOM Mild Steel Tubing
  • 4130 Chrome-Moly Threaded Tube Adaptor
  • QA1 3/4" Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod End
  • Complete Arm Features TIG Welded Construction
  • CNC Machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves
  • Energy Suspension Fluted Polyurethane grease able Bushings
  • Uses OEM Hardware

Installation: Installs in approximately 30 minutes in factory mounting points using OEM hardware, the poly end is designed to be bolted to the chassis for a quiet, comfortable operation.

Charts

Installation Instructions (PDF)

Installation Instructions (PDF)

Important Messages:

  • This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
  • This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
Some parts are not legal for use in California or other states with similar laws/regulations
