#185201520R
UMI 201520-R 82-02 F-Body Lower Control Arms & Panhard Bar, Red
2 Reviews
|
Ask a Question
$179.99
kit
In Stock
Order soon, only 2 left in stock!
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Upgrade Suspension Kit Type, Bolt-On, Powder Coated
See more details
Key Specs
| Suspension Kit Type | Upgrade |
| Rear Coil Springs Included | No |
| Shocks Included | No |
| Bolt-On | Yes |
| Axle Housing Included | No |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyUMI Performance 201520-R Details
UMI Performance 201520-R Details

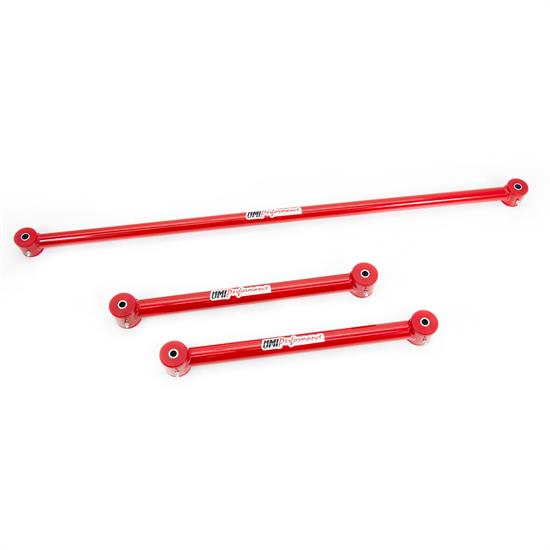

This complete kit replaces your weak, factory stamped lower control arms and panhard bar with our heavy duty tubular setup. These direct bolt-on replacements minimize wheel hop, improve cornering while lowering ET's and helping track consistency. The panhard bar greatly increases rear stability, controls side movement and body flex while the lower control arms help to reduce unwanted wheel hop. Both items are constructed of Seamless DOM mild steel tubing, stronger and less flex then Aluminum made versions on the market. Control arms and panhard bar are both completely CNC machined and fully TIG welded featuring Energy Suspension polyurethane bushings, zinc plated steel sleeves and "on car" grease-able grease fittings.
Features:
- Control Arms Built Using 1.625" x 0.120" Steel DOM Tubing
- Panhard Bar Built Using 1.250" x 0.095" Steel DOM Tubing
- Complete kit Features TIG Welded Construction
- CNC Machined Zinc Plated Steel Sleeves
- Energy Suspension Fluted Polyurethane grease-able Bushings
- Durable Powder Coat Finish
- Uses OEM Hardware
Installation: Installs in approximately 30 minutes in factory mounting points using OEM hardware.
UMI Performance 201520-R Specifications
UMI Performance 201520-R Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 201520-R |
| Brand | UMI Performance |
| Suspension Kit Type | Upgrade |
| Rear Coil Springs Included | No |
| Shocks Included | No |
| Bolt-On | Yes |
| Axle Housing Included | No |
| Rear Leaf Springs Included | No |
| Bushing Material | Polyurethane |
| Lower Trailing Arms Included | No |
| Upper Trailing Arms Included | No |
| Trailing Arm Mount Braces Included | No |
| Hardware Included | No |
| Air Springs Included | No |
| Crossmember Included | No |
| Frame Brackets Included | No |
| Welding Required | No |
| Rear Sway Bar Included | No |
| End Link Bushings Included | No |
| Sway Bar Bushings Included | No |
| Panhard Bar Included | Yes |
| Torque Arm Included | No |
| Upper Control Arms Included | No |
| Lower Control Arms Included | Yes |
| Control Arm Style | Tubular |
| Rear Strut Tower Bar Included | No |
| Subframe Connectors Included | No |
| Chassis Stiffener Included | No |
| Calipers Included | No |
| Rotors Included | No |
| Brake Pads Included | No |
| Brake Lines Included | No |
| Wheel Studs Included | No |
| GENERAL | |
| Speedway Motors Catalog Part # | 185-201520R |
| Finish | Powder Coated |
| Color | Red |
| Sold in Quantity | Kit |
| Control Arm Material | Steel |
| Control Arm Finish | Powder Coated |
| Bushing Color | Red |
| Control Arm Color | Red |
