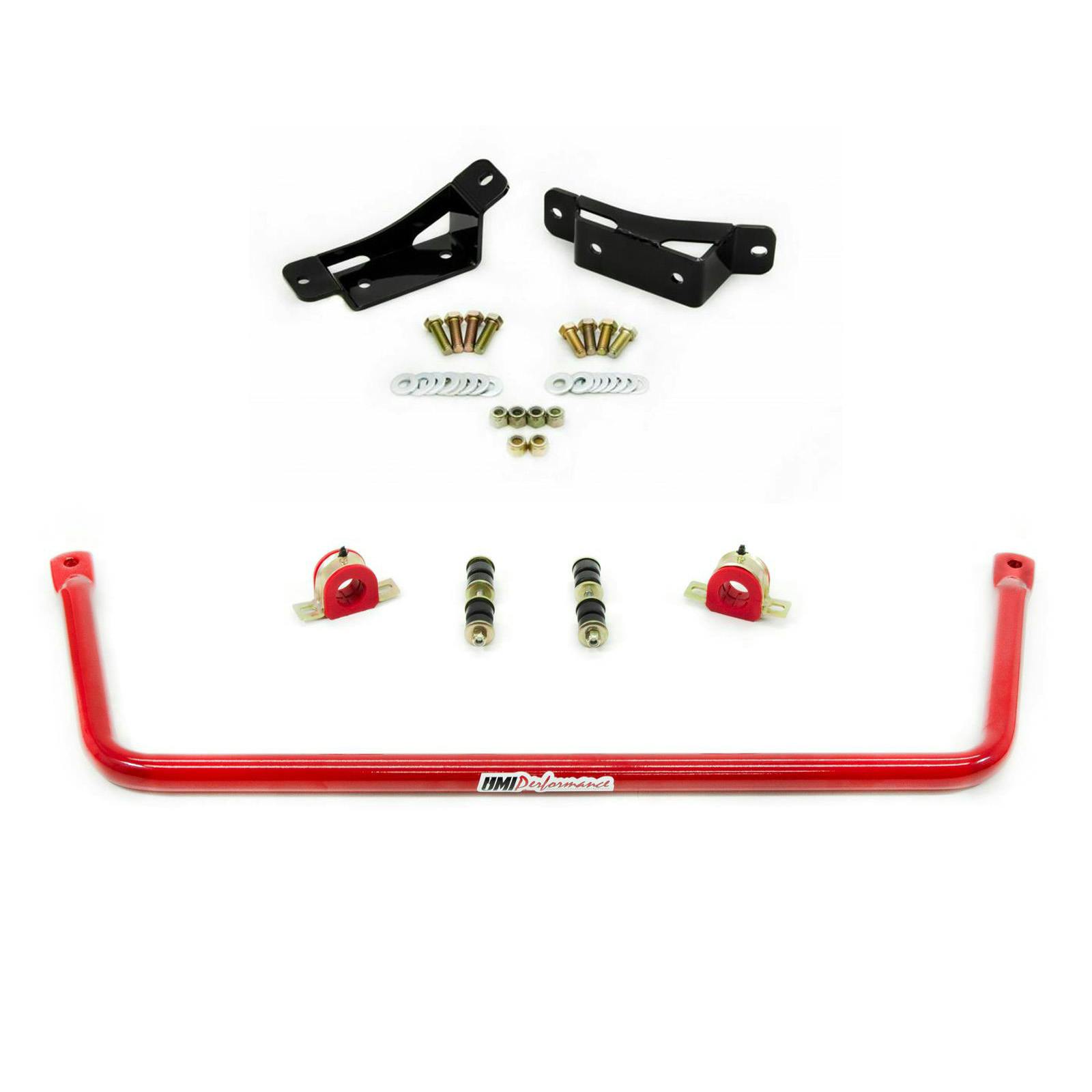

UMI 1973-87 C10 Front Sway Bar & Bracket Kit, Lowered, 1-3/8 Inch

#9102629

UMI 1973-87 C10 Front Sway Bar & Bracket Kit, Lowered, 1-3/8 Inch

Power tour and daily driver proven
1-3/8" heavy duty tubular construction – strong and light
Direct bolt-in

Type:

Front / Red (W/ Brackets) Lowered

Front / Black Front / Red Front / Red (W/ Brackets) StockRear / Black Rear / Red Front & Rear / Black Front & Rear / Red Front & Rear / Black (W/ Brackets)Front & Rear / Red (W/ Brackets)

$389.98

Factory Shipped

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Hollow Sway Bar Type, Front Position, Steel, Red

Power tour and daily driver proven
1-3/8" heavy duty tubular construction – strong and light
Direct bolt-in
Use for trucks with lowering springs
Gusseted to reduce bending that can occur when using large diameter sway bars

Comes as a Kit

View Kit Components

See more details

Key Specs

Sway Bar Type	Hollow
Position	Front
Bushing Material	Polyurethane
Material Type	Steel
Finish	Powder Coated

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Details

Sway Bar

Heavy duty tubular sway bar reduces body roll and improves cornering capability. Tubular construction balances heavy load and sway control with lightweight performance. The bar is built from US steel and includes chassis bushings and endlinks. Balances well with UMI 6443 three way adjustable rear bar.

Power Tour and daily driver proven
1-3/8" heavy duty tubular construction – strong and light
Direct bolt-in
Stiffer than stock to reduce body roll and increase performance
End links and chassis mount bushings included
Minor drilling of a-arms required to accommodate heavy duty end links
Pair with UMI 6443 rear sway bar for ultimate sway control
UMI 90048 1-3/8" billet aluminum sway bar mount upgrade available
Use UMI 6444 (factory height) or UMI 6445 (lowered) chassis brackets on trucks without factory front sway bar mount
100% Made In USA

Lowered Brackets

Heavy duty sway bar bracket used to mount sway bar on trucks not normally equipped with a front bar. For trucks using lowering springs. 100% Made In USA.

Use for trucks with lowering springs
Gusseted to reduce bending that can occur when using large diameter sway bars
Required to mount sway bar on trucks not originally equipped with a sway bar
Bolts in factory location (may require removal of frame rivets on some applications)
Improves sway bar arm angle
Raises sway bar to be less visible from the front of the truck
Durable black powder coat
All hardware included
100% Made In USA

Specifications

KEY SPECS
Brand	UMI Performance
Sway Bar Type	Hollow
Position	Front
Bushing Material	Polyurethane
Material Type	Steel
Finish	Powder Coated
Color	Red

GENERAL
Hardware Included	Yes
Adjustability	Fixed
Front Sway Bar Diameter	1.375"
Sold in Quantity	Kit

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1973-1986 Chevy C10

1973-1986 Chevy C10 Suburban
