UMI 1015-B 79-98 Mustang Single Adj. Lower Control Arms, Black

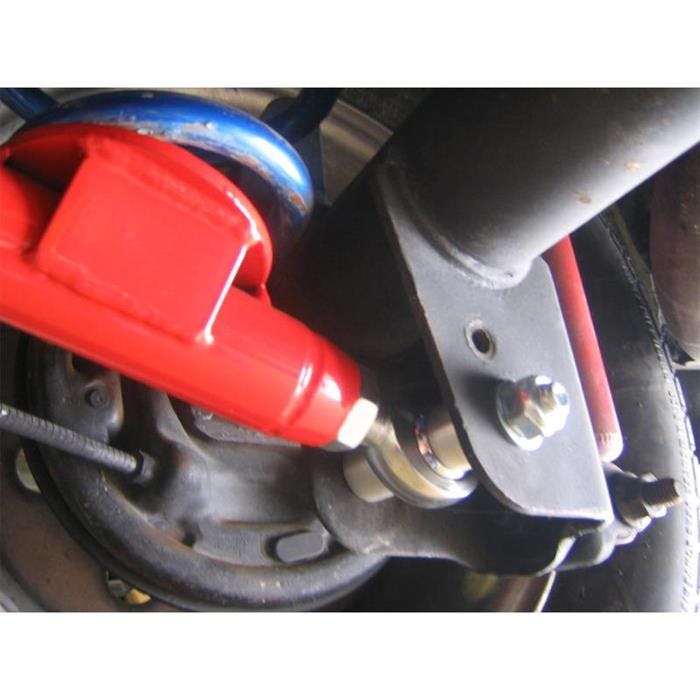

Replace your weak factory stamped lower control arms with UMI's heavy duty tubular adjustable setup. These direct bolt-on replacements minimize wheel hop, improve cornering while lowering ET's and help track consistency. The spherical rod end allows for a “bind free” operation, making a great upgrade for both your track and auto cross driven vehicle. The polyurethane bushings are designed to be bolted to the car chassis for a quiet comfortable operation. Control arms are constructed of DOM mild steel tubing 1.500” OD x 0.120” wall, 4130 chrome-moly threaded tube adaptor, completely CNC machined and fully TIG welded for outstanding strength. Control arms feature Energy Suspension® polyurethane bushings, zinc plated steel sleeves and “on-car” grease able zerk grease fittings. Adjustments can be made using the high quality QA1® Teflon lined spherical rod end that operates for a quiet bind free performance. Our lower control arms feature reinforced spring perches and heavy duty sway bar mounting points.

Features:

• 1.500” x 0.120” DOM Mild Steel Tubing

• 4130 Chrome-Moly Threaded Tube Adapter

• QA1 ¾” Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod End

• Complete Arm Features TIG Welded Construction

• CNC Machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves

• Energy Suspension Fluted Polyurethane grease able Bushings

• Uses OEM Hardware

Installation:

Easy bolt-on installation in about 1 hour--no drilling required. Uses OEM hardware.

Application:

1979-1998 Ford Mustang

Installation Instructions (PDF)
