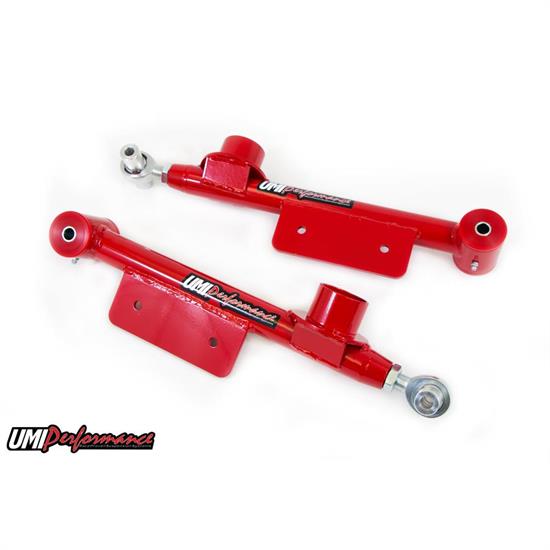

UMI 1014-R 99-04 Mustang Single Adj. Lower Control Arms, Red
Rear Lower Position, Tubular Control Arm Style, Steel
Replace your weak factory stamped lower control arms with UMI's heavy duty tubular adjustable setup. These direct bolt-on replacements minimize wheel hop, improve cornering while lowering ET's and help track consistency. The spherical rod end allows for a “bind free” operation, making a great upgrade for both your track and auto cross driven car. The polyurethane bushings are designed to be bolted to the car chassis for a quiet comfortable operation. Control arms are constructed DOM mild steel tubing 1.500” OD x 0.120” wall, 4130 chrome-moly threaded tube adaptor, completely CNC machined and fully TIG welded for outstanding strength. Control arms feature Energy Suspension® polyurethane bushings, zinc plated steel sleeves and “on-car” grease able zerk grease fittings. Adjustments can be made using the high quality QA1® Teflon lined spherical rod end that operates for a quiet bind free performance. Our lower control arms feature reinforced spring perches and heavy duty sway bar mounting points.
- 1.500” x 0.120” DOM Mild Steel Tubing
- 4130 Chrome-Moly Threaded Tube Adapter
- QA1 ¾” Hard Chrome Plated, Teflon/Kevlar Self Lubricating Race Rod End
- Complete Arm Features TIG Welded Construction
- CNC Machined 6061 Aluminum Step Bushings with Zinc Plated Steel Sleeves
- Energy Suspension Fluted Polyurethane grease able Bushings
- Uses OEM Hardware
Installation: Easy bolt-on installation in about 1 hour--no drilling required. Uses OEM hardware
Installation: Easy bolt-on installation in about 1 hour--no drilling required. Uses OEM hardware.
Application: 1999-2004 Ford Mustang(Will not fit 1999-2004 Cobra)
- This item ships directly from the manufacturer. It may take an additional 10 business days for UMI Performance to ship this item.
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
- This item ships via Ground Shipping only. Expedited and Air shipping options are not available.
