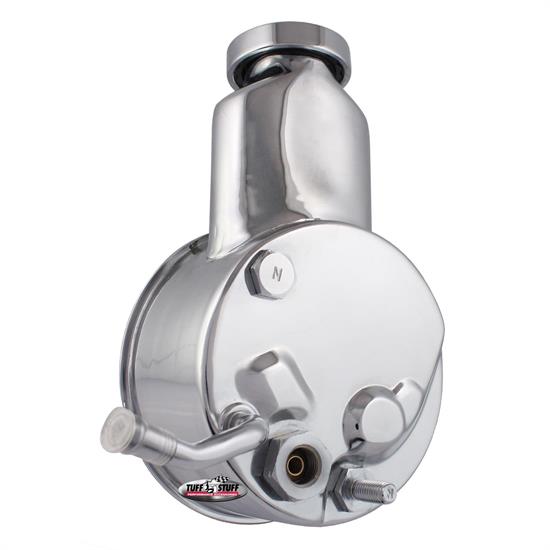

Tuff Stuff 6194A Power Steering Pump, Direct Fit, Chrome

$102 Off

#7456194A

Tuff Stuff 6194A Power Steering Pump, Direct Fit, Chrome

Direct Fit
Fits Select 1969-1969 Chevy Vehicles Incl. 1969 Chevy Bel Air; 1969 Chevy Biscayne - See Vehicle Fitment
5/8 in. Keyed Shaft

Finish:

Chrome

$277.99

/each

Factory Shipped

$379.68

Save $101.69

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Saginaw Power Steering Pump Style, Chrome

Direct Fit
Fits Select 1969-1969 Chevy Vehicles Incl. 1969 Chevy Bel Air; 1969 Chevy Biscayne - See Vehicle Fitment
5/8 in. Keyed Shaft
3/8 in.-16 Mounting
Incl. Reservoir/Pump Assembly/Billet Cap/Dipstick/Hardware Construction, Chrome Finish

See more details

Key Specs

MFG. Part #	6194A
Power Steering Pump Style	Saginaw
Power Steering Pump Finish	Chrome
Power Steering Pump Material	Aluminum
Power Steering Pulley Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tuff Stuff 6194A Details

This GM style Saginaw pump features all new components including reservoir and pump assembly. It also includes a billet chrome cap, a new dipstick and hardware. Pumps are 1200 PSI rated @ 2.9-3.1 GPM to work with most gearbox systems. An optional 850 PSI valve is available for Mustang II rack and pinion systems.

Features:

Incl. Reservoir/Pump Assembly/Billet Cap/Dipstick/Hardware
Requires A Bolt On Pulley Which Is Not Included
Clockwise Rotation Only
1200 PSI Rating
3 GPM Flow
100% New Components
Made In The U.S.A.

Vehicle Fitment:

1969 Chevy Bel Air: 5.3L V8 327, 5.4L V8 327, 5.7L V8 350, 6.5L V8 396, 7.0L V8 427
1969 Chevy Biscayne: 5.3L V8 327, 5.4L V8 327, 5.7L V8 350, 6.5L V8 396, 7.0L V8 427
1969 Chevy Blazer: 5.0L V8 307, 5.7L V8 350
1969 Chevy Brookwood: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396, 7.0L V8 427
1969 Chevy C10 Pickup: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396
1969 Chevy C10 Suburban: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396
1969 Chevy C20 Pickup: 4.1L L6 250, 4.8L L6 292
1969 Chevy C20 Suburban: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396
1969 Chevy C30 Pickup: 4.1L L6 250, 4.8L L6 292
1969 Chevy Caprice: 5.0L V8 307, 5.3L V8 327, 5.4L V8 327, 5.7L V8 350, 6.5L V8 396, 7.0L V8 427
1969 Chevy El Camino: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396
1969 Chevy G10 Van: 5.0L V8 307
1969 Chevy G20 Van: 5.0L V8 307
1969 Chevy Impala: 5.0L V8 307, 5.3L V8 327, 5.4L V8 327, 5.7L V8 350, 6.5L V8 396, 7.0L V8 427
1969 Chevy K10 Suburban: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396
1969 Chevy K20 Pickup: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396
1969 Chevy K20 Suburban: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396
1969 Chevy K30 Pickup: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396
1969 Chevy Kingswood: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396, 7.0L V8 427
1969 Chevy P20 Van: 5.0L V8 307
1969 Chevy P30 Van: 5.0L V8 307
1969 Chevy Townsman: 5.0L V8 307, 5.3L V8 327, 5.7L V8 350, 6.5L V8 396, 7.0L V8 427

Guides & Documents

Warranty (Tuff Stuff)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Tuff Stuff 6194A Specifications

KEY SPECS
MFG. Part #	6194A
Brand	Tuff Stuff
Power Steering Pump Style	Saginaw
Power Steering Pump Finish	Chrome
Power Steering Pump Material	Aluminum
Power Steering Pulley Included	No

GENERAL
GTIN Code	698252016810
Notes	Direct Fit; 5/8 in. Keyed Shaft; 3/8 in.-16 Mounting
Flow Rating	3 GPM
Pressure Rating	1200 psi
Power Steering Pulley Attachment	Bolt on
Power Steering Pump Reservoir Included	Yes
Hardware Included	Yes
Fittings Included	No

Ratings & Reviews

Be the first to write a review.

Questions & Answers

Be the first to ask a question.

Fitment

1995-1996 Buick Roadmaster

Gen 2 LT1 Small Block Chevy

1999-2000 Cadillac Escalade

Vortec L31 Small Block Chevy

1993-1996 Cadillac Fleetwood

Gen 2 LT1 Small Block Chevy

1996-1999 Chevy C1500

Vortec L31 Small Block Chevy

1996-1999 Chevy C1500 Suburban

Vortec L31 Small Block Chevy

1996-1999 Chevy C2500

Vortec L31 Small Block Chevy

1996-1999 Chevy C2500 Suburban

Vortec L31 Small Block Chevy

1996-1999 Chevy C35

Vortec L31 Small Block Chevy

1996-1999 Chevy C3500

Vortec L31 Small Block Chevy

1992-1995 Chevy Camaro

Gen 2 LT1 Small Block Chevy

1996-1999 Chevy Camaro

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1994-1995 Chevy Caprice

Gen 2 LT1 Small Block Chevy

1996 Chevy Caprice

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1992-1995 Chevy Corvette

Gen 2 LT1 Small Block Chevy

1996 Chevy Corvette

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1996-1999 Chevy Express 1500

Vortec L31 Small Block Chevy

1996 Chevy Express 2500

Vortec L31 Small Block Chevy

1997 Chevy Express 2500

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1998-1999 Chevy Express 2500

Vortec L31 Small Block Chevy

1996-1999 Chevy Express 3500

Vortec L31 Small Block Chevy

1996 Chevy G30

Vortec L31 Small Block Chevy

1994-1995 Chevy Impala

Gen 2 LT1 Small Block Chevy

1996 Chevy Impala

Gen 2 LT1 Small Block Chevy
Vortec L31 Small Block Chevy

1996-1999 Chevy K1500

Vortec L31 Small Block Chevy

1996-1999 Chevy K1500 Suburban

Vortec L31 Small Block Chevy

1996-1999 Chevy K2500

Vortec L31 Small Block Chevy

1996-1999 Chevy K2500 Suburban

Vortec L31 Small Block Chevy

1996-1999 Chevy K3500

Vortec L31 Small Block Chevy

1996-1999 Chevy P30

Vortec L31 Small Block Chevy

1996-1999 Chevy R25

Vortec L31 Small Block Chevy

1996-1999 Chevy Silverado

Vortec L31 Small Block Chevy

1996-1999 Chevy Suburban 1500

Vortec L31 Small Block Chevy

1996-1999 Chevy Tahoe

Vortec L31 Small Block Chevy

1998-1999 GMC C1500

Vortec L31 Small Block Chevy

1992-1999 GMC C1500 Suburban

Vortec L31 Small Block Chevy

1998-1999 GMC K1500

Vortec L31 Small Block Chevy

1992-1999 GMC K1500 Suburban

Vortec L31 Small Block Chevy

1996-2000 GMC K2500

Vortec L31 Small Block Chevy

1987 GMC R1500 Suburban

Vortec L31 Small Block Chevy

1996-2000 GMC Savana 1500

Vortec L31 Small Block Chevy

1992-2011 GMC Yukon

Vortec L31 Small Block Chevy
