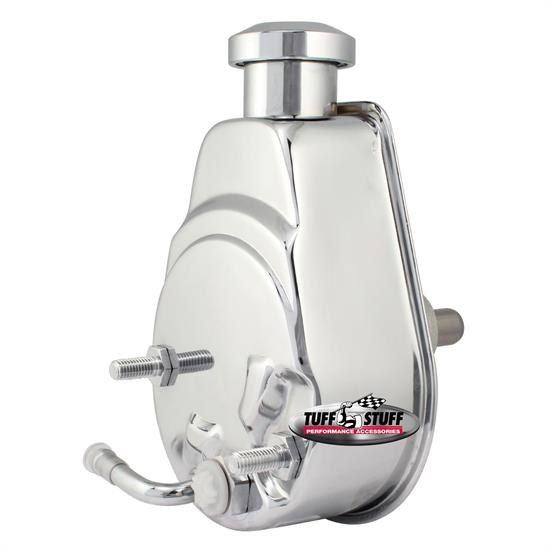

Tuff Stuff 6186A Power Steering Pump, Direct Fit, 1200 PSI

Direct Fit, 3/4 in. Press Fit Shaft
Fits Select 1980-1988 Chevy & GMC Vehicles Incl. 1980-86 Chevy C20; 1980-86 Chevy C30 - See Vehicle Fitment
1200 PSI Pressure Rating, M10x1.5 Mounting Holes

$355.99

/each

Factory Shipped

$400.74

Save $44.75

Quantity

Need Help? Call to Order

Add to a list

Select an engine to verify Fitment

Select Engine

Product Summary

Saginaw Power Steering Pump Style, Chrome

Direct Fit, 3/4 in. Press Fit Shaft
Fits Select 1980-1988 Chevy & GMC Vehicles Incl. 1980-86 Chevy C20; 1980-86 Chevy C30 - See Vehicle Fitment
1200 PSI Pressure Rating, M10x1.5 Mounting Holes
Incl. Reservoir/Pump Assembly/Billet Cap/Dipstick/Hardware Construction, Chrome Finish
Requires A Press Fit Pulley; Not Included

See more details

Key Specs

MFG. Part #	6186A
Power Steering Pump Style	Saginaw
Power Steering Pump Finish	Chrome
Power Steering Pump Material	Aluminum
Power Steering Pulley Included	No

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Tuff Stuff 6186A Details

This GM style Saginaw pump features all new components including reservoir and pump assembly. It also includes a billet chrome cap, a new dipstick and hardware. Pumps are 1200 PSI rated @ 2.9-3.1 GPM to work with most gearbox systems. An optional 850 PSI valve is available for Mustang II rack and pinion systems.

Features:

Incl. Reservoir/Pump Assembly/Billet Cap/Dipstick/Hardware
Requires A Press Fit Pulley; Not Included
Clockwise Rotation Only
1207 PSI Rating
3 GPM Flow
100% New Components
Made In The U.S.A.

Vehicle Fitment:

1980-1984 Chevy C10: 4.1L L6 250, 4.8L L6 292 (1980)
1980 Chevy C10 Suburban: 4.1L L6 250
1980-1986 Chevy C20: 4.1L L6 250 (1980-1984), 4.8L L6 292
1980-1982 Chevy C20 Suburban: 4.8L L6 292
1980-1986 Chevy C30: 4.1L L6 250 (1980), 4.8L L6 292
1980-1984 Chevy K10: 4.1L L6 250, 4.8L L6 292 (1980)
1980 Chevy K10 Suburban: 4.1L L6 250
1980-1986 Chevy K20: 4.1L L6 250 (1980), 4.8L L6 292
1980-1982 Chevy K20 Suburban: 4.8L L6 292
1980-1986 Chevy K30: 4.8L L6 292
1980-1982 Chevy K5 Blazer: 4.1L L6 250
1987-1988 Chevy R20: 4.8L L6 292
1987-1988 Chevy R30: 4.8L L6 292
1980-1984 GMC C1500: 4.1L L6 250, 4.8L L6 292 (1980)
1980 GMC C1500 Suburban: 4.1L L6 250
1980-1984 GMC C2500: 4.1L L6 250, 4.8L L6 292
1980-1982, 1984 GMC C2500 Suburban: 4.8L L6 292
1980 GMC C35/C3500 Pickup: 4.1L L6 250
1980-1984 GMC C3500: 4.8L L6 292
1980-1982 GMC Jimmy: 4.1L L6 250
1980-1984 GMC K1500: 4.1L L6 250, 4.8L L6 292 (1980)
1980 GMC K1500 Suburban: 4.1L L6 250
1980-1984 GMC K2500: 4.1L L6 250 (1980), 4.8L L6 292
1980-1982, 1984 GMC K2500 Suburban: 4.8L L6 292
1980-1984 GMC K3500: 4.8L L6 292
1987-1988 GMC R2500: 4.8L L6 292
1987-1988 GMC R3500: 4.8L L6 292

Guides & Documents

Warranty (Tuff Stuff)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Tuff Stuff 6186A Specifications

KEY SPECS
MFG. Part #	6186A
Brand	Tuff Stuff
Power Steering Pump Style	Saginaw
Power Steering Pump Finish	Chrome
Power Steering Pump Material	Aluminum
Power Steering Pulley Included	No

GENERAL
GTIN Code	698252021302
Notes	Direct Fit; 3/4 in. Press Fit Shaft; 1200 PSI Pressure Rating; M10x1.5 Mounting Holes
Flow Rating	3 GPM
Pressure Rating	1200 psi
Power Steering Pulley Attachment	Press Fit
Power Steering Pump Reservoir Included	Yes
Hardware Included	Yes
Fittings Included	No
