#7456170AL5
$222.99
/each
Factory Shipped
$232.24
Save $9.25
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle

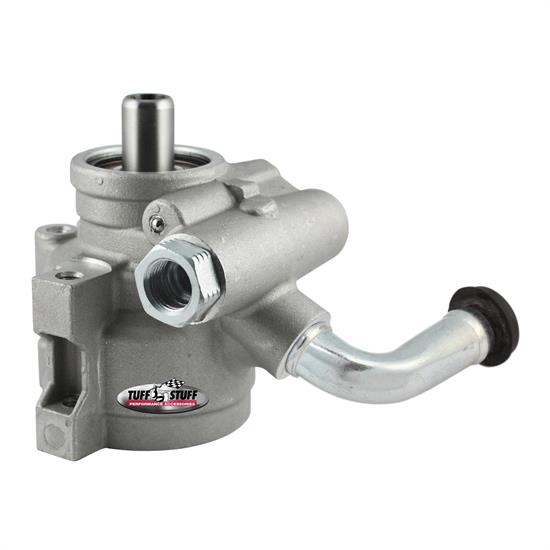

Universal Fit, Type 2 Power Steering Pump Style, Chrome
| MFG. Part # | 6170AL-5 |
| Power Steering Pump Style | Type 2 |
| Power Steering Pump Finish | Natural |
| Power Steering Pump Material | Aluminum |
| Power Steering Pulley Included | No |
Need help?
855.313.9176Quick and Easy Returns
Return PolicyOur GM Saginaw style pump features all new components including reservoir and pump assembly. Includes billet chrome cap, new dipstick and hardware. Pumps are 1200 PSI rated to work with most gearbox systems, 850 PSI valve available for Mustang II rack and pinion available upon request. Our Type II compact size pump is ideal for tight installations. For use with factory or remote reservoir tank depending upon part number. Pumps are rated at 1200 PSI rating, 850 PSI valve available upon request. Perfect for street rods and custom vehicles with limited engine space. Pumps are available in chrome plated, various colors and plain, as cast finishes.
Features:
Guides & Documents
CA WARNING:
Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov
| KEY SPECS | |
|---|---|
| MFG. Part # | 6170AL-5 |
| Brand | Tuff Stuff |
| Power Steering Pump Style | Type 2 |
| Power Steering Pump Finish | Natural |
| Power Steering Pump Material | Aluminum |
| Power Steering Pulley Included | No |
| Inlet Fitting | 5/8 in. OD Return Tube |
| Outlet Fitting | M16 |
| GENERAL | |
| GTIN Code | 698252015806 |
| Notes | M16 And 5/8 in. OD Return; M8x1.25 Threaded Hole Mtg; Btm Pressure Port |
| Inlet Quantity | 1 |
| Outlet Quantity | 1 |
| Flow Rating | 3 GPM |
| Pressure Rating | 1200 psi |
| Power Steering Pulley Attachment | Press Fit |
| Hardware Included | Yes |
| Fittings Included | No |
