Transmission Oil Cooler Line Installation Kit, -6AN to 1/4 Inch

Kit Includes:

• (1) Earls 167210ERL Hose & Tubing Separator (PR), 5/8 Inch, Set of 2, Polished
• (1) ICT Billet 551114 Transmission Adapter Fitting (PR), -6AN to 1/4 Inch
• (2) Black 90 Degree Socketless Push-On Hose End Fitting, -6 AN
• (4) Black Socketless Straight Push-On Hose End Fitting, -6 AN
• (2) Black 45 Degree Socketless Push-On Hose End, -6 AN
• (1) Aeroquip Special Application Socketless -6 AN Hose, Black, 20Ft Length

Earls 167210ERL Hose & Tubing Separator, 5/8 Inch, Set of 2, Polished

• State-Of-The-Art
• Widest Selection Available
• For Serious Enthusiasts
• Billet Aluminum Alloy
• Professional Plumbing Installation
• For Professional Engine Look

ICT Billet 551114 Transmission Adapter Fitting, -6AN to 1/4 Inch

• Fits: Up to 2007 both front & rear (top & bottom) GM trans case holes (4L80E rear fitting, see other listing)
• Thread Pitch: -6AN to 1/4" NPSM (thread O.D. measures .516", standard GM transmission case thread)
• Package Includes: 2 fittings and 2 orings
• Fits: TH350, TH400, 4L60E, 4L80E, 700R4, 200-4R and Ford AOD transmissions 4R100, 4R70W, C5
• Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum

Speedway Socketless Push-On Hose End Fitting, 90 Degree, Anodized, -6 AN

• -6 AN female to push-on style adapter
• 90 degree angle
• Lightweight aluminum hose ends are completely reusable, and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Available in a Black anodized finish

Speedway Socketless Push-On Hose End Fitting, Straight, Anodized, -6 AN

• -6 AN female to push-on style adapter
• Straight
• Lightweight aluminum hose ends are completely reusable, and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Available in a Black anodized finish

Speedway Socketless Push-On Hose End Fitting, 45 Degree, Anodized, -6 AN

• -6 AN female to push-on adapter
• 45 degree angle hose connector
• Lightweight aluminum hose ends are completely reusable, and interchangeable
• 37° angled sealing surface guarantees a positive anti-leak seal
• Available in a Black anodized finish

Aeroquip Special Application Socketless -6 AN Hose, Black, 20Ft Length

• Textile braid reinforcement
• Low pressure design for use with socketless reuseable fittings only
• No hose clamp necessary
• Construction:
  • AQP elastomer tube, textile braid reinforcement, black AQP elastomer cover
• Application:
  • For gasoline, fuel and lubricating oils, air and water
  • Not recommended for hydraulic impulse applications and is not approved for air brake, hydraulic brake or power steering applications
• Operating Range:
  • Max Operating pressure: 250 PSI
  • Minimum burst pressure: 1000 PSI
  • Operating Temperature Range -40°F to 300°F
  • Air not to exceed +250°F and water not to exceed +180°F
  • Reduced pressure operation allows for temperatures up to 300°F

Full Swivel Application Chart (GIF)

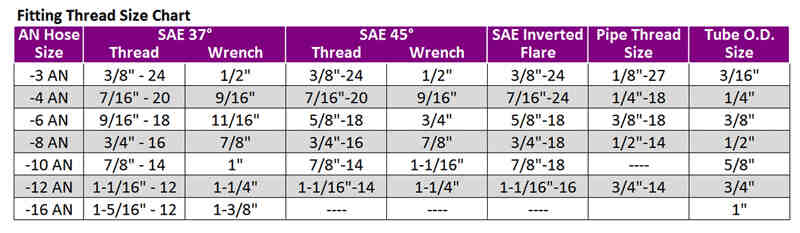

Hose Fitting Sizing Chart (GIF)
