#72042015
Trans-Dapt 42015 Engine Swap Kit, 1967-74 GM LS Manual, Silver Ceramic
by
Trans-Dapt
$1,259.99
each
On Backorder
$1,362.99
Save $103.00
This part is Backordered. We currently do not have an estimate when this item will ship.
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Chevy LS V8
See more details
Key Specs
MFG. Part # | 42015 |
Brand | Trans-Dapt |
See more specs
Need To Know
This Product Will Ship Free
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyTrans-Dapt 42015 Details
Trans-Dapt 42015 Details
Stuffing a New-Era GM LS V8 motor into a classic GM muscle car used to be an extremely complex, yet rewarding project. While performing this swap is still very rewarding, performing the project isn't quite as daunting as it once was. Nowadays, there are a number of quality products manufactured to make the LS swap go smoother with less, "trial and error". The key to a stress-free swap is finding aftermarket components that work together. Trans-Dapt Engine Swap Kits do just that.
Each of the member companies of the Hedman Performance Group is an engine swap specialists in their product field. Now, Hedman, Trans-Dapt and Hamburger's Performance have combined R&D forces to create their "Engine Swap In A Box" kits.

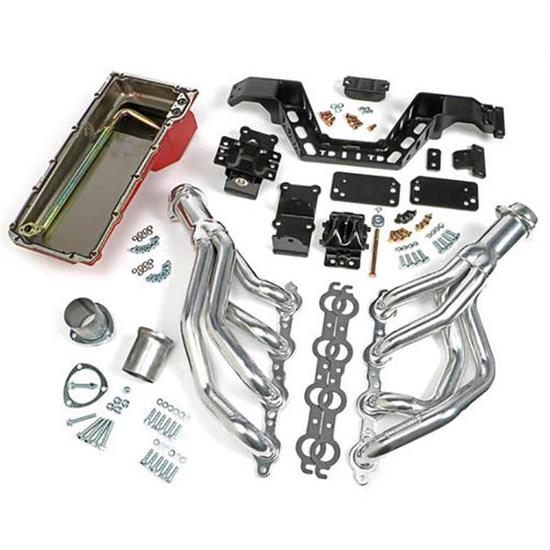

Each kit comes complete with a special engine swap oil pan and pickup, a full set of engine swap mounts and pads, a complete set of engine swap headers with gaskets and mounting hardware, and select kits also include a transmission crossmember and mount pad.
- Swaps GM LS Engine into 1967-69 Camaro/Firebird and 1968-74 Nova/Ventura
- 1-3/4" tube diameter
- 5 quart capacity
- 3" exhaust diameter
- Manual transmission
- Silver ceramic finish
- Kit does not include an o-ring for the oil pump pickup tube
- Oil pan does not have an option for an oil filter, therefore, oil filter relocation kit # 289-81019 is suggested
Trans-Dapt 42015 Specifications
Trans-Dapt 42015 Specifications
KEY SPECS | |
---|---|
MFG. Part # | 42015 |
Brand | Trans-Dapt |
GENERAL | |
Sold in Quantity | Kit |
GTIN Code | 086923420156 |
Air Conditioning | Yes |
Application Compatibility | Engine Swap |
Attachment Style | Bolt-on |
Bushing Included | Yes |
Capacity | 5 quarts |
Collector Attachment | Yes |
Collector Diameter | 3 Inch |
Collector Style | Ball and Socket |
Color | Black |
Drain Plug Included | Yes |
Drivetrain | 2WD |
Flange Thickness | 0.375" |
Gasket Or Seal Included | Yes |
Hardware Included | Yes |
Header Color | Silver |
Header Finish | Ceramic |
Header Style | Mid Length |
Motor Mount Type | Frame & Block Mounts |
Mount Material | Steel |
Pickup Included | Yes |
Position | Rear |
Reducers Included | Yes |
Sump Style | Wet Sump |
Windage Tray Included | Yes |
