    Trans-Dapt 42012 Details

    Stuffing a New-Era GM LS V8 motor into a classic GM muscle car used to be an extremely complex, yet rewarding project. While performing this swap is still very rewarding, performing the project isn't quite as daunting as it once was. Nowadays, there are a number of quality products manufactured to make the LS swap go smoother with less, "trial and error". The key to a stress-free swap is finding aftermarket components that work together. Trans-Dapt Engine Swap Kits do just that.

    Each of the member companies of the Hedman Performance Group is an engine swap specialists in their product field. Now, Hedman, Trans-Dapt and Hamburger's Performance have combined R&D forces to create their "Engine Swap In A Box" kits.

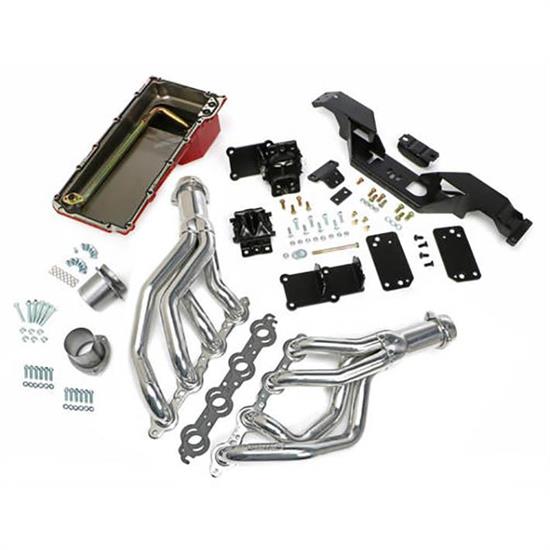

    Each kit comes complete with a special engine swap oil pan and pickup, a full set of engine swap mounts and pads, a complete set of engine swap headers with gaskets and mounting hardware, and select kits also include a transmission crossmember and mount pad.

    • Swaps GM LS Engine into 1967-69 Camaro/Firebird and 1968-74 Nova/Ventura
    • 1-3/4" tube diameter
    • 5 quart capacity
    • 3" exhaust diameter
    • Automatic transmission
    • Silver ceramic finish
    • Kit does not include an o-ring for the oil pump pickup tube
    • Oil pan does not have an option for an oil filter, therefore, oil filter relocation kit # 289-81019 is suggested

    Trans-Dapt 42012 Specifications

    MFG. Part #42012
    Sold in QuantityKit
    Air ConditioningYes
    Application CompatibilityEngine Swap
    Attachment StyleBolt-on
    Bushing IncludedYes
    Capacity5 quarts
    Collector AttachmentYes
    Collector Diameter3 Inch
    Collector StyleBall and Socket
    Drain Plug IncludedYes
    Flange Thickness0.375"
    Gasket Or Seal IncludedYes
    Hardware IncludedYes
    Header ColorSilver
    Header FinishCeramic
    Header StyleMid Length
    Motor Mount TypeFrame & Block Mounts
    Mount MaterialSteel
    Pickup IncludedYes
    Reducers IncludedYes
    Sump StyleWet Sump
    Windage Tray IncludedYes
