Traditional Throttle Shaft Master Rod End Kit with Heims
Build Your KitYou're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.

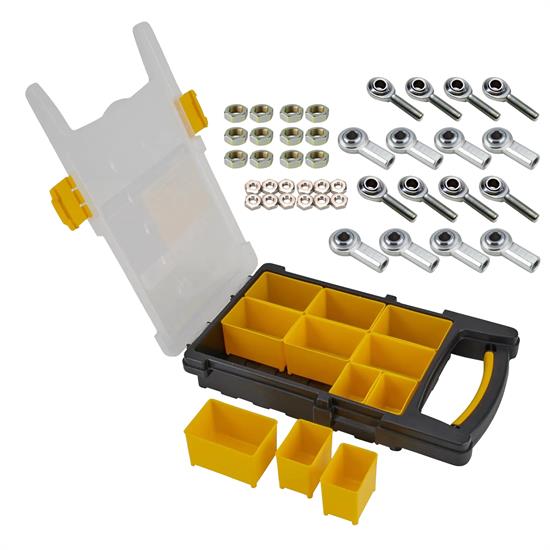

This complete kit comes with all of the most common rod end sizes used in throttle linkages. These standard rod ends are a general-purpose, two-piece design. They have a carbon steel body and a hardened ball with metal to metal contact. Along with the spherical rod ends on your vehicle, you'll probably need jam nuts. This kit includes jam nuts that are made from premium steel (zinc-coated for corrosion prevention), as well as jam nuts that are made of 7075 aluminum alloy and are clear anodized for corrosion resistance. Also included is a portable small parts organizer to keep everything right where you want it and easily accessible. Keep this kit handy so you're never stuck missing the fitting you need!
- Rod Ends
- (8) 1/4" Steel Heim Joint Rod Ends
- 1/4"-28 Thread Pitch
- (2) LH Male Thread - 175-0301
- (2) RH Male Thread - 175-0101
- (2) LH Female Thread - 175-0401
- (2) RH Female Thread - 175-0201
- (8) 3/16" Steel Heim Joint Rod Ends
- 10-32 Thread Pitch
- (2) LH Male Thread - 175-0300
- (2) RH Male Thread - 175-0100
- (2) LH Female Thread - 175-0400
- (2) RH Female Thread - 175-0200
- (8) 1/4" Steel Heim Joint Rod Ends
- Jam Nuts
- (6) 1/4" LH Steel Jam Nuts
- (6) 1/4" RH Steel Jam Nuts
- (6) 10-32 LH Aluminum Jam Nuts
- (6) 10-32 RH Aluminum Jam Nuts
- Titan Tools 11-Bin Small Parts Organizer
- Transparent quick-view top
- Dual top locks
- Built-in handle
- (7) Medium Bins: 3-1/8 x 2-1/8 x 1-7/8 inches
- (4) Small Bins: 2-1/8 x 1-1/2 x 1-7/8 inches
- Made of durable polypropylene
Applications: Clutch, brake, steering linkage, and suspension components on moderate horsepower applications.
Assembly Tip: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

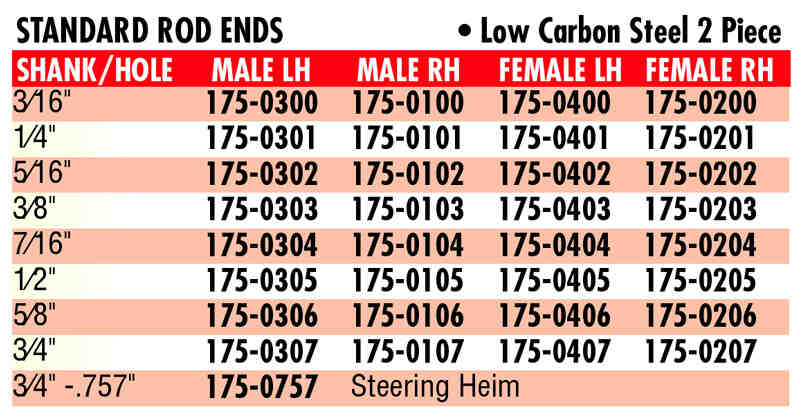

Standard Rod End Chart (GIF)
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
Titan Tools 21228 Small Parts Organizer, 11 BinPart # 72821228Qty x 1
Steel Jam Nuts, 1/4 Inch-28 Left Hand NF Fine Thread, Pack/6Part # 1756041-LHQty x 1
Steel Jam Nuts, 1/4 Inch-28 Right Hand NF Fine Thread, Pack/6Part # 1756041-RHQty x 1
Aluminum Jam Nuts, 10-32 LH, Pack/6Part # 3159593Qty x 1
Aluminum Jam Nuts, 10-32 RH, Pack/6Part # 3159592Qty x 1
Standard Steel Heim Joint Rod Ends, 1/4 Inch LH MalePart # 1750301Qty x 2
Standard Steel Heim Joint Rod Ends, 1/4-28 RH MalePart # 1750101Qty x 2
Standard Steel Heim Joint Rod Ends, 1/4-28 RH FemalePart # 1750201Qty x 2
Standard Steel Heim Joint Rod Ends, 1/4-28 LH FemalePart # 1750401Qty x 2
Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) LH MalePart # 1750300Qty x 2
Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) RH MalePart # 1750100Qty x 2
Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) RH FemalePart # 1750200Qty x 2
Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) LH FemalePart # 1750400Qty x 2
