#718CR9190
Total Seal Piston Rings 4.250 plus over size 1/16x1/16x3/16
- Extensively tested in virtually every form of race engine with the same increases in ring sealing time after time.
- 5-Ring set
- Outfits 8 Pistons
$166.19
/set
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
- Extensively tested in virtually every form of race engine with the same increases in ring sealing time after time.
- 5-Ring set
- Outfits 8 Pistons
Key Specs
| MFG. Part # | Select Oversize |
| Brand | Total Seal |
| Piston Ring Style | C |
| Piston Ring Diameter | Select Oversize |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
For years Total Seal has been leader in performance ring technology. These conventional style ring sets featuring a plasma moly ductile iron top ring, cast second and a 3-piece oil ring.
Charts

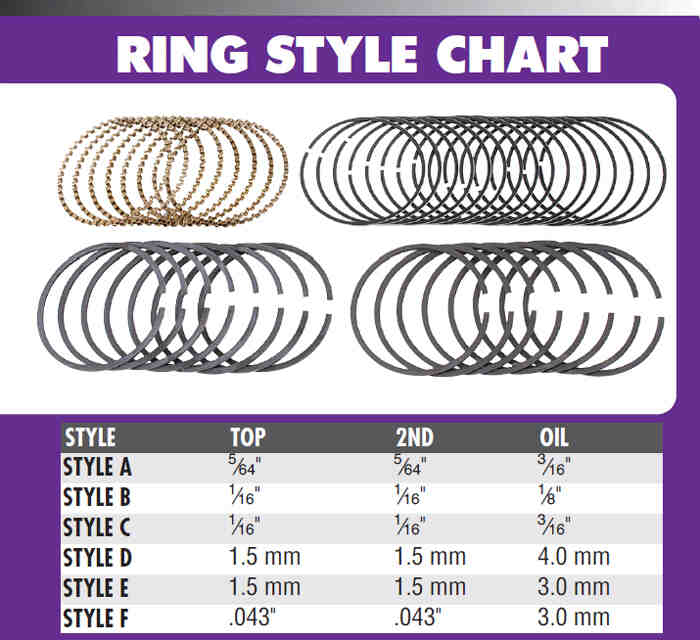

Ring Style Chart (GIF)
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Oversize to see |
| Brand | Total Seal |
| Piston Ring Style | C |
| Piston Ring Diameter | Select Oversize to see |
| GENERAL | |
| Piston Ring Design | Conventional |
| Gapless | No |
| Gas Ported | No |
| Top Ring Included | Yes |
| Top Ring Material | Ductile Iron |
| Top Ring Thickness | 1/16" |
| Top Ring Facing Material | Plasma-Moly |
| Second Ring Included | Yes |
| Second Ring Material | Cast Iron |
| Second Ring Thickness | 1/16" |
| Second Ring Facing Material | Cast Iron |
| Oil Ring Included | Yes |
| Oil Ring Material | Stainless Steel |
| Oil Ring Thickness | 3/16" |
| Oil Ring Tension | Standard Tension |
| Sold in Quantity | Set |
| File Fit | Select Oversize to see |
