#718M0690
Total Seal Piston Rings 4.125 plus over size 1/16x1/16x3/16
$381.57
/set
Factory Shipped
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Key Specs
| MFG. Part # | Select Over Size |
| Brand | Total Seal |
| Piston Ring Style | C |
| Piston Ring Diameter | Select Over Size |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
For years, Total Seal has led the field in piston ring technology. These file fit Maxseal sets feature ductile iron gapless top rings, conventional 2nd rings, & standard tension oil rings.
Charts

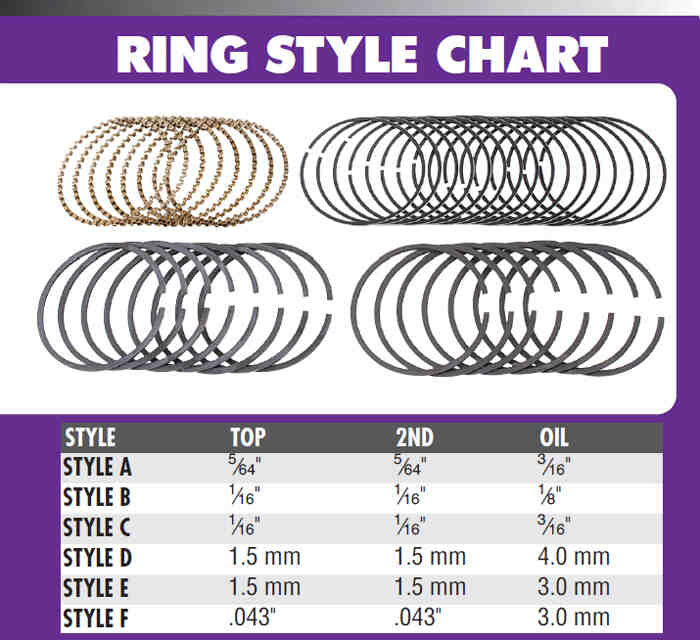

Ring Style Chart (GIF)
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Over Size to see |
| Brand | Total Seal |
| Piston Ring Style | C |
| Piston Ring Diameter | Select Over Size to see |
| GENERAL | |
| Piston Ring Design | Gapless Top Ring |
| Gapless | Yes |
| Gas Ported | No |
| Top Ring Included | Yes |
| Top Ring Material | Ductile Iron |
| Top Ring Thickness | 1/16" |
| Top Ring Facing Material | Plasma-Moly |
| Second Ring Included | Yes |
| Second Ring Material | Ductile Iron |
| Second Ring Thickness | 1/16" |
| Second Ring Facing Material | Ductile Iron |
| Oil Ring Included | Yes |
| Oil Ring Material | Stainless Steel |
| Oil Ring Thickness | 3/16" |
| Oil Ring Tension | Gold Power Low Tension |
| Sold in Quantity | Set |
| File Fit | Yes |
Ratings & Reviews
5
1 Review
Ratings & Reviews
5
1 Review
5
1 reviews
5
1
4
0
3
0
2
0
1
0
Filter by Ratings
Total Seal Piston Rings Worked Great!
5.0
8 months ago
Max
Havre, MT
Verified
Installed Total Seal Piston Rings in my race motor. They installed easily and worked great!
Would Recommend
Showing 1 of 1 reviews
Questions & Answers
Questions & Answers
1 Question • 1 Answer
Do these rings have a moly or plasma moly coating
by Jimbo
• 15 years ago
1 answer
View Answer
1 of 1 questions shown
