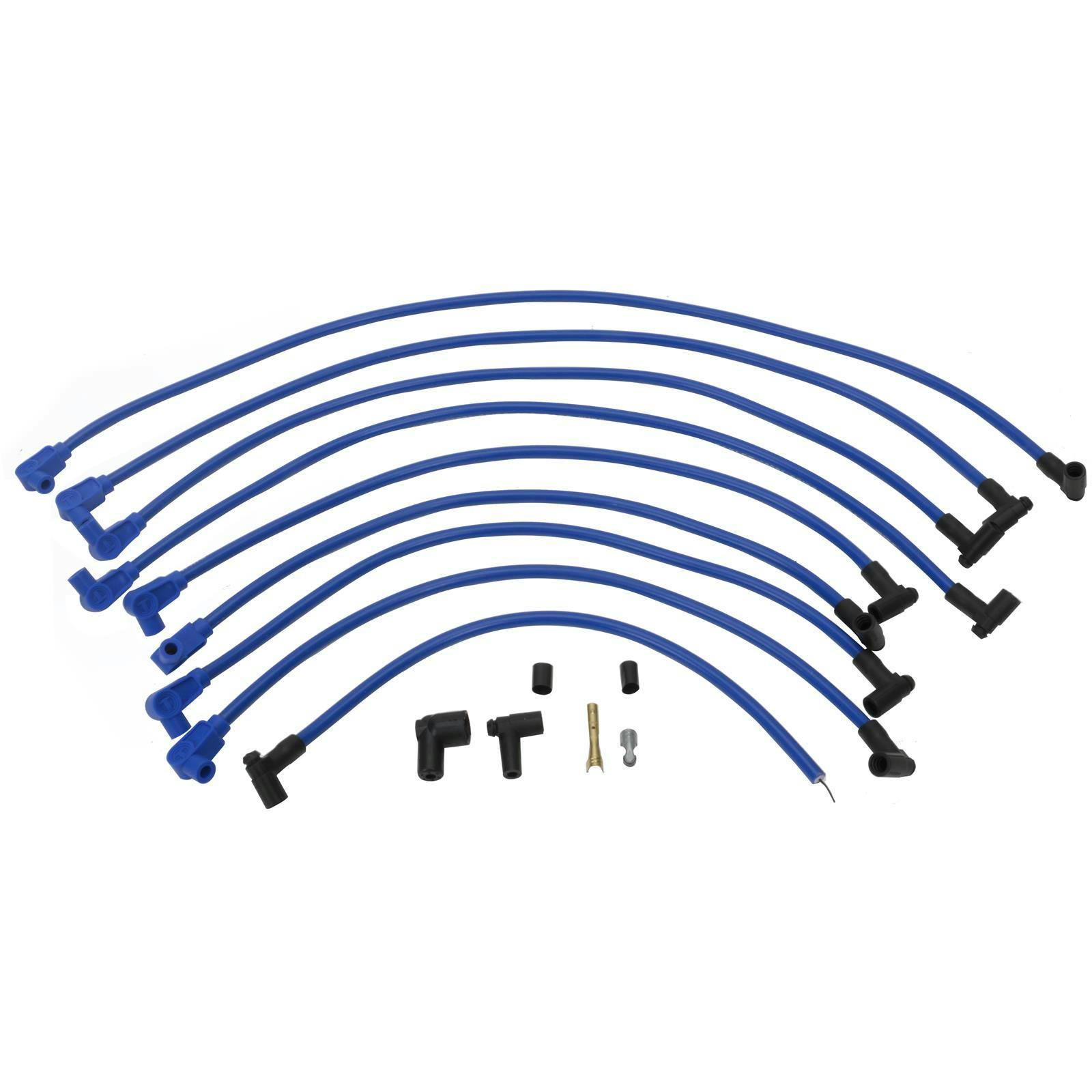

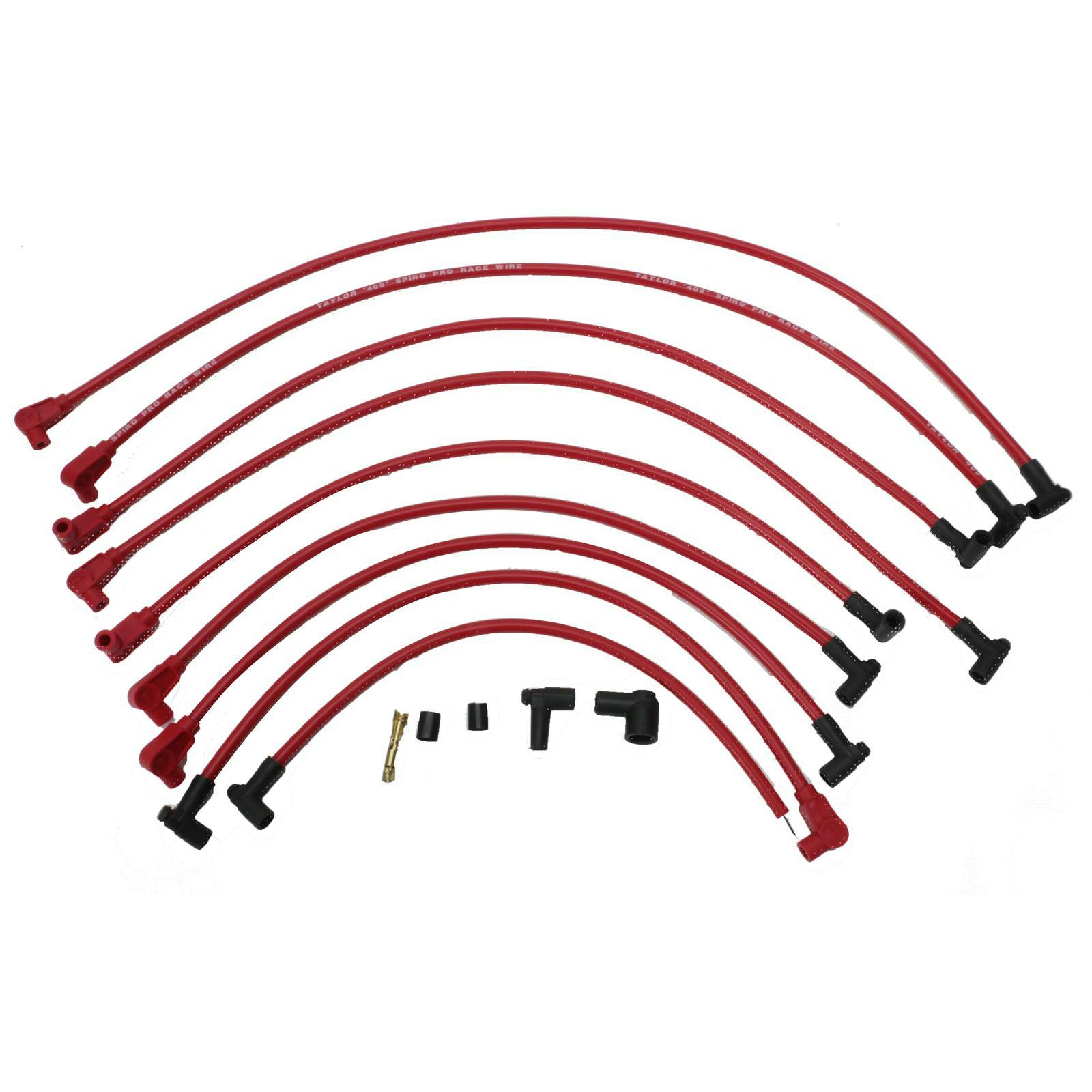

Taylor Pro Race Ignition Wire Set, SBC
Discontinued
This item is currently not available
Shop all Taylor Cable 409 Pro Race Spark Plug Wire Sets
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
- Small Block Over valve cover 409 Pro Race Ignition Wire Sets
- Taylor's .409-inch, 10.4mm diameter high performance ignition wires are available for street or track applications
- "409” ignition wires provide continuous heat protection up to 600-degrees Fahrenheit and 102,000 volts dielectric strength and are recommended for extreme under hood temperatures and open wheel racing
- Features a Spiral-Wound core with 350 ohms per foot resistance for EMI and RFI suppression delivering maximum fire power without radio interference and recommended for use with multiple-spark discharge and electronic ignition systems
- Available in three color choices, Black, Red, and Blue, with color coordinated low profile 100% silicone PRO BOOTS featuring vibration proof double spring locking spark plug terminals
Guides & Documents
Warranty Information
Click for details
Warranty Information
Click for details
Warranty (PDF)
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Color to see |
| Brand | Taylor |
| Conductor Style | Spiral Core |
| Diameter | 10.4 mm |
| GENERAL | |
| Assembled | Yes |
| Spark Plug Wire Color | Select Color to see |
| Spark Plug Boot Ends | 90 Degree |
| Spark Plug Boot Material | Silicone |
| Spark Plug Boot Color | Select Color to see |
| RFI Suppression | Yes |
| Distributor Terminal Ends | Male/HEI |
| Distributor Boot Material | Silicone |
| Distributor Boot Color | Select Color to see |
| Coil Wire Included | No |
| Wire Routing Type | Universal |
| Spark Plug Wire Resistance | 350 ohms/ft. |
| GTIN Code | Select Color to see |
| Sold in Quantity | Set |
