#91605188
Tapered 1/4 Turn Fastener Plates and Stepped Springs
- 10 Quarter Turn tapered spring plates
- 10 stepped springs
- 20 - 1/8" rivets
$15.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Oval Track Cars, Steel, Natural, 1.50" Overall Length
- 10 Quarter Turn tapered spring plates
- 10 stepped springs
- 20 - 1/8" rivets
- Zinc plated springs for corrosion resistance
Comes as a Kit
View Kit Components
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91605188 Details
Speedway Motors 91605188 Details
This kit provides three vital pieces to holding your body together. Tapered plates matched with stepped springs and 1/8" rivets. The step is approximately 0.250". Overall height of spring is 0.400" to 0.425". Eye-to-eye measurement is 1-3/8".
Kit Includes
(1) Tapered Quarter Turn Fastener Spring Plates, Pack/10
(1) Speedway Stepped Quarter Turn Fastener Springs, Pack of 10
(1) 1/8 Inch Rivets for 1/4 Turn Plates, Pack of 20
Charts

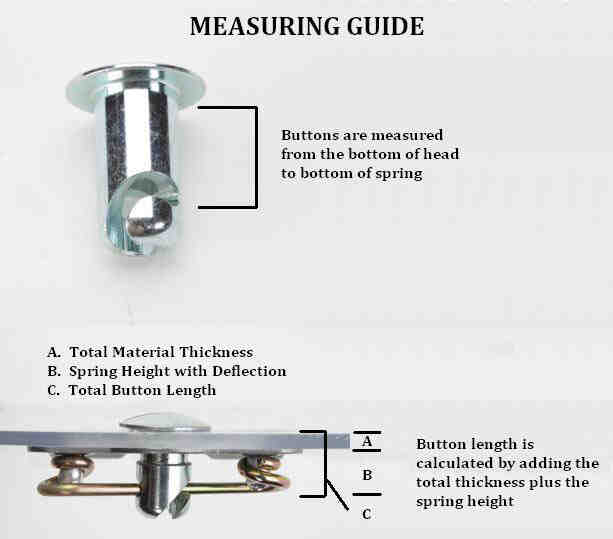

Measurement Guide (JPG)
Speedway Motors 91605188 Specifications
Speedway Motors 91605188 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91605188 |
| Brand | Speedway Motors |
| GENERAL | |
| Material Type | Steel |
| Finish | Natural |
| Overall Length | 1.50" |
| Overall Width | 1.88" |
| Overall Thickness | .06" |
| Hole Diameter | .43" |
| Sold in Quantity | Kit |
