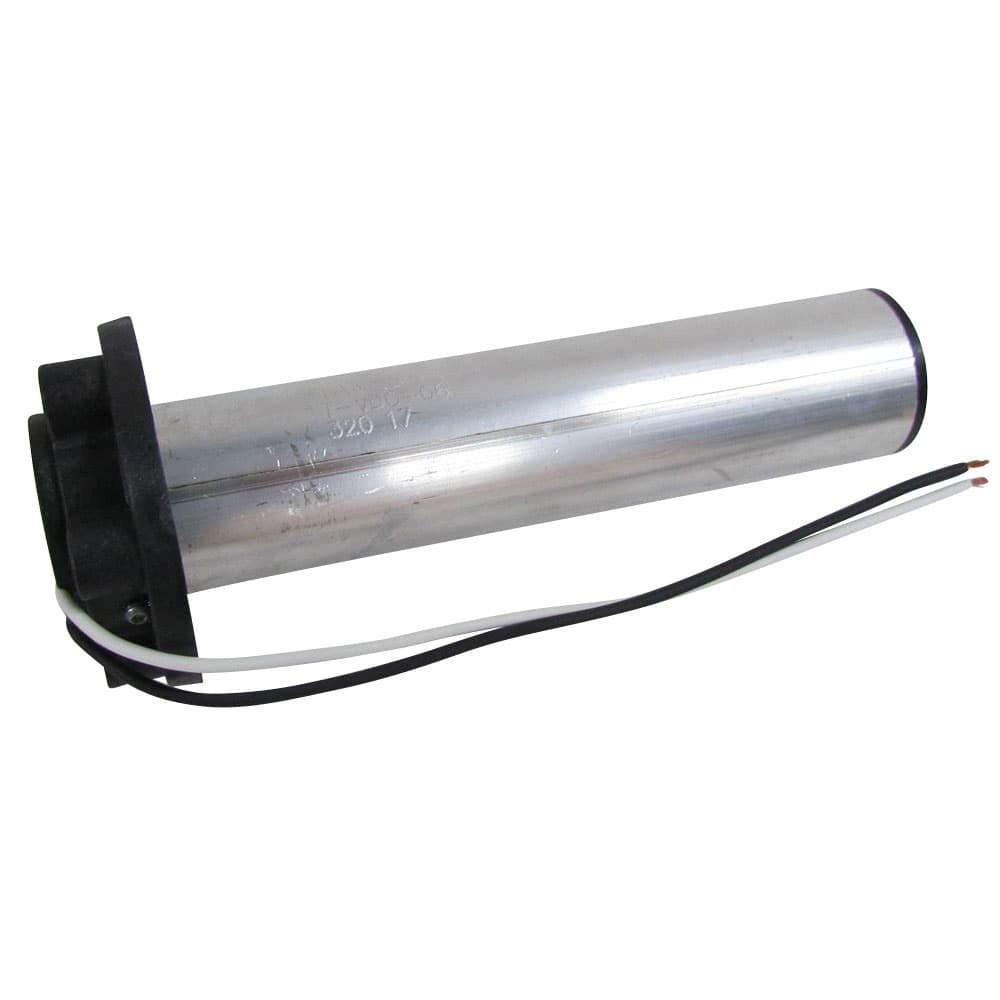

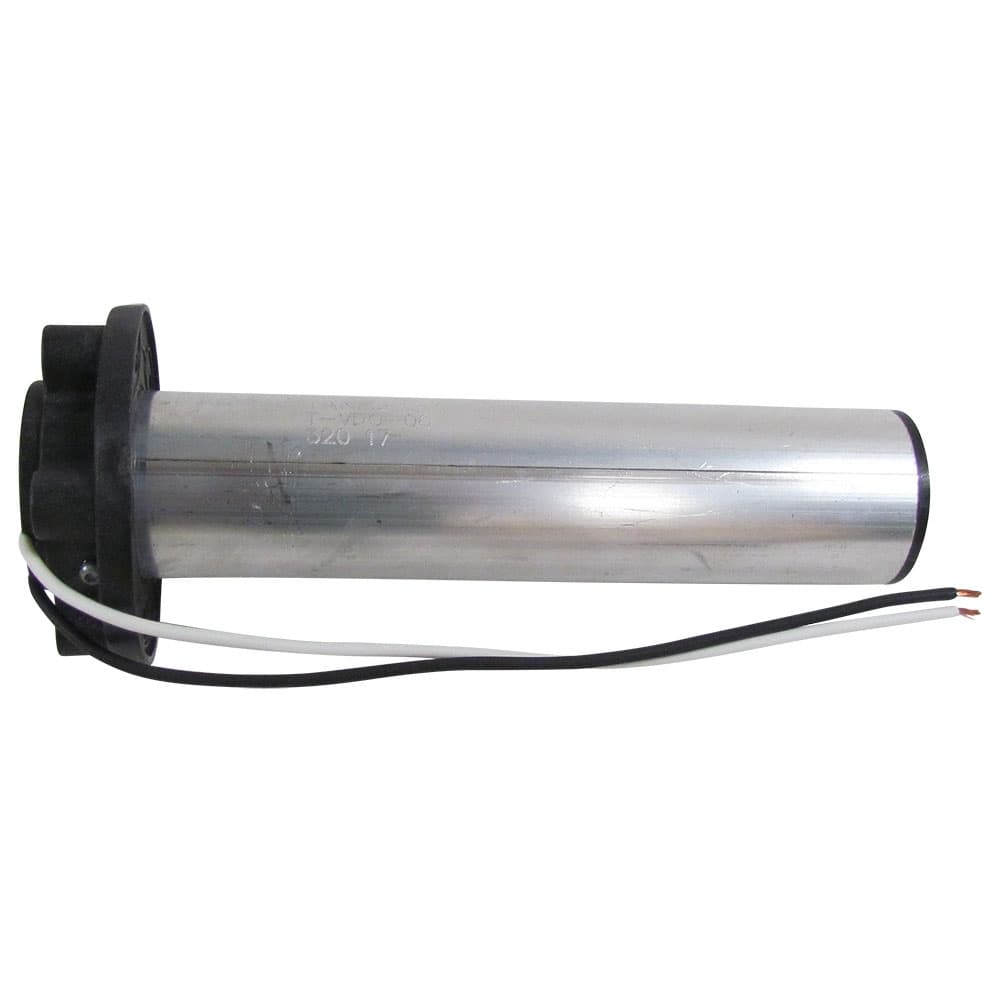

Tanks T-GML-06 Floatless Fuel Sending Unit, 0-90 Ohm

Most aftermarket fuel senders use a rotating float arm and resistance cards to measure the amount of fuel in a tank which can lead to erratic pointer movements. This revolutionary design comes with many benefits! This is ideal for applications where a conventional swing arm will not fit due to clearance issues. The tubular design acts as a dampener to prevent the gauge pointer from moving due to fuel slosh. The floatless fuel sender has no side to side motion, which means it has no moving parts to wear out. It is top mounted and utilizes the aftermarket standard SAE 5 hole mounting flange and comes complete with neoprene gasket and mounting hardware. This sender is available in five different ohm ranges: 0-30, 0-90, 73-10, 240-33 and 10-180 and is compatible with gasoline, diesel, oils, and many other fluids.

Application Listing:

• 0-90 Ohms - GM 1965 and up - T-GML-**

** Represents the size of tube length (1" increments) from the bottom of the mounting flange. At least 1/4" of clearance is needed from the end of the tube to the bottom of the tank.
