#9100971
Tanks Inc. Fuel Tank Kit for 1953-1954 Chevy Car, Steel w/Sender
- Dimensions measure 29-1/2" x 21-1/4" x 9-1/4"
- Specifically designed for the 1953-1954 Chevy cars
- Tank comes with integrated internal baffles and an internal reservoir tray
$305.99
/kit
In Stock
$311.98
Save $5.99
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Custom Replacement Fuel Tank Style, 18 gallons Capacity
- Dimensions measure 29-1/2" x 21-1/4" x 9-1/4"
- Specifically designed for the 1953-1954 Chevy cars
- Tank comes with integrated internal baffles and an internal reservoir tray
- Fuel Tank Sender Assemblies feature 240 ohms empty, 33 ohm full sender
- This fuel sender comes with a seal and all mounting hardware
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9100971 |
| Fuel Tank Style | Custom Replacement |
| Fuel System Type | EFI | Carb |
| Capacity | 18 gallons |
| Material Type | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9100971 Details
Speedway Motors 9100971 Details
Fuel Tank

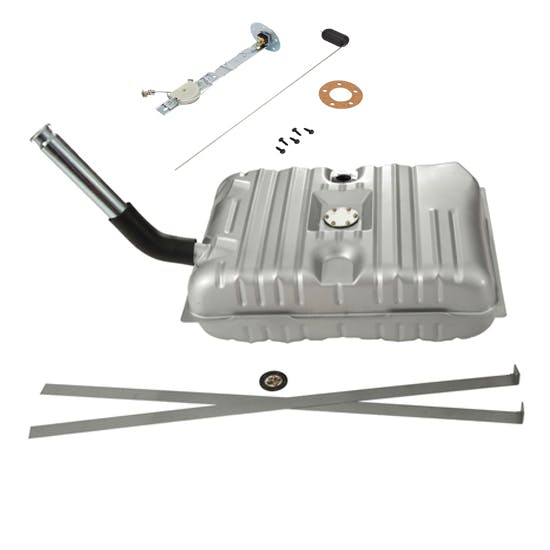

This 18 gallon fuel tank kit from Tanks Inc. features a large 3/8" NPT pickup tube. It is compatible with your 1953-1954 Chevy car. It includes mounting straps, gaskets, and O-ring sealed screws.
- Large 3/8" NPT Internal Pickup Tube
- Internal Reservoir Tray - Absolute Necessity for Fuel Injection
- Bolt-in! No Cutting or Welding!
- Block-Off plate for non fuel injected cars
- Includes mounting straps, gaskets & O-ring sealed screws
- 53-CGX Overall Size: 29-1/2" x 21-1/4" x 9-1/4" (18 Gallons)
Note: When using the 53-CGX tank with a GPA series pump a 3/8" NPT pipe plug will be needed to block off the internal fuel tank pickup tube.
Sending Unit
These sending units are also included in our 910-65042 fuel level gauge kit. They will work in tanks from 6" to 24" deep and can be used as a right hand or left hand swing unit with minor adjustment. This fuel sender comes with a seal and all mounting hardware.
- 240 ohms empty, 33 ohm full
- Adjustable depth from 6" to 24"
- Right or left hand swing
- 2-3/4" flange OD
- Overall Length: 15.50"
- Includes sealing gasket and mounting hardware
Learn more about selecting the proper fuel sending unit by reading our tech article, Fuel Sending Units.
Charts
Speedway Motors 9100971 Specifications
Speedway Motors 9100971 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9100971 |
| Brand | Speedway Motors |
| Fuel Tank Style | Custom Replacement |
| Fuel System Type | EFI | Carb |
| Capacity | 18 gallons |
| Material Type | Steel |
| Finish | Galvanized |
| Color | Natural |
| Sending Unit Included | Yes |
| Fuel Pump Included | No |
| Overall Length | 29.5" |
| Overall Width | 21.25" |
| Overall Height | 9.25" |
| Fuel Capacity Range | 15.00-19.99 Gallons |
| GENERAL | |
| Sold in Quantity | Kit |
| Ohm Range | 240-33 Ohm |
| Outlet Fitting | 3/8" NPT |
| Filler Neck Included | Yes |
