#9100972
Tanks Inc. Fuel Tank Kit for 1949-1952 Chevy Car, Steel w/Sender
- The included fuel level sender is for aftermarket fuel gauges. This is a 240 Ohms empty/33 ohms full sender. It won't work with the original fuel gauge
- Features an alloy coated steel construction to protect against corrosion
- Includes a 1-1/2" ID mandrel formed fuel-proof connecting hose for easy installation
$305.99
/kit
In Stock
$311.98
Save $5.99
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Custom Replacement Fuel Tank Style, 18 gallons Capacity
- The included fuel level sender is for aftermarket fuel gauges. This is a 240 Ohms empty/33 ohms full sender. It won't work with the original fuel gauge
- Features an alloy coated steel construction to protect against corrosion
- Includes a 1-1/2" ID mandrel formed fuel-proof connecting hose for easy installation
- Specifically designed to fit the 1949-1952 Chevy
- This fuel sender comes with a seal and all mounting hardware
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 9100972 |
| Fuel Tank Style | Custom Replacement |
| Fuel System Type | EFI | Carb |
| Capacity | 18 gallons |
| Material Type | Steel |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9100972 Details
Speedway Motors 9100972 Details
Fuel Tank

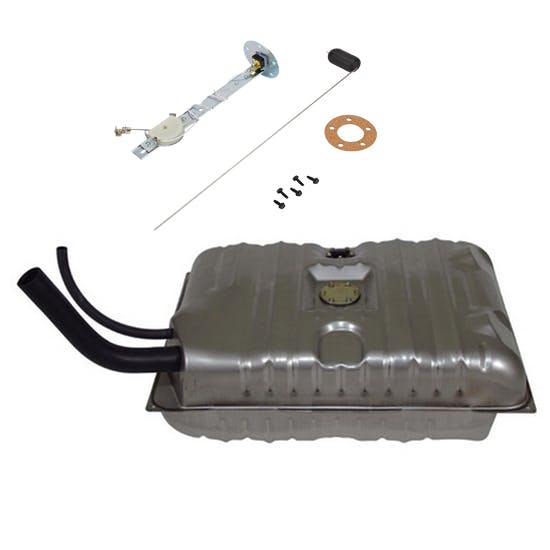

This 18 gallon fuel tank kit from Tanks Inc. features a large 3/8" NPT pickup tube. It is compatible with your 1949-1952 Chevy car. It includes mounting straps, gaskets, and O-ring sealed screws.
- Alloy Coated Steel to protect against corrosion
- Painted for additional protection
- Internal Baffles
- Large 3/8" NPT Internal Pickup Tube
- 1" deeper for extra capacity
- Block-Off plate for non fuel injected cars
- 1-1/2" ID Mandrel formed fuel-proof connecting hose for easy installation
- Accept any 5 bolt after market sender such as Classic, Stewart Warner, VDO, Autometer, etc
- Includes mounting straps, gaskets & O-ring sealed screws
- 51-CGX (18 Gallons)
Note: When using the 51-CGX tank with a GPA series pump a 3/8" NPT pipe plug will be needed to block off the internal fuel tank pickup tube.
Sending Unit
These sending units are also included in our 910-65042 fuel level gauge kit. They will work in tanks from 6" to 24" deep and can be used as a right hand or left hand swing unit with minor adjustment. This fuel sender comes with a seal and all mounting hardware.
- 240 ohms empty, 33 ohm full
- Adjustable depth from 6" to 24"
- Right or left hand swing
- 2-3/4" flange OD
- Overall Length: 15.50"
- Includes sealing gasket and mounting hardware
Learn more about selecting the proper fuel sending unit by reading our tech article, Fuel Sending Units.
Charts
Speedway Motors 9100972 Specifications
Speedway Motors 9100972 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9100972 |
| Brand | Speedway Motors |
| Fuel Tank Style | Custom Replacement |
| Fuel System Type | EFI | Carb |
| Capacity | 18 gallons |
| Material Type | Steel |
| Finish | Painted |
| Color | Silver |
| Sending Unit Included | Yes |
| Fuel Pump Included | No |
| Overall Length | 29.25" |
| Overall Width | 21.25" |
| Overall Height | 9.25" |
| Fuel Capacity Range | 15.00-19.99 Gallons |
| GENERAL | |
| Sold in Quantity | Kit |
| Ohm Range | 240-33 Ohm |
| Inlet Fitting | 3/8" NPT |
| Filler Neck Included | Yes |
Ratings & Reviews
4.2
5 Reviews
Customers appreciate the product for its perfect fit and good replacement features, including a sending unit. They applaud the functionality and high-quality of materials used. Some modifications may be required for straps, however, overall, users recommend it over others for its superior qualities. Despite a different size unit neck, it sets the bar high for efficient performance and satisfaction.
Ratings & Reviews
4.2
5 Reviews
Customers appreciate the product for its perfect fit and good replacement features, including a sending unit. They applaud the functionality and high-quality of materials used. Some modifications may be required for straps, however, overall, users recommend it over others for its superior qualities. Despite a different size unit neck, it sets the bar high for efficient performance and satisfaction.
4.2
5 reviews
5
3
4
1
3
0
2
1
1
0
Filter by Ratings
Yes
5.0
5 months ago
Tex
Pierce Nebraska
Fuel tank fuel gauge rubber hose to connect to filling neck
Would Recommend
Maybe
2.0
a year ago
Boynecars
Boyne city mi
Verified
Gas tank was incorrect. The tank has a left lower gas spout. In the photos it shows in the middle left side. The sending unit did not fit this tank. I can't use it. We had to fabricate the tank for the oldsmobile. This was not for a 1949 oldsmobile. Very disappointed!
Would Not Recommend
Fast delivery
5.0
a year ago
Chevy55
Yadkinville north Carolina
Verified
Replacing old tank
Would Recommend
GREAT PRODUCT
5.0
2 years ago
SCOTT
MONROE, NORTH CAROLINA
Verified
IT WAS A PREFECT FIT IN MY CAR
Would Recommend
Good replacement, sending unit is included.
4.0
4 years ago
Blue
Ballinger,Tx
Verified
Good replacement fit. Expect to do some work on the straps. Sending unit included. Unit neck different size than original hose.
Would Recommend
Showing 5 of 5 reviews
Questions & Answers
2 Questions • 2 Answers
Questions & Answers
2 Questions • 2 Answers
Does it include the mounting straps?
by Fourdoor
• 2 years ago
1 answer
View Answer
Will this tank support an in-tank EFI pump and does it have a return line port? thank you
by schol
• 2 years ago
1 answer
View Answer
2 of 2 questions shown
Fitment
Fitment
1950-1952 Chevy Bel Air
1949-1952 Chevy Fleetline
1949-1952 Chevy Sedan Delivery
1949-1952 Chevy Styleline Deluxe
1949-1952 Chevy Styleline Special
