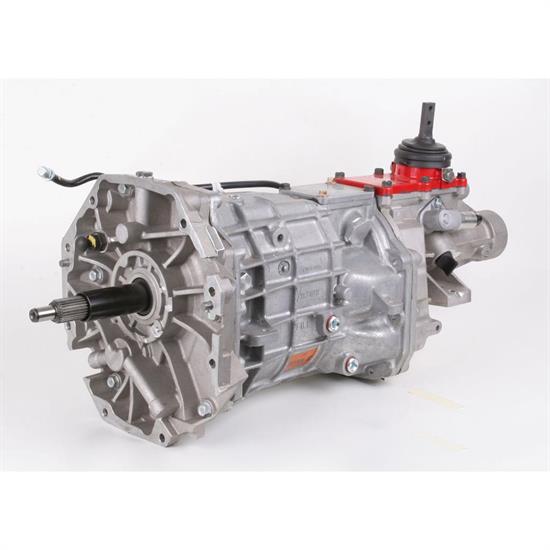

TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio

TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio

T56, TKO, 6-Speed Transmission Speeds, 700 ft./lbs. Torque, 26 Input Shaft Spline Count

0 Reviews | 0 Answered Questions
In Stock
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select Vehicle
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
X
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
TREMEC TUET16362 T56 Magnum-F GM Manual Transmission, Close Ratio
Zoomed In Image
Part # 91029040
$3,395.00
each
Call to Order
Add to Buildlist
Compare
Details
Reviews
Q&A
Videos & Articles

Details

Transmission Speeds:
6-Speed
Torque:
700 ft./lbs.
Input Shaft Spline Count:
26
Output Shaft Spline Count:
31
Bellhousing Included:
No
Yoke Included:
No
Shifter Included:
No
Case Material:
Aluminum
First Gear Ratio:
2.66:1
Gear Ratio (2nd):
1.78:1
Gear Ratio (3rd):
1.30:1
Gear Ratio (4th):
1.00:1
Gear Ratio (5th):
0.80:1
Gear Ratio (6th):
0.63:1
GTIN Code:
791090707794
MFG. Part #:
TUET16362
Sold in Quantity:
Each

Info

The long-awaited and highly-anticipated F-car-specific version of TREMEC's popular Magnum 6-speed has finally arrived! Designed to replace T-56 transmissions in 1998-2002 GM F-bodies, the Magnum-F leverages TREMEC's TR-6060/Magnum architecture in order to provide fourth-gen enthusiasts significantly improved performance and relief from a shrinking pool of quality T-56 replacement parts.

Born by the release of the original T-56 Magnum (now known simply as "Magnum") back in 2009, the Magnum-F fills a longstanding void in the overall Magnum line with regard to shifter locations; addressing not only LS1-powered 1998-2002 F-bodies, but several other applications that utilize a similar shifter position. Beneficiaries include third-generation F-bodies, LT1-powered fourth-gens, LS-swapped late models of all varieties, and sport compact applications such as A80 Supras, FD RX-7s, and more! Where the original Magnum shifter locations may prove too far forward, and the extended length Magnum XL's too far back, the Magnum-F's in-between position often proves to be just right.

Inside, the Magnum-F benefits from the same durable componentry found in many of today's hardest hitting OEM muscle & sports cars. Over the T-56, the Magnum-F boast increased face-width on all gears, a robust combination of double and triple cone synchronizers, enhanced webbing in the main case, provisions for a cooler circuit and more! TREMEC also took the opportunity to upgrade the shifter to an isolator type unit, like that found on its Magnum XL. The shifter reduces in-cabin noise and vibrations while at the same time providing the precise and communicative shift feel that all Magnums are known for. And like all TREMEC aftermarket transmissions, the Magnum-F is made from 100% brand-new OEM-quality content.

  • The T-56 replacement trans 4th-generation F-body fans have been waiting for!
  • A straightforward swap into 1998-2002 LS1 Camaros & Firebirds
    • Requires use of 31-spline slip yoke and conversion universal joint. Not included
  • Suitable for conversions in 1993-1997 LT1 Camaros & Firebirds
    • Requires change of flywheel, clutch, hydraulic slave and other parts
  • Ideal for any custom application where F-body T-56 transmissions were previously desired due to their shifter location
  • Say goodbye to expensive custom builds and questionable quality rebuilds
  • Gear Ratios
    • 1st - 2.66, 2nd - 1.78, 3rd - 1.30, 4th - 1.00, 5th - 0.80, 6th - 0.63, Rev - 2.90

Charts

T-56 Magnum Service Manual (PDF)

Some parts are not legal for use in California or other states with similar laws/regulations
