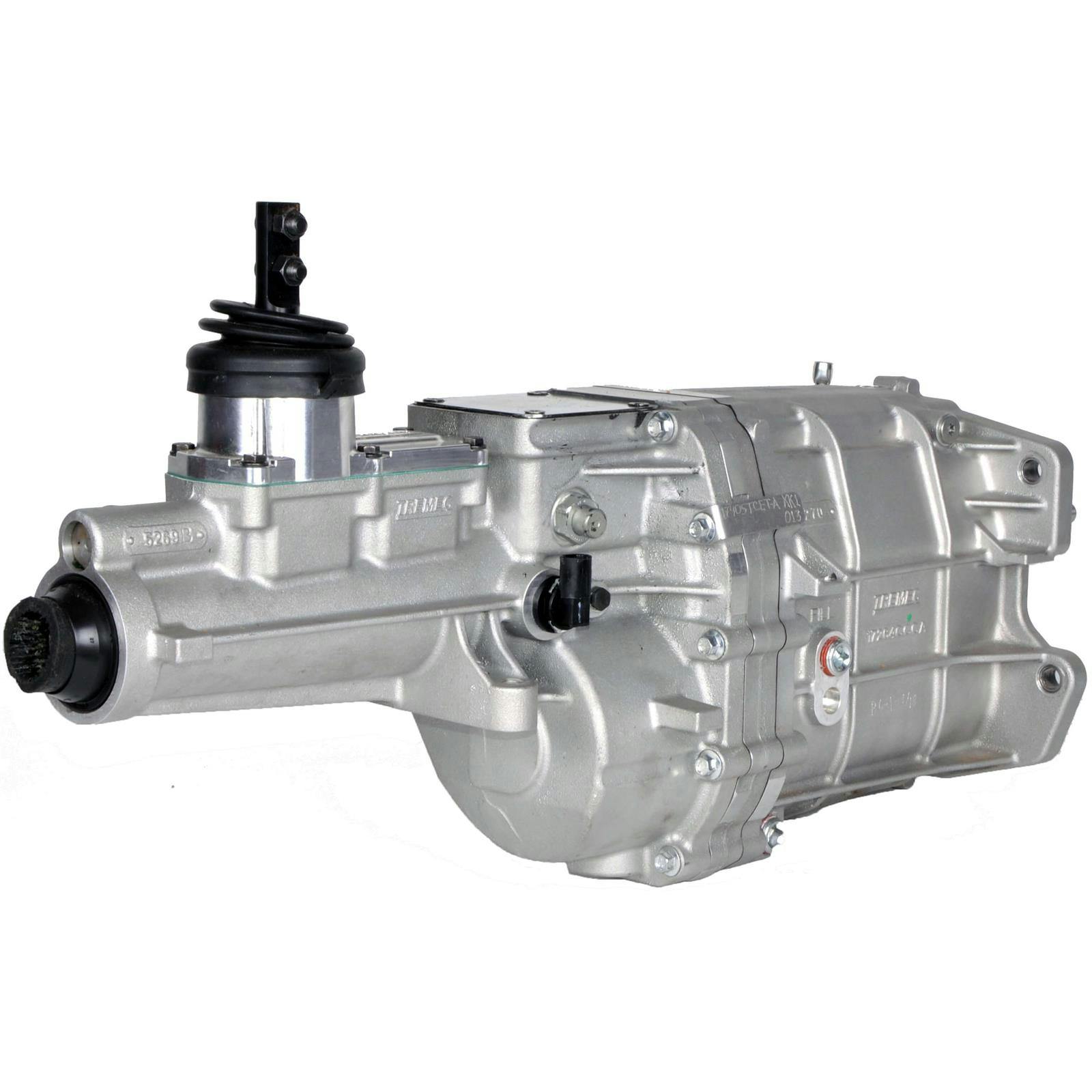

TREMEC TCET18083 TKX Wide Ratio 5-Speed Chevy Manual Transmission

TREMEC is pleased to announce the release of the new TKX, a 5-speed RWD manual transmission developed solely for the aftermarket.

For the development of the new transmission, TREMEC engineers took a forward-looking approach to finding the best and most efficient solution. This included universal packaging, excellent shifting performance, and extreme durability.

The end result is superior shift-ability with smooth shifts at high RPMs through the use of multi-cone synchronizers and hybrid synchronizer rings. At the same time, noise, vibration and harshness (NVH) performance is optimized with a gear layout to best control stress levels, while providing structural stiffness with a ribbed, 3-piece aluminum housing. Durability is further optimized with oversized gear widths, gaskets at all flanges, and caged needle bearings in all gear positions.

Whether restoring or upgrading a classic muscle car or a 1930s-era roadster coupe, the new TREMEC TKX 5-speed RWD manual transmission delivers a top-quality drivetrain solution.

• 600 lb.-ft. of torque capacity; capable of engines speeds of 8,000 RPMs with shifts at 7,500 RPMs.
• Designed for multiple applications with three shifter locations.
• Compact, end-loaded design provides clearance in most transmission tunnels without floor modifications.
• Increased case strength with three-piece aluminum housing provides outstanding structural stiffness.
• Gaskets at all flanges simplifies installation and eliminates fluid leaks.
• Superior shift-ability through use of multi-cone synchronizers and hybrid synchronizer rings made of sintered bronze and carbon
• All gears and shafts made from special grade steel (ASTM 4615), providing increased torque carrying capacity.
• Equipped with a high-performance short-throw billet aluminum shifter that isolates road noise, while providing clean, crisp shifts.
• Robust design with internal three-rail shift system and steel shift forks.
• Wide gear width increases gear life and torque capacity.
• GM case pattern and input configuration, integrated GM transmission mount pattern
• Gear Ratios
  • 1st - 3.27, 2nd - 1.98, 3rd - 1.34, 4th - 1.00, 5th - 0.72, Rev - 3.00
• Supplied speedometer drive gear, 7 tooth count
