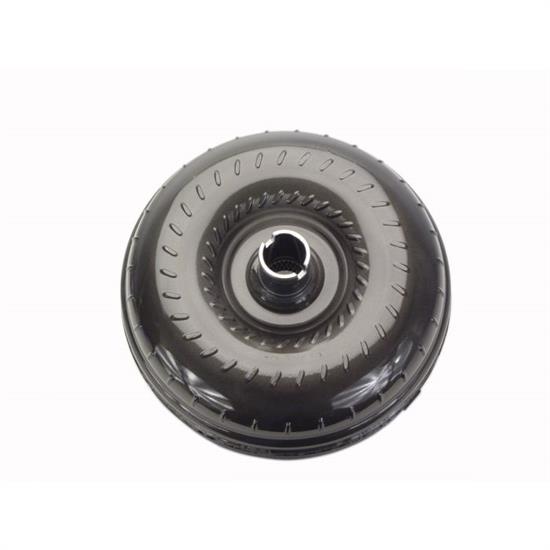

TCI 241400 Breakaway TH350 Converter Wide Bolt
TCI 241400 Breakaway TH350 Converter Wide Bolt
TCI Automotive

|

#282241400

TCI 241400 Breakaway TH350 Converter Wide Bolt

$599.95

/each

Factory Shipped


Quantity

Need Help? Call to Order

Add to a list

Share

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

TH350, TH400, 10" Diameter, Anti-Ballooning Plate

    See more details

    Key Specs

    MFG. Part #241400
    BrandTCI Automotive
    Diameter10"
    Lockup CompatibleNo
    See more specs

    Need To Know

    Need help?

    855.313.9176
    View the Help Center

    Quick and Easy Returns

    Return Policy

    TCI Automotive 241400 Details

    TCI 9", 10" and 11" Drag Race Torque Converters can be run in applications with up to 750 horsepower and are most commonly used for a bracket race or street/strip application that leans more toward the "strip." Stall speeds vary depending on application but the average is 3800-4500 RPM for 9" and 10" converters and 3000 RPM for the 11" version. Furnace-brazed and reinforced fins increase durability. Needle bearings reduce drag and increase thrust capacity. Three sets of Torrington bearings replace normal thrust washers used in OEM and some aftermarket converters to triple the thrust capacity capabilities. Hardened steel pump hubs increase strength, durability and longevity while decreasing wear. Increased strength and holding capacity of high load sprags ensure stator stays locked when converter stalls and guarantees converter will stall correctly run after run. Ballooning plates (9" and 10" only) double strength of converter when using transbrake and/or power adders. 360 Degree Mounting Ring.

    This Breakway Converter is designed specifically for '65 to '91 TH350/375/400/425. Provides 2200 to 2400 Stall behind Small Blocks and 2400 to 2600 Stall behind Big Blocks. Wide Bolt Pattern. HD Anti-balloon Plate.

    Application

    TH400

    Warranty Information

    TCI Automotive provides a limited warranty covering manufacturing defects for 30 days on racing equipment and 90 days on street/strip equipment, valid only for the original purchaser with proof of purchase. Approved transmission fluid and cooler flush products are required, and claims must be authorized through Edelbrock Group Tech Support. The warranty excludes modified, improperly installed or maintained, abused, accident‑damaged, improperly cooled, or unauthorized repaired products.

    TCI Automotive 241400 Specifications

    KEY SPECS
    MFG. Part #241400
    BrandTCI Automotive
    Diameter10"
    Lockup CompatibleNo
    GENERAL
    Anti-Ballooning PlateYes
    BalancedYes
    Furnace-BrazedYes
    Mounting Hardware IncludedYes
    Mounting Hardware Quantity4
    GTIN Code788120003230
    Sold in QuantityEach
    Mounting Hardware Type3/8-16 bolts
