Designed for the serious full-tree bracket racer, TCI Transbrake Transmissions deliver the quickest and most consistent reaction times in the business. These transmissions are blue-printed and built one unit at a time to ensure that you get quality parts. Designed for horsepower ranges of up to 750 horsepower, they are able to withstand the rigorous use of week-to-week racing and back-to-back passes. Available in both reverse and standard patterns (on select models only); Pro Tree versions are available and have a neutral reverse for safety.

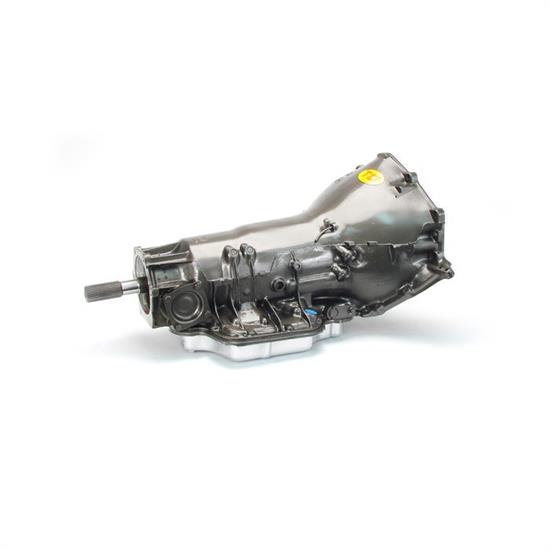

Our Full Manual Competition TH400 Trans features performance clutches, nitrided steel plates, HP powerbands and sprag races for applications up to 750 HP. Premium clutches, modified front drum and 300m input shaft and a +2 qt cast pan.

Application

1964-1990 TH400

Warranty Information

TCI Automotive provides a limited warranty covering manufacturing defects for 30 days on racing equipment and 90 days on street/strip equipment, valid only for the original purchaser with proof of purchase. Approved transmission fluid and cooler flush products are required, and claims must be authorized through Edelbrock Group Tech Support. The warranty excludes modified, improperly installed or maintained, abused, accident‑damaged, improperly cooled, or unauthorized repaired products.

CA Prop 65

TCI Automotive 212506 Specifications

KEY SPECS
MFG. Part #	212506
Brand	TCI Automotive
Valve Body Style	Full manual
Lockup Compatible	No
Yoke Style	Slip On
Finish	Painted
SFI Rating	Not SFI-approved

GENERAL
Number of Gears	Three
Torque Converter Included	No
Trans-Brake Included	Yes
Transmission Case Material	Aluminum
Fluid Fill Location	Case
Transmission Pan Style	Deep
Transmission Pan Material	Aluminum
Tailshaft Length	4"
First Gear Ratio	2.48:1
Flexplate Shield Built In	No
Dipstick Included	No
Sold in Quantity	Each
GTIN Code	788120031288
