T-Bucket Aluminum Fuel Tank for Channeled Body w/Sender

Fuel Tank

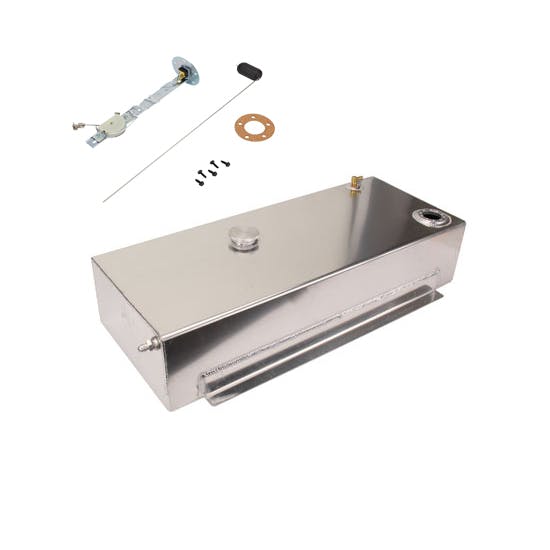

This fabricated aluminum fuel tank is built for our 1923 T-bucket kits with a 20" pick-up box. It features a raised fill neck w/ cap, AN-6 fuel pickup, and a rollover vent. Designed to be mounted to the left side which leaves room for your battery. Has a 10.4 gallon capacity.

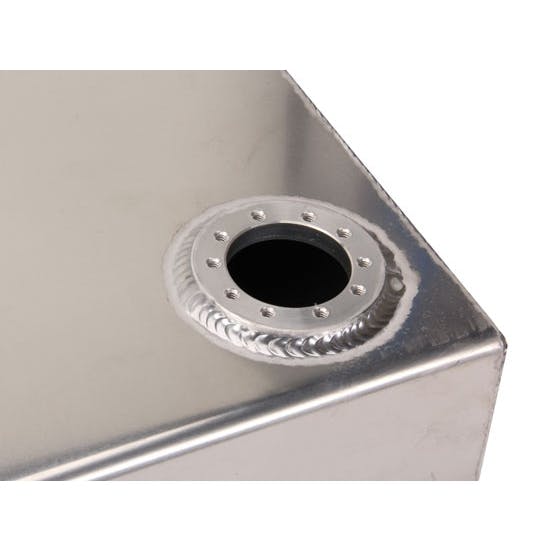

• Pre-cut hole for fuel level sender
• Can use LH swing sender only

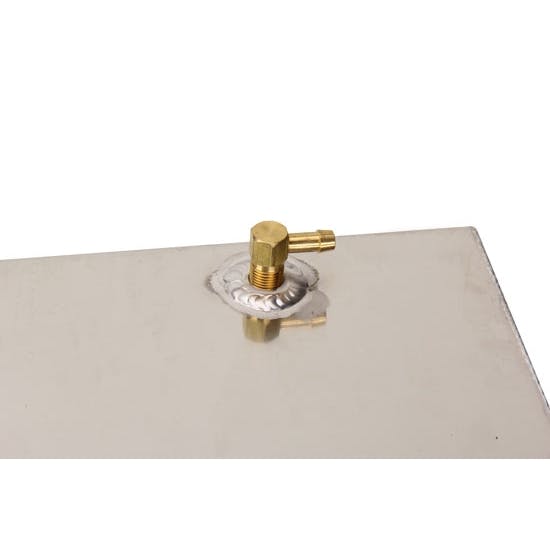

• Rollover vent valve included

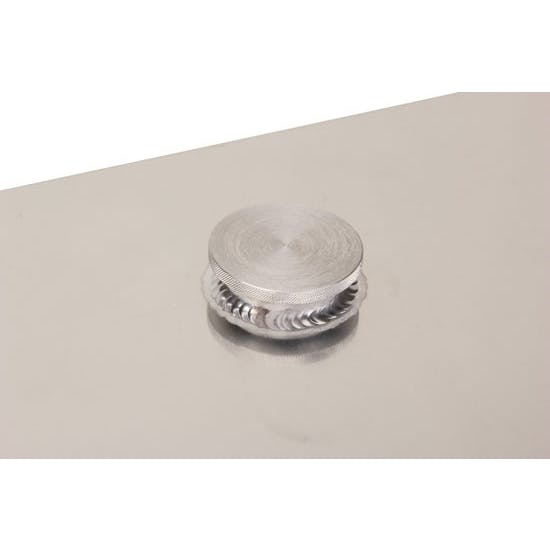

• Includes non-vented cap

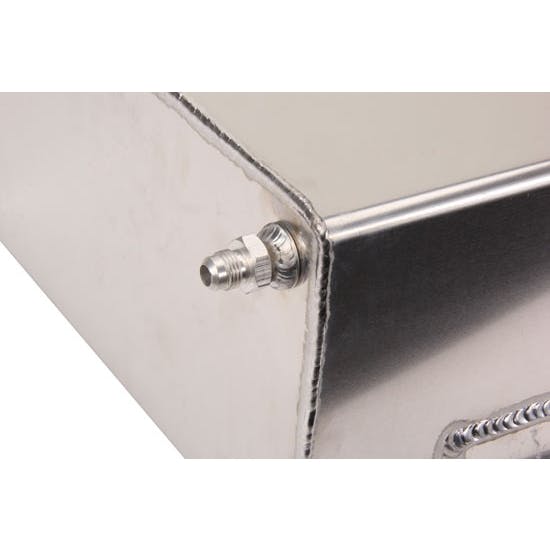

• Fuel outlet (AN-6) is on the side of the tank
• Fuel gauge sending unit is included and will need to be purchased separately.

This tank WILL clear the deck lid when used in conjunction with a channeled Speedway Body.

Fuel Sender

These sending units are also included in our 910-65042 fuel level gauge kit. They will work in tanks from 6" to 24" deep and can be used as a right hand or left hand swing unit with minor adjustment.  This fuel sender comes with a seal and all mounting hardware.

• 240 ohms empty, 33 ohm full
• Adjustable depth from 6" to 24"
• Right or left hand swing
• 2-3/4" flange OD
• Overall Length: 15.50"
• Includes sealing gasket and mounting hardware

Learn more about selecting the proper fuel sending unit by reading our tech article, Fuel Sending Units.

Fuel Level Gauge Installation Instructions

Fuel Level Sender Installation Instructions

• Length of Tank:  30-1/4"
• Width of Tank:  12-1/4"
• Height of Tank:  6-1/2"
• Overall Width:  14-1/2"  (including 'L' brackets which run the length of the bottom of the tank)
• Overall Height:  7-1/4"
• Capacity:  10.4 gallons
• Fuel gauge sending unit is not included and will need to be purchased separately.
