Universal Fit, Single Joint Universal Joint Style
| MFG. Part # | 401-50618 |
| Universal Joint Style | Single Joint |
| End #1 | 3/4" Round |
| End #2 | 1"-48 Spline |
| Spline Count | 48 |
Need help?
855.313.9176Quick and Easy Returns

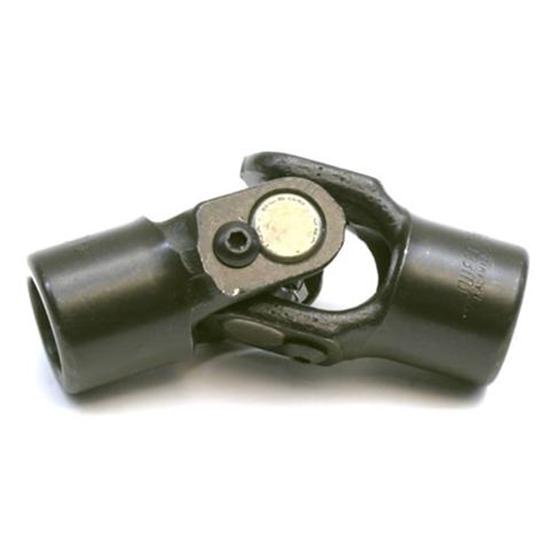

Return PolicyDont jeopardize your safety with inferior quality steering components. Speedway offers only the finest steering U-joints available. Made by Sweet Manufacturing. These steering universal joints have a 3/4" round weld-on end.
Note: GM columns measure slightly less than 1" while IDIDIT and Flaming River columns measure a true 1". DO NOT interchange these u-joints.
Application
STEP 1
Be sure to measure the diameter of the shaft and count the number of splines on the shaft. Some shafts have a blank spot ground on one side. To get the correct number of splines, use a flat edge and cover the blank half of the shaft through the diameter and count the splines on the other half. Multiply that number by 2, thus giving you the total number of splines on the full circumference of the shaft.
STEP 2
Choose which shaft type best suits your application: 3/4" weld on, 3/4" DD or 1" DD.
STEP 3
With these two pieces of information at hand, refer to our chart to find the appropriate part number of the ujoint for your specific application.
Guides & Documents
| KEY SPECS | |
|---|---|
| MFG. Part # | 401-50618 |
| Brand | Sweet Manufacturing |
| Universal Joint Style | Single Joint |
| End #1 | 3/4" Round |
| End #2 | 1"-48 Spline |
| Spline Count | 48 |
| GENERAL | |
| Spline End | 1"-48 |
| Overall Length | 3.75" |
| Outside Diameter | 1.355" |
| Max Operating Angle | 30 ° |
| Set Screw Included | Yes |
| Material Type | Steel |
| Finish | Oxide |
| Color | Black |
| Sold in Quantity | Each |
4.2
6 Reviews
Customers appreciate our product for its small size which provides necessary clearance for header applications. The product stands out for its excellent build quality, ease of installation and great fit. Despite facing issues with compatibility in specific scenarios, such as Flaming River Steering Column, customers laud the fact that it performs on par, if not better, than more expensive alternatives in the market. This affirms that our product not only fulfills its purpose effectively but also delivers superior value for money.
4.2
6 reviews
5
4
4
0
3
1
2
1
1
0
Filter by Ratings
Great product, Works great!
5.0
4 years ago
Garage Monkey
Nothern Indiana
Verified
Its small size gave me the clearance I needed for my header application.
Would Recommend
Doesn't fit Flaming River Steering Column
2.0
6 years ago
Neil
St. Louios Mo
The 1" -48 spline end does not fit a Flaming River Steering Column (FR30002BK) shaft that is advertised by Flaming River as having a 1"-48 SHAFT. The U-Joint is too small. Not sure if this is an error on Flaming River or U-joint maker. The FR Steering column was for 68-72 GM A body. Device does look to be good quality though.
Would Not Recommend
others that I have used would slide on
3.0
13 years ago
porky1
Fargo, ND, USA
Verified
Splined end is too small ... had to force the part on the shaft
Would Not Recommend
Hard to find this part elsewhere, worked
5.0
13 years ago
racecar68dad
Soap Lake wa.
I looked all over locally, without success. Then I found Speedway and this part. Easy to find easy to buy, easy to install. This one part started my connection to speedway. Great company!!
Would Recommend
Steering U Loint
5.0
15 years ago
G Man
Dinuba, CA
Verified
Worked great. Well made and had no problems with the way it fit. Would use this again.
Would Recommend
As good as more expensive joints
5.0
16 years ago
Hot Rod Shop
Tuscumbia, Al
Verified
Fit and worked as good as more expensive joints.
