#66582223

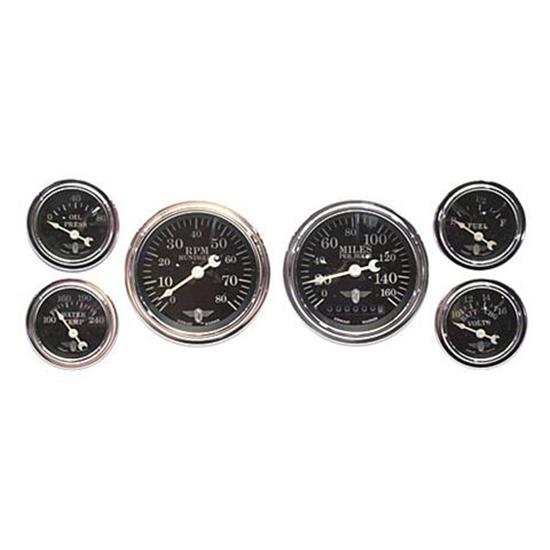

Stewart Warner 82223 Wings Six Gauge Set, Electric, Black Face
- Features curved glass lenses and chrome bezels
- Speedometer and tachometer have a 3-3/8" diameter
- Aux gauges measure 2-1/16" in diameter
$993.99
/set
In Stock
Order soon, only 3 left in stock!
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Analog Gauge Series, Black, Chrome
- Features curved glass lenses and chrome bezels
- Speedometer and tachometer have a 3-3/8" diameter
- Aux gauges measure 2-1/16" in diameter
- Classic black face and white lettering on the gauges are backlit for enhanced nighttime visibility
- Gauges have a total depth of 3-1/2"
Key Specs
| MFG. Part # | 82223 |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Black |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyStewart Warner 82223 Details
Stewart Warner 82223 Details
Stewart Warner is one of the oldest and most respected names in automotive instruments. The company's Wings-series gauges have classic design features like curved glass lenses, chrome bezels, teardrop pointers with crescent-moon tails, and distinctive Wings logos. They also boast Stewart Warner's rugged construction quality and precise performance.
Features all electric instruments: tachometer, speedometer, oil pressure gauge, water temperature gauge, fuel level gauge and voltmeter. Speedometers and tachometers measure 3-3/8". Accessory gauges are 2-1/16". Set includes necessary senders, tubing and instructions.
NOTE: Adapter #665-366ADB is required when using an electric speedometer with a Ford automatic transmission.
Charts
Guides & Documents
Stewart Warner 82223 Specifications
Stewart Warner 82223 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 82223 |
| Brand | Stewart Warner |
| Gauge Series | Analog |
| Gauge Style | Electric |
| Gauge Set Design | Dash Cluster |
| Gauge Face Color | Black |
| Bezel Finish | Chrome |
| GENERAL | |
| Sold in Quantity | Set |
| Notes | Features all electric instruments: tachometer, speedometer, oil pressure, water temperature, fuel level, and voltmeter. Set includes all necessary senders, tubing and instructions. |
| GTIN Code | 792157822238 |
| Number of Gauge Housings | 6 |
| Speedometer Diameter | 3-3/8 Inch |
| Tachometer Diameter | 3-3/8 Inch |
| Auxiliary Gauge Diameter | 2-1/16 Inch |
| Liquid Filled | No |
| Lighted | Yes |
| Lighting Type | Incandescent |
| Light Color | White |
| Needle Color | White |
| Lettering Color | White |
| Mount Type | Bolt-On |
| Speedometer Included | Yes |
| Tachometer Included | Yes |
| Oil Pressure Gauge Included | Yes |
| Oil Temperature Gauge Included | No |
| Water Pressure Gauge Included | No |
| Water Temperature Gauge Included | Yes |
| Fuel Pressure Gauge Included | No |
| Fuel Level Gauge Included | Yes |
| Vacuum Gauge Included | No |
| Volt Gauge Included | Yes |
| Ammeter Gauge Included | No |
| Odometer Gauge Included | Yes |
| Depth | 3.4" |
| Includes Tubing | Yes |
| Includes Bulb and Socket | Yes |
| Includes Light Covers | No |
| Includes Mounting Bracket(s) | Yes |
| Hardware Included | Yes |
| Fuel Sender Included | Yes |
| Speed Sender Included | Yes |
| Oil Pressure Sender Included | Yes |
| Turn Signals Included | No |
| Includes Wire Harness | No |
| Lens Style | Flat |
| Temperature Sensor Bung Included | Yes |
| Shape | Round |
| Hour Meter Included | No |
| Tripometer | No |
Ratings & Reviews
5
4 Reviews
Customers greatly appreciate the product's quality and practicality, accentuating its perfect fit for hot rod builds. Notably, they found the gauges to be of excellent quality, affirming their preference over vintage or restored sets. Even though one user mentioned price concerns, overall customer satisfaction was high with the product meeting the intended use, surpassing competitive products in terms of its superior features and quality. Numerous users have confirmed they would continue purchasing from us due to the quality and usability of our gauges.
Ratings & Reviews
5
4 Reviews
Customers greatly appreciate the product's quality and practicality, accentuating its perfect fit for hot rod builds. Notably, they found the gauges to be of excellent quality, affirming their preference over vintage or restored sets. Even though one user mentioned price concerns, overall customer satisfaction was high with the product meeting the intended use, surpassing competitive products in terms of its superior features and quality. Numerous users have confirmed they would continue purchasing from us due to the quality and usability of our gauges.
5
4 reviews
5
4
4
0
3
0
2
0
1
0
Filter by Ratings
yes i would buy any product from you
5.0
3 years ago
mike goucher
versailles ky
Verified
i ordered 3 sets of gauges so i could look at them in person. i'm just that way. old. i told you guys this before i ordered the last 2 sets. you said it was no problem and it wasn't. i made my choice and sent the rest back. excellent service. nice people on the phone. thanks. plan on ordering everything i need from you.
Would Recommend
It was exactly what I wanted and it came on time
5.0
5 years ago
Rick
Anchorage ak.
Verified
Price could be better
Would Recommend
These are perfect!!!
5.0
15 years ago
Gary the Garage
Juno Beach, FL
Verified
In a hot rod I'm building
Would Recommend
Great Gauges
5.0
16 years ago
FlynBrian48
Michigan
I sold ONE vintage SW gas gauge, needing restoration, and bought this entire set. Let somebody else hunt down a complete set, spend thousands restoring them, to get the same look.
Would Recommend
Showing 4 of 4 reviews
Questions & Answers
4 Questions • 4 Answers
Questions & Answers
4 Questions • 4 Answers
What wiring harness works with these guages
by Greg
• 7 years ago
1 answer
View Answer
What is the fuel gauge ohm range?
by CAS
• 8 years ago
1 answer
View Answer
Is there a gps sender that will work with this speedometer? Can not use the one sent with the speedometer.
by Gary
• 10 years ago
1 answer
View Answer
Does this kit include sending units for the gauges?
by brad
• 15 years ago
1 answer
View Answer
4 of 4 questions shown
