#9133946
Steering and Brake Kit for 46 Inch Ford Axle
- This complete kit allows you to install new spindles and disc brakes on your 1937-48 Ford style axle
- New 4140 steel forged spindles are a strong update to the OEM Ford spindles
- The spindles were modeled after the 1937-41 round-back design, and work with standard kingpins
Starting from
$820.99
/kit
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Straight Axle Front Suspension Type
- This complete kit allows you to install new spindles and disc brakes on your 1937-48 Ford style axle
- New 4140 steel forged spindles are a strong update to the OEM Ford spindles
- The spindles were modeled after the 1937-41 round-back design, and work with standard kingpins
- The included disc brake kit uses 11" vented rotors measuring 1" thick for optimal surface area without requiring oversize wheels
- The GM Metric 1978-88 calipers feature a 2-1/2" piston for greater stopping power
Key Specs
| MFG. Part # | Select Caliper Type, Bolt Pattern and Finish |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 1-3/4 Inch Lowered |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
This kit makes it easy to order a steering and brake kit in plain or chrome for your Ford axle. Included in kit are forged '37-'41 Ford spindles with fitted kingpins, 1-3/4" dropped bolt-on arms, 11" brake rotors with 5 on 4.5" or 5 on 4.75" bolt pattern, brackets, bearings and seals, mounting hardware, GM Metric calipers, spindle nuts, dust caps, brake lines with tabs, tie rod ends, and tie rod tube.
- Ford Spindles
- One piece forged 4140 steel
- Modeled after the 1937-41 round-back design
- Standard king pins fit to spindles
- Speedway 11" Brake Kit
- 11" vented iron rotor, 1" thick
- Wheel studs - 1/2" Fine (4-1/2" BP), 7/16" Fine (4-3/4" BP)
- GM Metric '78-'88 calipers, 2-1/2" piston
Choose 46" or 48" axle width kit. For spring over axles only.
Learn how to properly Bed-In your brake pads by reading our tech article. Bedding-In Brake Pad Procedure.
Charts
Front Axle/Suspension Tech Tips (GIF)
Kingpin Installation Instructions (PDF)
Brake Pad Brand Guide (JPG)
Disc Brake Installation Instructions (PDF)

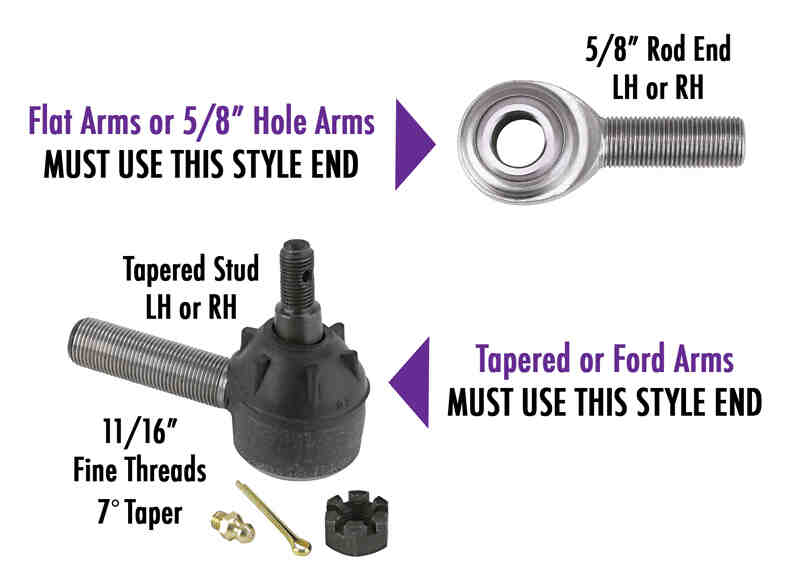

Steering Arm Ends Guide (GIF)
Cross Steering Guide (GIF)
Guides & Documents
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Caliper Type, Bolt Pattern and Finish to see |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 1-3/4 Inch Lowered |
| Control Arm Style | Not Included |
| Shock Type | Not Included |
| Spring Type | Not Included |
| Finish | Select Caliper Type, Bolt Pattern and Finish to see |
| Bolt Pattern | Select Caliper Type, Bolt Pattern and Finish to see |
| Rotor Diameter | 11 Inch |
| Spindle Style | Ford Custom |
| Dropped Spindles | No |
| Dropped Axle | No |
| Dropped Control Arms | Yes |
| Front Leaf Spring Style | Spring-Over Axle |
| Spindles Included | Yes |
| Brakes Included | Yes |
| Steering Included | Yes |
| Caliper Pistons | Single |
| Caliper Finish | Natural |
| Hardware Included | Yes |
| Rotor Type | Vented |
| Welding Required | No |
| Rotor Shape | Round |
| GENERAL | |
| Sold in Quantity | Kit |
| Notes | Includes rotors, spindles, bearings and seals, calipers, pads, caliper brackets, steering arms, tie rod ends, and tie rod tube. |
| Rotor Thickness | 1" |
| Stud Diameter | 0.5" |
| Stud Length | 1.6" |
| Hose Length | 18" |
| Drilled | No |
| Thread Pitch | 1/2"-20 |
