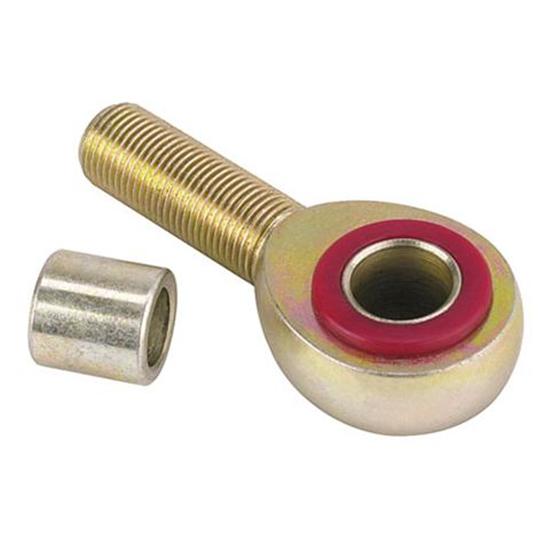

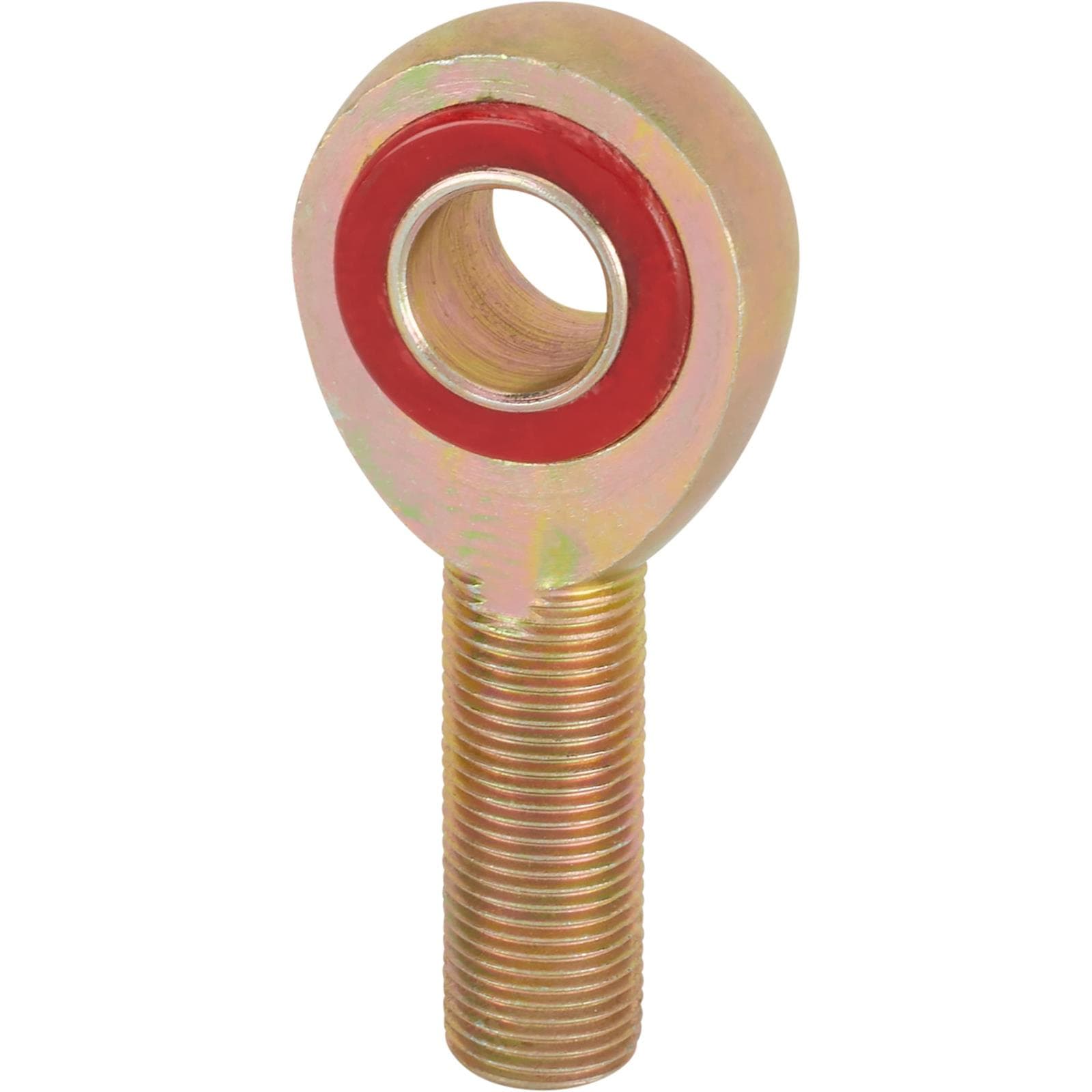

Steel Rod End Heim Joint, Poly Insert, 5/8 Inch
- Steel construction, zinc plating
- Rod ends have a red polyurethane insert that eliminates metal to metal contact
- Designed for radial loads only
$11.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
- Steel construction, zinc plating
- Rod ends have a red polyurethane insert that eliminates metal to metal contact
- Designed for radial loads only
- 5/8"-18 thread pitch
- 1-1/2" thread length
Key Specs
| Thread Type | Select Thread |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Steel |
| Hole Diameter | 0.625" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
These heavy duty steel rod ends have a red polyurethane insert that eliminates metal to metal contact, cushions shock and is quieter than a standard heim joint.
This rod end is designed for radial loads only, it does not articulate to compensate for mis-alignment as a spherical bearing rod end would.
NOT intended for use in 3-link, 4-link, steering or any other applications which put a twist, axial or side load on the joint.
Specifications
Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | Select Thread to see |
| Brand | Speedway Motors |
| Thread Type | Select Thread to see |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/8"-18 |
| Material Type | Steel |
| Hole Diameter | 0.625" |
| Rod End Style | Solid |
| Rod End Construction | 1-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | Polyurethane |
| Jam Nut Included | No |
| GENERAL | |
| Thread Length | 1.500" |
| Bushing Length | .75" |
| Overall Length | 3.40" |
| Center Hole to End of Shank | 2.59" |
| Notes | These heavy duty steel rod ends have a red polyurethane insert. Includes and extra bushing sleeve (.50" diameter). |
| Sold in Quantity | Each |
Ratings & Reviews
5
4 Reviews
Customers highly recommend the product for its confirmed noise reduction qualities and proper fit, particularly on panhard rods and adjustable rear sway bars. Noted for its superior quality and practicality, it effectively eliminates suspension noise, outperforming standard heim joints. Easy fabricating design is a bonus.
Ratings & Reviews
5
4 Reviews
Customers highly recommend the product for its confirmed noise reduction qualities and proper fit, particularly on panhard rods and adjustable rear sway bars. Noted for its superior quality and practicality, it effectively eliminates suspension noise, outperforming standard heim joints. Easy fabricating design is a bonus.
5
4 reviews
5
4
4
0
3
0
2
0
1
0
Filter by Ratings
I would and will buy again
5.0
2 years ago
Red
Paulden AZ
Verified
Used for sway bar links
Would Recommend
I would buy this product again
5.0
5 years ago
JSR
Palm Springs
Verified
These joints made my panhard rod super quiet! Thank you Speedway Motors!!
Would Recommend
5/8" rod end
5.0
8 years ago
Cal
Rockton, IL
Verified
The product fit properly and has eliminated suspension noise I had with standard heim joints.
Would Recommend
Great product
5.0
14 years ago
Tireman9
Akron, OH
Verified
Have designed and fabricated adjustable rear sway bar for 51 Chevy truck Hot Rod
Would Recommend
Showing 4 of 4 reviews
Questions & Answers
Questions & Answers
4 Questions • 5 Answers
What is the inside diameter of the poly bushing without the steel sleeve.
by CJOR
• 8 years ago
2 answers
View Answers
Understood these can't swivel like Heim joint, but can they tolerate 2 or 3 degrees of tilt against the pin axis?
by Chuwers
• 10 years ago
1 answer
View Answer
I am looking at using these on my ladder bar set up. Do they come in left and right thread and will they take the abuse. ? I am replacing the one that are in the car because I have a little noise now that I have noticed and they have been in the car for around thirty years. It's a street and strip Vega Panel with a 4-speed and 9" rear end set up. Only putting down around 300 HP to the wheels. Just thought it might quiet down things a little. Oh and do you have two , a right and left ?
by Robocop
• 13 years ago
1 answer
View Answer
what is the thread pitch
by aug
• 15 years ago
1 answer
View Answer
4 of 4 questions shown
