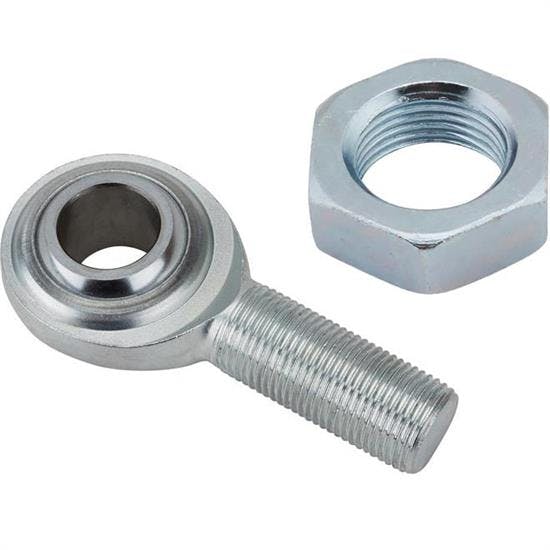

Steel Heim Joint Rod Ends for Steering Shaft, 3/4-16 RH w/Jam Nut
2 Reviews
|
Ask a Question
- Heavy-duty 3/4" right-hand heim to support steering shaft
- Perfect for custom steering shaft mounts and supports
- Important for steering setups that have multiple joints requiring a locating device for the steering shaft
See More
$17.98
kit
In Stock
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Steel, Zinc Plated
- Heavy-duty 3/4" right-hand heim to support steering shaft
- Perfect for custom steering shaft mounts and supports
- Important for steering setups that have multiple joints requiring a locating device for the steering shaft
- .757" ID hole easily slips over 3/4" steering shafts
- Jam nut included
Comes as a Kit
View Kit Components
See more details
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.757" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicyDetails
Details
Support your custom steering shaft with the perfect heim joint - designed specifically for hot rod steering shafts!
- Perfect for custom suspension components and steering shaft mounting
- Heavy-duty 3/4" right-hand heim to support steering shaft
- Clearance for 3/4" steering shafts
- Jam nut included
Specifications
Specifications
| KEY SPECS | |
|---|---|
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/4"-16 |
| Material Type | Steel |
| Hole Diameter | 0.757" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Jam Nut Included | Yes |
| GENERAL | |
| Speedway Motors Catalog Part # | 910-0887 |
| Thread Length | 1.75" |
| Rod End Ball Diameter | .88" |
| Rod End Head Width | 1.76" |
| Overall Length | 3.75" |
| Center Hole to End of Shank | 2.88" |
| Sold in Quantity | Kit |
