#9108548

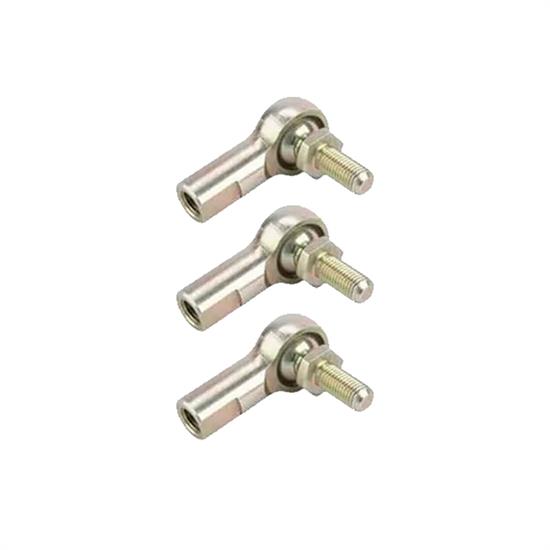

Steel 3/16 Inch LH Female Heim Joint Rod Ends with Stud, 3 Pack
$25.99
kit
In Stock
$26.97
Save $0.98
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, LH Female Thread Type, Steel, Natural
Comes as a Kit
View Kit Components
See more details
Key Specs
| Thread Type | LH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.188" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 9108548 Details
Speedway Motors 9108548 Details
These 3/16" rod ends can be used to create a trick throttle linkage system when combined with our swedged aluminum tubing.
Use with swedged aluminum throttle tube.
3/16" Stud/Thread
Pack of 3
Speedway Motors 9108548 Specifications
Speedway Motors 9108548 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 9108548 |
| Brand | Speedway Motors |
| Thread Type | LH Female |
| Rod End Attachment | Female Threads/Stud |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.188" |
| Rod End Style | PTFE Lined |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Jam Nut Included | No |
| GENERAL | |
| Notes | 3/16" (10-32) Pivot stud thread |
| Sold in Quantity | Set |
