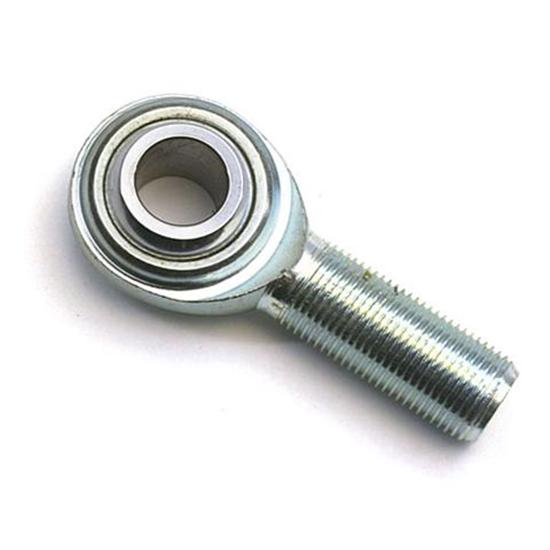

Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole

Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole

Universal Fit, LH Male Thread Type, Male Threads/Eyelet Rod End Attachment, Steel, Zinc Plated

29 Reviews | 1 Answered Question
In Stock
Can Ship FREE
STORE PICKUP
Availability
Store Pickup Availability
X
Lincoln, NE -
Phoenix, AZ -
Select your vehicle to verify fitment.
Select a vehicle to verify fitment.
Select Vehicle
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
X
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
Standard Steel LH Heim Joint Rod Ends, 11/16-18 Shank, 5/8 Hole
Zoomed In Image
Part # 1750328
$17.99
each
Call to Order
Add to Buildlist
Click to Login
Compare
Details
Reviews
Q&A
Videos & Articles
  • This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
  • The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
  • Used primarily for tie rods when converting from 11/16" threads to a 5/8" bore but can be used for various other applications as well
  • 11/16"-18 LH male rolled threads ensure strength and precision
  • 24 degrees of misalignment provides a wide range of motion without binding

Details

Thread Type:
LH Male
Rod End Attachment:
Male Threads/Eyelet
Thread Pitch:
11/16"-18
Material Type:
Steel
Hole Diameter:
0.625"
Rod End Style:
Metal-to-metal
Rod End Construction:
2-piece
Grease Fitting:
No
Finish:
Zinc Plated
Color:
Natural
Jam Nut Included:
No
MFG. Part #:
1750328
Sold in Quantity:
Each

Info

Every once in a while someone wants to use a rod end in place of a 11/16" tie rod. We listened to the requests and built them with 11/16"-18 RH or LH thread and accept a 5/8" thru-bolt.  Center of hole to end of threads 2-5/8"  thead length is 1-1/2".

Important Messages

  • Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
Some parts are not legal for use in California or other states with similar laws/regulations
