#1750102

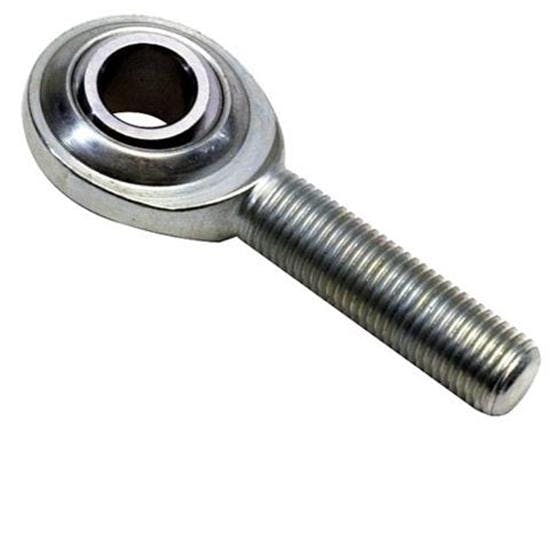

Standard Steel Heim Joint Rod Ends, 5/16-24 RH Male
2 Reviews
|
Ask a Question
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
See More
$5.99
each
In Stock
$10.99
Save $5.00
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Steel, Zinc Plated
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
- 5/16"-24 RH male rolled threads ensure strength and precision
- 22 degrees of misalignment provides a wide range of motion without binding
See more details
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Steel |
| Hole Diameter | 0.313" |
See more specs
Need To Know
Free Shipping on Orders Over $149
Shipping Policies & FAQsNeed help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750102 Details
Speedway Motors 1750102 Details
These right hand standard rod ends are a general purpose, two-piece design. They have a carbon steel body and a hardened steel ball without a race (metal to metal contact).
Applications: Clutch, brake, steering linkage, & suspension components on moderate horsepower applications.
Assembly: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Speedway Motors 1750102 Specifications
Speedway Motors 1750102 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750102 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 5/16"-24 |
| Material Type | Steel |
| Hole Diameter | 0.313" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Jam Nut Included | No |
| GENERAL | |
| Speedway Motors Catalog Part # | 175-0102 |
| Sold in Quantity | Each |
