#1750100

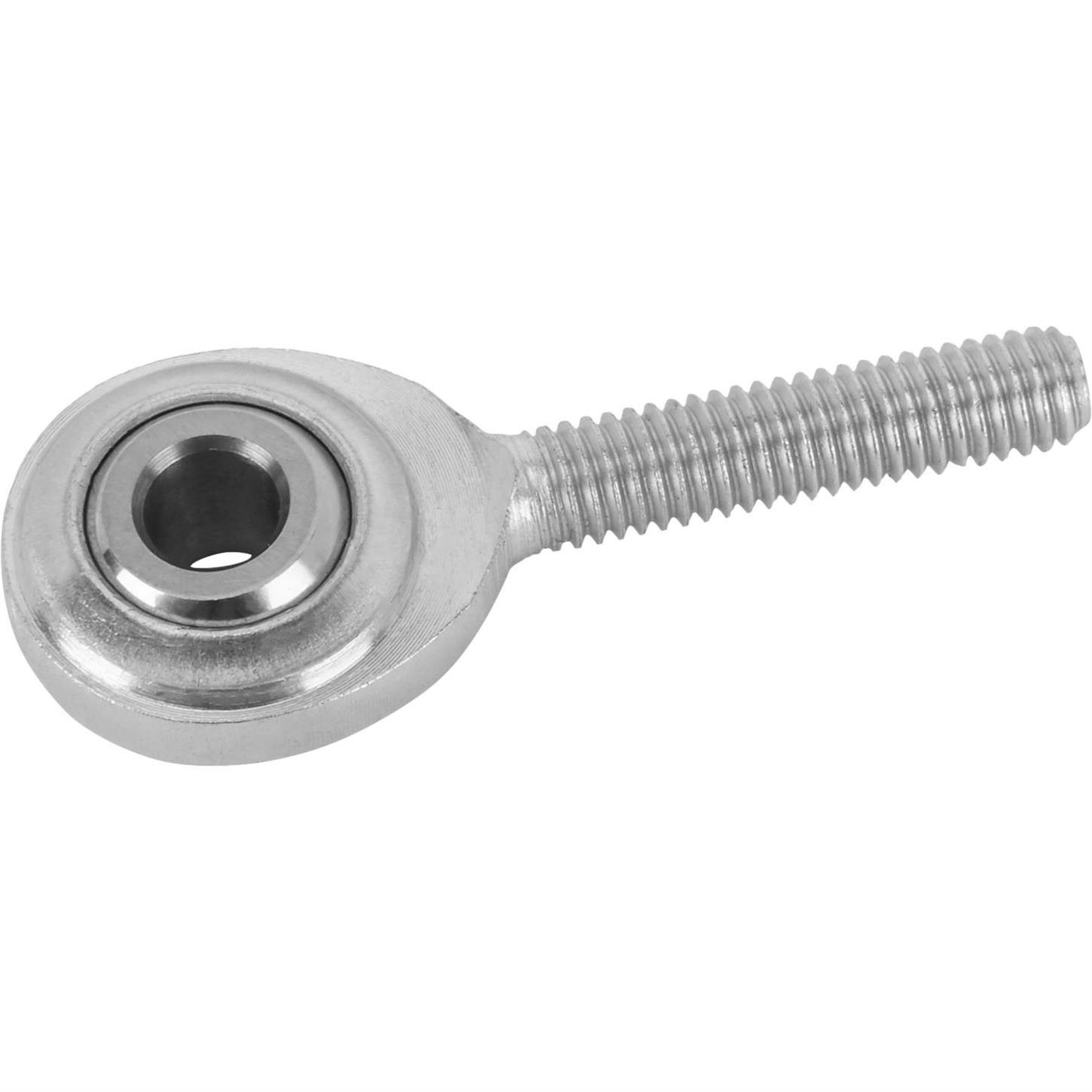

Standard Steel Heim Joint Rod Ends, 3/16 Inch (10-32) RH Male
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
$8.49
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, RH Male Thread Type, Steel, Zinc Plated
- This standard rod end is a general purpose two-piece design making it a very economical and replaceable item
- The carbon steel body and a hardened steel ball without a race provides metal to metal contact for a precise no-slop joint
- Useful for a wide variety of applications including clutch, brake, steering, and suspension components for mild to moderate horsepower applications
- 10-32 RH male rolled threads ensure strength and precision
- 20 degrees of misalignment provides a wide range of motion without binding
Key Specs
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.19" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 1750100 Details
Speedway Motors 1750100 Details
These right hand standard rod ends are a general purpose, two-piece design. They have a carbon steel body and a hardened steel ball without a race (metal to metal contact).
Applications: Clutch, brake, steering linkage, & suspension components on moderate horsepower applications.
Assembly: To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.
Speedway Motors 1750100 Specifications
Speedway Motors 1750100 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 1750100 |
| Brand | Speedway Motors |
| Thread Type | RH Male |
| Rod End Attachment | Male Threads/Eyelet |
| Thread Pitch | 3/16" (10-32) |
| Material Type | Steel |
| Hole Diameter | 0.19" |
| Rod End Style | Metal-to-metal |
| Rod End Construction | 2-piece |
| Grease Fitting | No |
| Finish | Zinc Plated |
| Color | Natural |
| Bushing Material | Steel |
| Jam Nut Included | No |
| GENERAL | |
| Sold in Quantity | Each |
Ratings & Reviews
5
6 Reviews
Customers have positively reviewed the product for its quality, usability, and practicality. They utilized the product for a variety of automotive projects, including duel carb setups, motorcycle projects, and throttle linkages. The product was lauded for its smooth operation, accurate size as described, and overall super quality. Many have commended its contribution to the successful completion of their projects. This product has confirmed its superiority among competitors, as customers have highly recommended it for further use.
Ratings & Reviews
5
6 Reviews
Customers have positively reviewed the product for its quality, usability, and practicality. They utilized the product for a variety of automotive projects, including duel carb setups, motorcycle projects, and throttle linkages. The product was lauded for its smooth operation, accurate size as described, and overall super quality. Many have commended its contribution to the successful completion of their projects. This product has confirmed its superiority among competitors, as customers have highly recommended it for further use.
5
6 reviews
5
6
4
0
3
0
2
0
1
0
Filter by Ratings
The parts worked great.
5.0
4 years ago
1959 2 door wagon.
Des Moines Iowa.
Verified
I used these heim joints on a duel carb setup.
Would Recommend
Exact size as described.
5.0
7 years ago
Larry
Chicago
Verified
Using on a motorcycle project.
Would Recommend
Would use again
5.0
9 years ago
Bob
Vernon nj
Verified
Great piece. Smooth operation. Made scoop work flawlessly.
Would Recommend
Super Quality
5.0
11 years ago
64Falcon
Canton, GA, USA
Verified
Part was just what I needed to finish project! Quality was just as described in catalog. Item worked great after installation.
Would Recommend
good fast service
5.0
11 years ago
5160turbo
oregon
Verified
After try repeatedly to thread a heim joint into a threaded tube of Speedways three 2 sbc kit I realized it was left hand thread. I called and they quickly sent the correct one by air mail. Thanks
Would Recommend
works great for throttle linkage
5.0
11 years ago
Ratrodrider
Panama City Beach, FL, USA
Verified
I use these for making throttle linkages on my 1940 PlymouthPT-105.
Would Recommend
Showing 6 of 6 reviews
