Standard 1/4 Turn Spring Plate and Stepped Springs, .200

Spring Plates

These standard spring plates are for use with 5/16" one quarter-turn fasteners and 1" springs.  Be sure to include our matching pop rivets and springs.

• For use with 1" springs (96007102)
• For use with 5/16" quarter-turn fasteners (96007111)
• Pack of 10

Springs

These 1" springs are to be used with standard or lightweight plates and mount easily with pop rivets.  They are .200" tall and are designed to be used with 5/16" quarter-turn fasteners.

• 1" springs
• .200" tall
• For use with 5/16" quarter-turn fasteners
• Pack of 10

Kit Includes

(1) Standard Quarter-Turn Fastener Spring Plates, 1" Spring, Pack/10

(1) Flat Quarter-Turn Fastener Springs, .200 x 1 Inch, 10 Pack

(1) 1/8 Inch Rivets for 1/4 Turn Plates

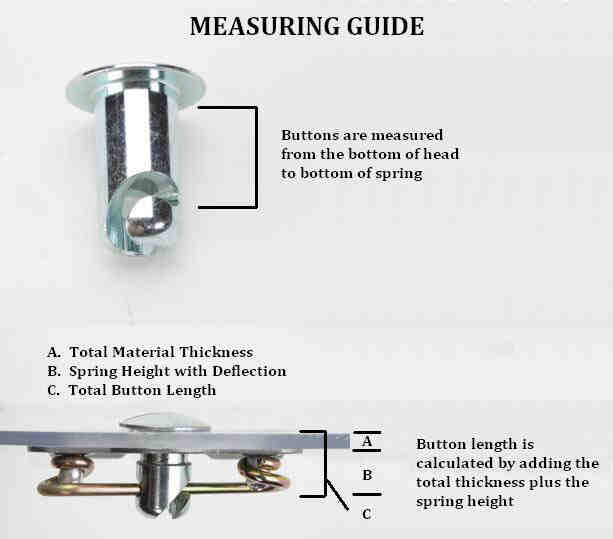

Measurement Guide (JPG)
