Stallard Radius Rod Kit

Use these complete radius rod kits designed for use with Stallard Chassis
Swedged aluminum radius rods
Tapped RH & LH for 3/8"-24 and 7/16" thread rod ends

$186.99

/each

In Stock

$190.01

Save $3.02

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Aluminum, Black

Use these complete radius rod kits designed for use with Stallard Chassis
Swedged aluminum radius rods
Tapped RH & LH for 3/8"-24 and 7/16" thread rod ends
Rod lengths of 15", 20.25" & 21.25" included
Steel fine thread jam nuts made from premium steel

Comes as a Kit

View Kit Components

See more details

Key Specs

MFG. Part #	96627308
Brand	Speedway Motors
Material Type	Aluminum

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Installation Details

Installation Tips

Precision steel rod ends provide greater strength than our "standard" rod ends. They have close tolerance and have a 3 piece medium duty rod end. Carbon steel body, 5210 precision ground ball and feature a Teflon Kevlar race. Self lubrication teflon liner to seal out dirt and debris. Shank and hole are the same size.

Applications: Clutch, Brake, Steering & Suspension Components. Quieter, Smoother, & More Durable Than 2 Piece Rod Ends. Tight Tolerance of Kevlar Race Reduces "Slop" In Steering & Suspension.

ASSEMBLY TIP:
To ease assembly, be sure to run a tap or die through the threads on chrome plated fasteners and apply an anti-seize compound to prevent galling of the threads.

Have a Question?

Call one of our U.S.-based customer service professionals.

Tech Support - Opens at NaNpm (UTC)

Speedway Motors 96627308 Details

Use these complete radius rod kits designed for use with Stallard Chassis.

Swedged aluminum radius rods
Tapped RH & LH for 3/8"-24 and 7/16" thread rod ends
Feature a black finish
Lengths of 15", 20.25" & 21.25" included
3/4" x .120 OD
3/8"-24 thread
7/16" thread
Steel fine thread jam nuts made from premium steel (zinc-coated for corrosion prevention)

Application

Tech Tip: When assembling a tube, each heim end adds approximately 1.5" to the overall length (if the heim is screwed halfway into the tube). If you have a heim on each end of the tube, the tube will be approximately three inches longer overall.

Charts

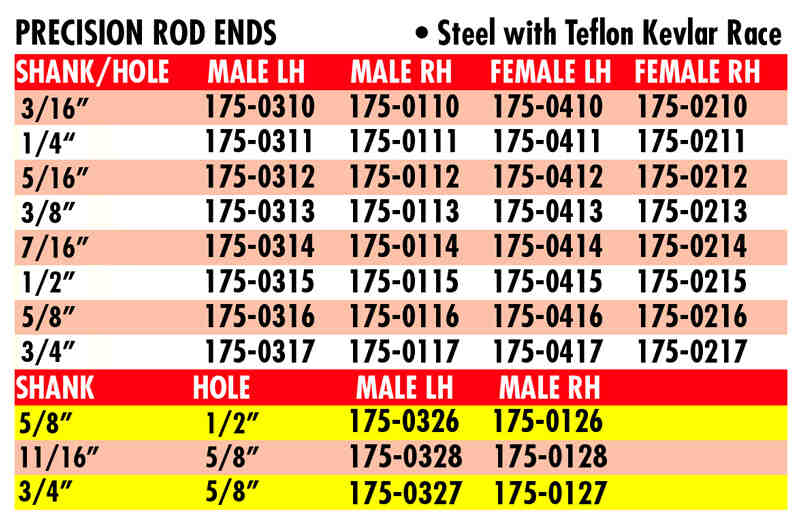

Precision Rod Ends Chart Application (GIF)

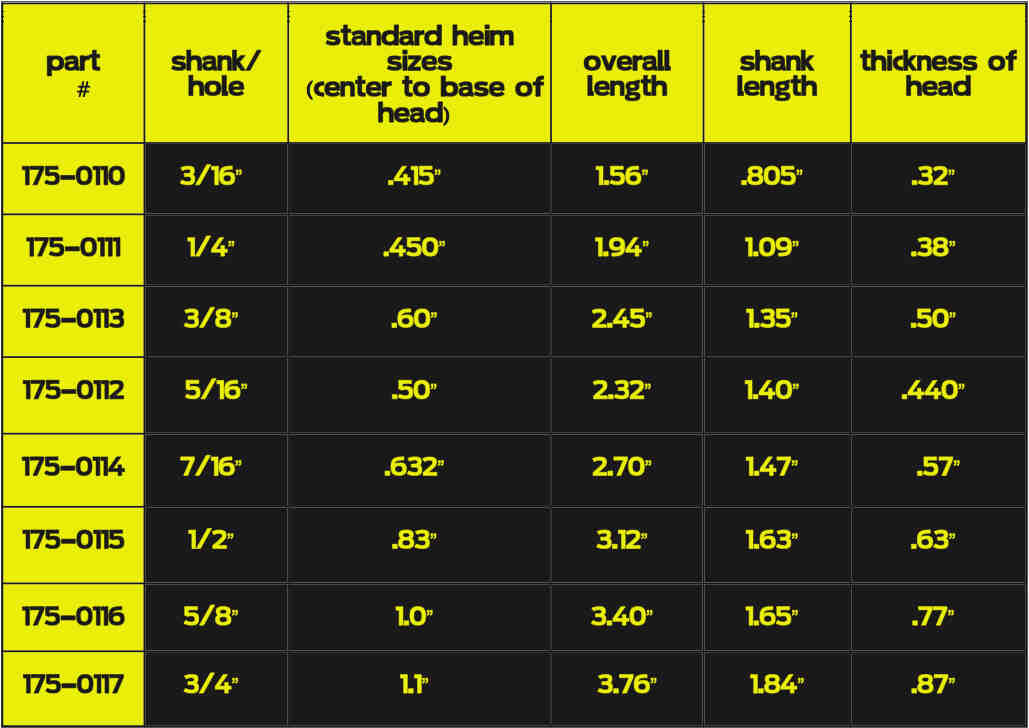

Standard Heim Sizes Chart (GIF)

Guides & Documents

Radius Rods Technical Information (96627308)

Heim Joints and Rod Ends Technical Information (1750113)

Heim Joints and Rod Ends Technical Information (1750313)

Heim Joints and Rod Ends Sizing Chart (1750114)

Heim Joints and Rod Ends Technical Information (1750314)
