Stainless Steel -3AN Brake Line, 3 Each Braided Hose Kit
Universal Fit, Stainless Steel, 0.188" Tube O.D., 40 ft. Overall Length



- Designed for conventional live axle rear suspensions
- Includes two 20 foot coils of 3/16" stainless steel line, nineteen -3 AN tube nuts, nineteen -3 AN tube sleeves
- As well as two -3 AN bulkhead tees, six -3 AN to 1/8"NPT adapters, two 90° -3 AN to 1/8" NPT adapters, one -3 AN straight bulkhead fitting, two -3 AN to 1/8" NPT female thru-frame fittings with stainless jam nuts, three -3 AN 18" braided stainless lines, and three 3/8" bulkhead nuts
- These kits are designed to use 37 degree flares only
- Do not attempt to use with standard inverted flare brake connectors, which are 45 degree
Build Your Kit
You're almost there! This kit has an option or two for you to select. Let us know which options you want for your new kit.Details
Info
Speedway Motors is again the industry leader by offering a 100% stainless steel brake line kit. We know you dont want to cut corners on something as important as the brake system. Brake fluid and moisture in the brake lines and fittings are highly corrosive and attack softer metals.
Why settle for the anodized aluminum fittings offered by other companies? We start with 3/16" stainless steel tubing of 304 grade (rated at 6000 psi) that is double annealed to allow easy flaring. Then, we offer a variety of fittings made of 303 grade semi-polished stainless for the most corrosion resistant line kit in the industry! Not all fittings are polished, but with a little elbow grease you can have beautiful brake lines.

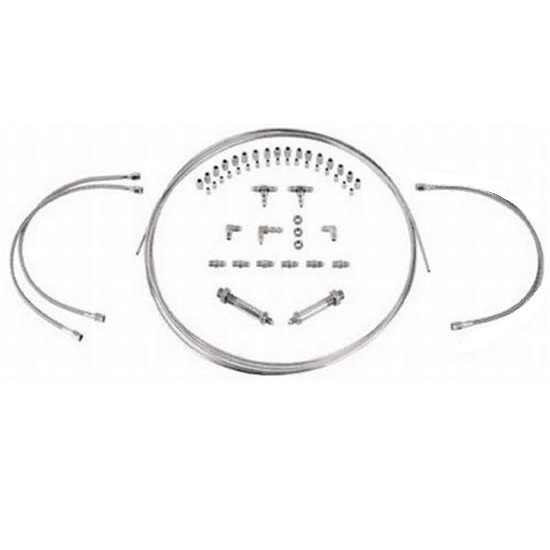

Designed for conventional live axle rear suspensions. Includes two 20 foot coils of 3/16" stainless steel line, nineteen -3 AN tube nuts, nineteen -3 AN tube sleeves, two -3 AN bulkhead tees, six -3 AN to 1/8"NPT adapters, two 90° -3 AN to 1/8" NPT adapters, one -3 AN straight bulkhead fitting, two -3 AN to 1/8" NPT female thru-frame fittings with stainless jam nuts, three -3 AN 18" braided stainless lines, and three 3/8" bulkhead nuts.
NOTE: These kits are designed to use 37 degree flares only. Do not attempt to use with standard inverted flare brake connectors, which are 45 degree.
Learn more about flaring lines for our automotive fittings by reading our tech article. The Principles of Automotive Fittings.
Item Details
For conventional live axle rearends.Notes
Charts
617-8535 Instructions (PDF)
Notes
Includes two 20.00' roll of stainless brake line, three 18.00" -3 AN stainless braided lines, and stainless fittings, tees, nuts, and bulkheads.Important Messages
- Get FREE shipping when your order includes this item and exceeds $99! Ground shipping only in the contiguous US.
What's In The Kit
-
Stainless Steel -3 AN Brake Line Kit, 3-Hose, 20 Ft. TubingPart # 6178530Qty x 1
-
Speedway Stainless Steel Brake Line, 3/16 Inch, 20 Ft. RollPart # 6178510Qty x 1
