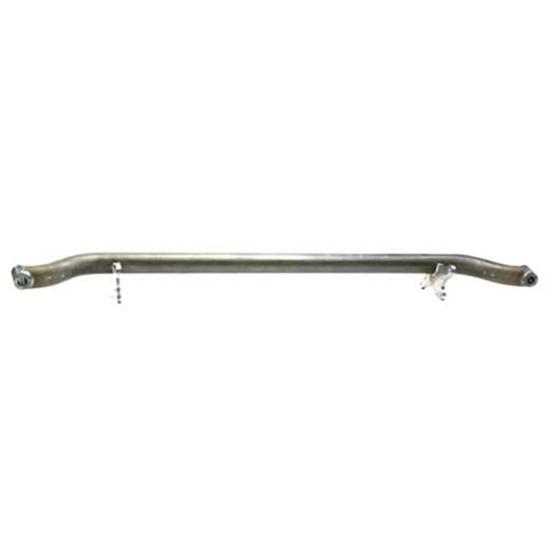

Spring Over Front Tube Axle, Ford Spindle, 6 Inch Drop, Plain
- For '37-'48 early Ford spindles
- 6" drop
- 48" kingpin centers
$508.99
/each
In Stock
Quantity
Need Help? Call to Order
Add to a list
Share
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Ford Stock Spindle Style, Dropped Axle
- For '37-'48 early Ford spindles
- 6" drop
- 48" kingpin centers
- .250" thick, 2" diameter steel tubing with Welded-on radius rod and spring brackets for 26" spring (91033026)
- Plain finish
Key Specs
| Spindle Style | Ford Stock |
| Straight Axle Style | Tube |
| Dropped Axle | Yes |
| Suspension Height Adjustment | 6 Inch Lowered |
| Tube O.D. | 2" |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91335209 Details
Speedway Motors 91335209 Details
Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles.
- Spring-over axle design
- 48" eye-to-eye
- Use with 26" spring
Charts
Specs
- Axle Bracket Thickness: 3/8"
- Axle Bracket Spacing: 5" eye to eye (outside holes)
- Spring Shackle Pivot Hole to Center of the Axle: 3-3/4"
Guides & Documents
Speedway Motors 91335209 Specifications
Speedway Motors 91335209 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91335209 |
| Brand | Speedway Motors |
| Spindle Style | Ford Stock |
| Straight Axle Style | Tube |
| Dropped Axle | Yes |
| Suspension Height Adjustment | 6 Inch Lowered |
| Tube O.D. | 2" |
| Finish | Natural |
| Material Type | Steel |
| GENERAL | |
| King Pin Centers | 48" |
| Drilled | No |
| Material Thickness | 0.250" |
| Front Leaf Spring Style | Spring-Over Axle |
| Sold in Quantity | Each |
