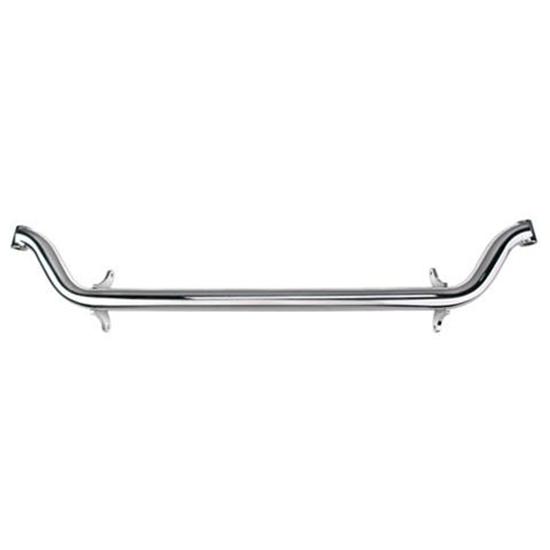

Spring Over Front Tube Axle, Ford Spindle, 6 Inch Drop, Chrome

#91335208

Spring Over Front Tube Axle, Ford Spindle, 6 Inch Drop, Chrome

Write a Review

Ask a Question

For '37-'48 early Ford spindles
6" drop spring over
48" kingpin centers

Finish:

Chrome

Plain

Out of Stock

This item is currently not available

Shop all Speedway Front Tube Axles

Product Summary

Universal Fit, Ford Stock Spindle Style, Dropped Axle

For '37-'48 early Ford spindles
6" drop spring over
48" kingpin centers
.250" thick, 2" diameter steel tubing with Welded-on radius rod and spring brackets for 26" spring (91033026)
Chrome finish

See more details

Need To Know

Need help?

855.313.9176

View the Help Center

Ineligible for Return

Contains items that cannot be returned

Details

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1937-1948 Ford style spindles.

Spring-over axle design
48" eye-to-eye
Use with 26" spring

Charts

Spring Over Suspension Image (JPG)

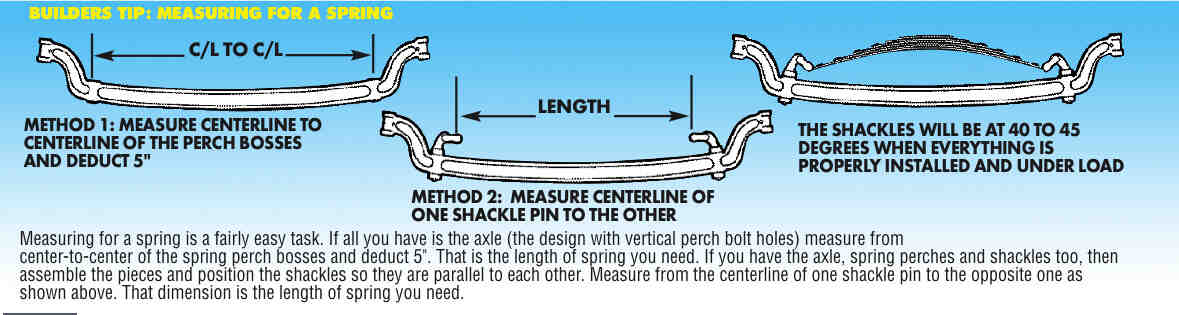

Leaf Spring Measuring Guide (JPG)

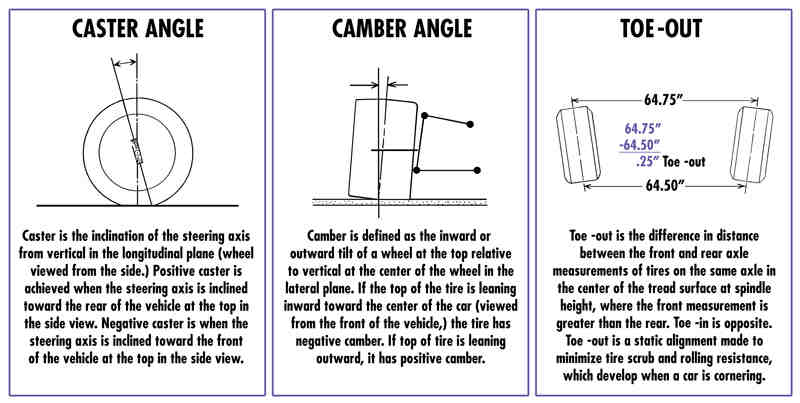

Caster Angle Illustration (GIF)

Specs

Axle Bracket Thickness: 3/8"
Axle Bracket Spacing: 5" eye to eye (outside holes)
Spring Shackle Pivot Hole to Center of the Axle: 3-3/4"

Guides & Documents

Front Spring Choices for Traditional Straight Axle Hot Rods

Solid Axle Choices for Your Traditional Hot Rod

Straight Axles Technical Information (91335208)
