Product Summary

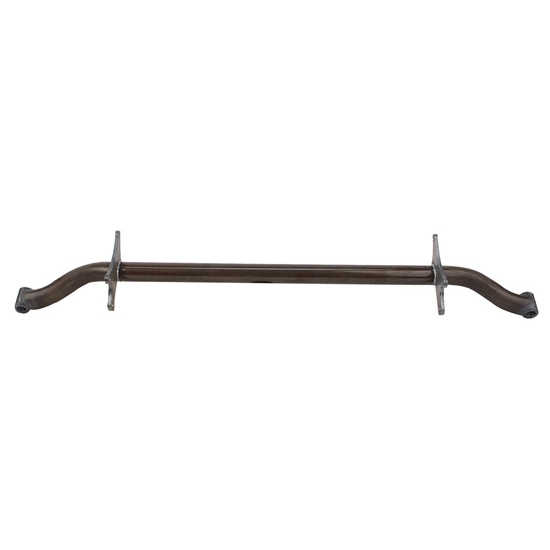

Universal Fit, Chevy/GM Stock Spindle Style, Natural

  • For '49-'54 Chevy spindles
  • 6" drop spring over
  • 48" kingpin centers
  • .250" thick, 2" diameter steel tubing with Welded-on radius rod and spring brackets for 26" spring (91033026)
  • Plain finish

Key Specs

MFG. Part #91335213
BrandSpeedway Motors
Straight Axle StyleSolid Tube
FinishNatural

Need To Know

This Product Will Ship Free

Shipping Policies & FAQs

Quick and Easy Returns

Return Policy

Details

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

  • Spring-over axle design
  • 48" eye-to-eye
  • Use with 26" spring

Charts

Specs

  • Axle Bracket Thickness:  3/8"
  • Axle Bracket Spacing:  5" eye to eye (outside holes)
  • Spring Shackle Pivot Hole to Center of the Axle:  3-3/4"

Specifications

KEY SPECS
MFG. Part #91335213
BrandSpeedway Motors
Straight Axle StyleSolid Tube
FinishNatural
GENERAL
Spindle StyleChevy/GM Stock
King Pin Centers48"
DrilledNo
Dropped AxleYes
Suspension Height Adjustment6 Inch Lowered
Tube O.D.2"
Material TypeSteel
Material Thickness0.250"
Front Leaf Spring StyleSpring-Over Axle
Sold in QuantityEach
