Spring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, Plain

#91335111

Spring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, Plain

Name: Spring Behind Front Tube Axle, Chevy Spindle, 4 Inch Drop, Plain
Brand: Speedway Motors
SKU: 91335111
Price: 570.99 USD
Availability: InStock
Rating: 5 (2 reviews)

2 Reviews

4 Questions

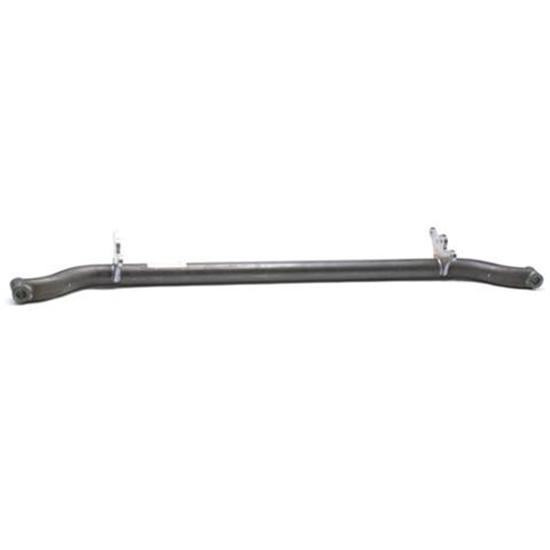

This 4" dropped tube axle is perfect for your spring behind front end on your hot rod build
Accepts 1949 to 1954 Chevy spindles which have a wide selection of brake kits and wheel bolt patterns available
Constructed from 2" diameter .250" wall thickness premium steel tubing for outstanding strength

Finish:

Plain

Chrome

$570.99

/each

In Stock

Quantity

Need Help? Call to Order

Add to a list

Select a vehicle to verify Fitment

Select Vehicle

Product Summary

Universal Fit, Chevy/GM Stock Spindle Style, Natural

This 4" dropped tube axle is perfect for your spring behind front end on your hot rod build
Accepts 1949 to 1954 Chevy spindles which have a wide selection of brake kits and wheel bolt patterns available
Constructed from 2" diameter .250" wall thickness premium steel tubing for outstanding strength
Mounts for radius rods and the spring come welded to the axle for your convenience
48" kingpin centers and is designed for use with a 26" spring

See more details

Key Specs

Spindle Style	Chevy/GM Stock
Straight Axle Style	Tube
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Tube O.D.	2"

See more specs

Need To Know

Need help?

855.313.9176

View the Help Center

Quick and Easy Returns

Return Policy

Speedway Motors 91335111 Details

Speedway Double Dropped axles are constructed from 2" x .250" wall steel tubing. They feature welded-on radius rod and spring brackets and work with 1949-1954 Chevy style spindles.

Spring-behind axle design
48" eye-to-eye
Use with 26" spring

Charts

Spring Behind Axle Illustration (GIF)

Leaf Spring Measuring Guide (JPG)

Caster Angle Illustration (GIF)

Specs

Axle Bracket Thickness: 3/8"
Axle Bracket Spacing: 5" eye to eye (outside holes)

Guides & Documents

Front Spring Choices for Traditional Straight Axle Hot Rods

Solid Axle Choices for Your Traditional Hot Rod

Straight Axles Technical Information (91335111)

CA WARNING:

Can expose you to lead, a carcinogen and reproductive toxicant. See www.P65Warnings.ca.gov

Speedway Motors 91335111 Specifications

KEY SPECS
MFG. Part #	91335111
Brand	Speedway Motors
Spindle Style	Chevy/GM Stock
Straight Axle Style	Tube
Dropped Axle	Yes
Suspension Height Adjustment	4 Inch Lowered
Tube O.D.	2"
Finish	Natural
Material Type	Steel

GENERAL
King Pin Centers	48"
Drilled	No
Material Thickness	0.250"
Front Leaf Spring Style	Spring-Behind Axle
Perch Centers	26.00"
Sold in Quantity	Each

Ratings & Reviews

2 Reviews

Overall Assessment

Customers praise the product's impressive quality and practicality. They report the product is exceptionally simple to use, highlighting its usability as a major plus. Many customers admire the product's superior material quality which distinguishes it from competitors. Safety is also a confirmed quality, commended by users. The product is widely recommended, mainly due to these features. It is particularly appreciated in progress-oriented tasks, like the 31 Plymouth project. It consistently outperforms competitors, providing clear and factual performance satisfaction.

Write A Review

2 reviews

Filter by Ratings

Sort Reviews

Works great

5.0

5 years ago

Work in progress

Verified

31 plymouth in progress

Would Recommend

Great product!

5.0

8 years ago

Overtime kid

Stonewall, La.

Verified

Totally easy and great product

Would Recommend

Showing 2 of 2 reviews

Questions & Answers

4 Questions • 4 Answers

Sort Questions

Does this axle use lock pin for king pin? I don't see hole for it.

by Patrick

• 9 years ago

1 answer

View Answer

What is the total vehicle weight for this axle

by Brian the newbie

• 11 years ago

1 answer

View Answer

What is the camber angle when used with 910-32100 Chevy spindle kit? Can this axle be used with coil over shock units mounted in the center of the three holes on the brackets instead of a transverse leaf spring?

by carcrazy

• 12 years ago

1 answer

View Answer

What is the internal diameter of the axle boss? What size should the kingpin be for this axle?

• 15 years ago

1 answer

View Answer

4 of 4 questions shown
