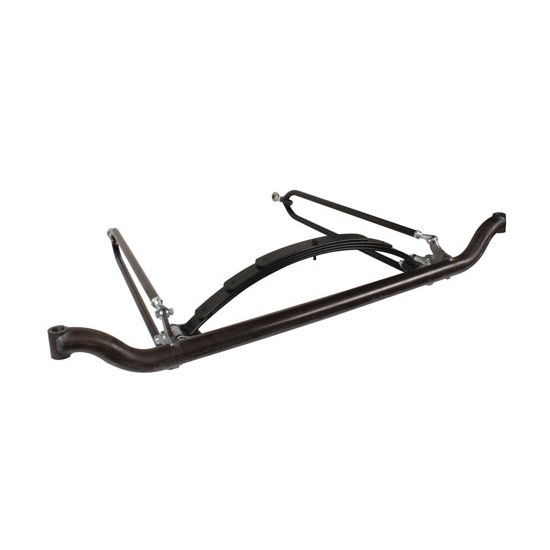

Spring-Behind 6 Inch Drop Tube Axle Front End for Ford Spindles, Plain
- 37-'48 Ford Spindles
- Max car weight 2500 lbs
- Plain steel
$793.99
/kit
In Stock
$809.93
Save $15.94
Quantity
Need Help? Call to Order
Add to a list
Select a vehicle to verify Fitment
Select Vehicle
Product Summary
Universal Fit, Straight Axle Front Suspension Type
- 37-'48 Ford Spindles
- Max car weight 2500 lbs
- Plain steel
- Two 1-3/4" spring shackles w/ nylon bushings, two spring pivots, 26" 4-leaf spring w/ nylon buttons, two axle brackets, 48" eye-to-eye 6" dropped tube axle, two 27" radius rods, four clevises with jam nuts and bolts, two 5/8" Heims with jam nuts
- Spring U-bolts and frame mounts sold separately
Comes as a Kit
View Kit Components
Key Specs
| MFG. Part # | 91339008 |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 6 Inch Lowered |
| Control Arm Style | Radius Rod |
| Shock Type | Not Included |
Need To Know
Need help?
855.313.9176Quick and Easy Returns
Return PolicySpeedway Motors 91339008 Details
Speedway Motors 91339008 Details
Kit includes:
- Two 1-3/4" spring shackles w/ nylon bushings
- Two spring pivots
- 26" 4-leaf spring w/ nylon buttons
- Two axle brackets
- Tube axle, 48" eye-to-eye, 6" dropped
- Two 27" radius rods
- Four clevises with jam nuts and bolts
- Two 5/8" Heims with jam nuts
- Spring U-bolts sold separately
Charts

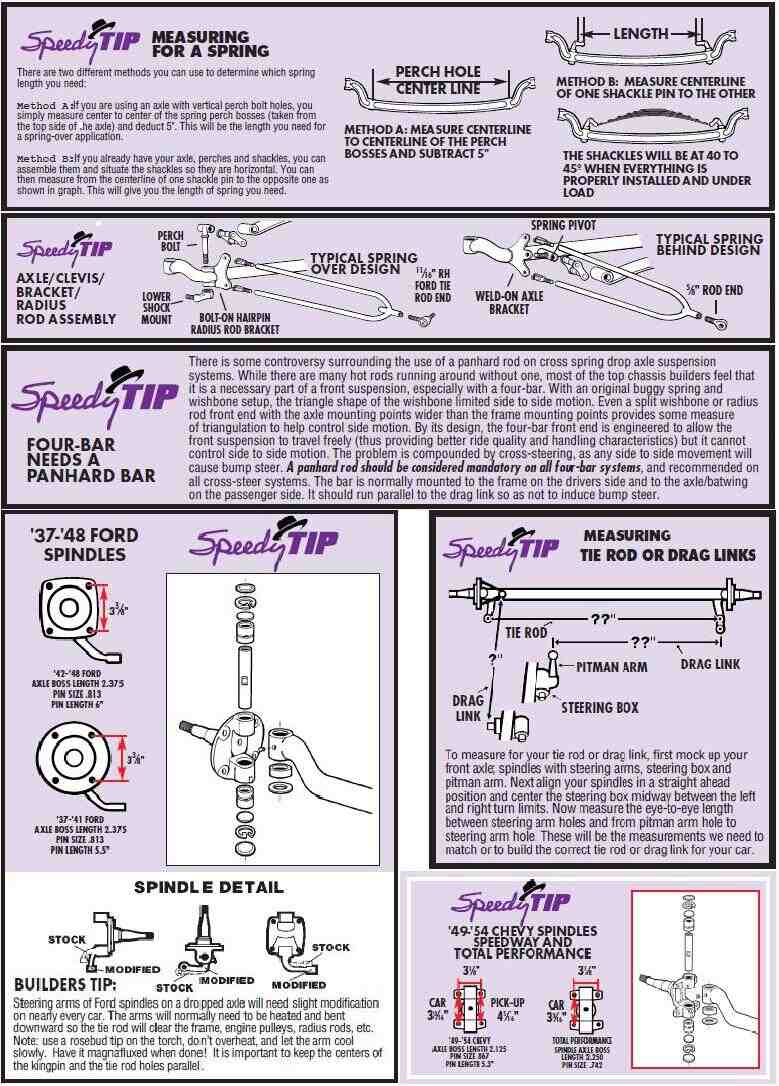

Guides & Documents
Speedway Motors 91339008 Specifications
Speedway Motors 91339008 Specifications
| KEY SPECS | |
|---|---|
| MFG. Part # | 91339008 |
| Brand | Speedway Motors |
| Front Suspension Type | Straight Axle |
| Suspension Height Adjustment | 6 Inch Lowered |
| Control Arm Style | Radius Rod |
| Shock Type | Not Included |
| Spring Type | Leaf Spring |
| Finish | Natural |
| Rotor Diameter | Not Included |
| Spindle Style | Ford Custom |
| Dropped Spindles | No |
| Dropped Axle | Yes |
| Dropped Control Arms | No |
| Front Leaf Spring Style | Spring-Behind Axle |
| Spindles Included | No |
| Brakes Included | No |
| Steering Included | No |
| Caliper Pistons | Single |
| Caliper Finish | Natural |
| Welding Required | No |
| GENERAL | |
| Straight Axle Style | Tube |
Ratings & Reviews
4.7
3 Reviews
Customers commend the product for its high quality and great value. Notable qualities include well-done tig welds, contributing to its overall robustness. The added spindles and brake kit are also praised. Users appreciate its practicality as an addition to their model A coupe. One usability issue mentioned is the challenge in assembly due to lack of instructions. Some modifications may also be required for optimal use with the 6 inch drop. Nevertheless, compared to competitors' options, it is considered a superior, worthwhile investment.
Ratings & Reviews
4.7
3 Reviews
Customers commend the product for its high quality and great value. Notable qualities include well-done tig welds, contributing to its overall robustness. The added spindles and brake kit are also praised. Users appreciate its practicality as an addition to their model A coupe. One usability issue mentioned is the challenge in assembly due to lack of instructions. Some modifications may also be required for optimal use with the 6 inch drop. Nevertheless, compared to competitors' options, it is considered a superior, worthwhile investment.
4.7
3 reviews
5
2
4
1
3
0
2
0
1
0
Filter by Ratings
Awesome product
5.0
10 years ago
Timmay
Woodbury, NJ
Verified
Great product and a great value, but the lack of instructions really makes it difficult to assemble correctly
Would Recommend
very nice
5.0
11 years ago
capt59
Oklahoma City, OK, USA
Verified
very nice product. the tig welds are incredible. just got the spindles and brake kit. also a high quality product! all in all will be a nice addition to my model a coupe.
Would Recommend
Nice
4.0
16 years ago
Rum Runner
Norfolk NE
Well its just what it says. The only problem with the 6 inch drop is you eather have to run your tierod on the front side or do mods to the brackest to clear the radius rods.
Would Recommend
Showing 3 of 3 reviews
Questions & Answers
6 Questions • 8 Answers
Questions & Answers
6 Questions • 8 Answers
Is it possible to make this a "spring in front" axle, or are the mounts already angled for caster?
by 29EssexRat
• 8 years ago
1 answer
View Answer
what is the height at the center of the leaf spring between the 2 spring eyes. So if I were to stand the leaf on both eyes and measure the height from the table to the center of the leaf ....would be appreciated to know that info.....thanks in advance
by Dan
• 9 years ago
1 answer
View Answer
Is this kit available with your split wishbones?
by Chris
• 10 years ago
1 answer
View Answer
will this work on any of your T frames
by Marc999
• 13 years ago
1 answer
View Answer
Shocks on 6" spring behind axle?? i just purchased the 6" spring behind axle kit from you guys. how am i supposed to hook up shocks to the front end? hopefully you guys have a weld on/ bolt on piece i can purchase. thanks, Andy
by AndyAnderson
• 13 years ago
2 answers
View Answers
What is the kingpin inclination on these axles. Thanks
by kerry
• 14 years ago
2 answers
View Answers
6 of 6 questions shown
